Extra Compact Red Exit Light Combo ALL LED Swivel Head

Base Code: COMBOC-R

Items marked FAST SHIP typically ship same day if order is placed before noon

Extra Compact Red Exit Light Combo ALL LED Swivel Head
Processing...

Get Help

Alternative Product: COMBOC-G
COMBOJR-R

Qty
A compact emergency light and exit sign combination. This 2-in-1 unit is ideal for small spaces. The round swivel lamp heads are highly adjustable to suit your needs. This adjustability makes it one of a few combos that can be side mounted! It can also be ceiling and wall-mounted. This exit sign operates 120/277 VAC. Includes a lightweight, maintenance-free NiCad battery, providing 90 minutes of emergency power in case of a power failure. Two “EXIT” faceplates and a blank faceplate are provided. The faceplates have two knock-out chevrons for easy customization. The Remote Head Capable model allows for additional 3.6V remote lamp heads to be connected and wired at a different location where additional lighting is needed – See“Remote Head Capable” section for more information.

Compatible Battery:  BAA-36900

Compatible Remote Head(s): RHP-L-3V, RHB-L-MV, RHB-WPL-MV
To use with remote heads, please change the Operation Type above to Battery Backup + Remote Head Capable to ensure compatibility. Code at time of checkout must read: COMBOC-R-W-RH.

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • All LED light! No SLA batteries, uses long lasting NiCads that are very low maintenance
  • Fully adjustable swivel-mount LED lamp heads each equipped with white LEDs
  • Universal mounting canopy for top installation, flush mount to wall, or side mount
  • Lightweight with snap-together construction for easy installation
  • LED status indicator
  • Injection molded, impact- and scratch-resistant, corrosion-proof, UL 94 V-0 flame retardant housing
  • Push-to-test switch
  • Universal transformer for 120/277 VAC operation

Specifications

Dimensions
Height7.48"
Depth1.73"
Length11.61"
Weight4.00 lb

What's included?

  • RED LED Combo Exit Sign / Emergency Light (Lamp Heads Inside Unit)
  • Two "EXIT" Faceplates (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • NiCad Battery - Must connect the battery after installation

Construction

The COMBOC Comob Exit Sign series is constructed from injection molded, impact- and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard.

Illumination

Uses two 1W SMT LED lamp heads. Lamp heads are on track-andswivel guides. Heads are moveable from side to top of the unit for a wider area of coverage pipe.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The COMBOC Comob Exit Sign series is equipped with a maintenance-free 3.6V 1000mAh (2000mAh for Remote Heada Capable Units) NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 32°F (10°C) to 104°F (40°C).

Operational Temperature

Temperature Ratings
Standard Option32°F to 104°F

Photometrics

Total Luminaire Lumens : 160

Download .IES File

Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 16ft for a 3ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

Extra Compact Red Exit Light Combo ALL LED Swivel Head Photometrics

Remote Head Capable Option

The remote head capability option allows the COMBOC unit to supply power to up to two additional 3.6V LED remote heads. The unit can supply power to either 2 single head remote lamps or 1 double head remote lamp. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The COMBOC Comob Exit Sign series is suitable for wall, side or ceiling installation via included mounting-plate. Snap together design allows for quick and easy installation.


Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

Dimensions

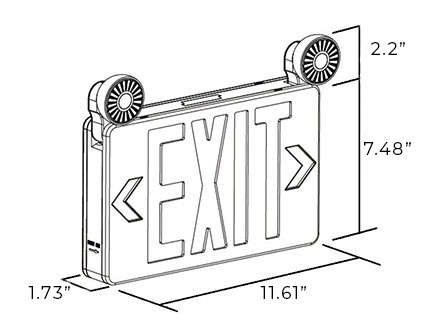

Extra Compact Red Exit Light Combo ALL LED Swivel Head Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Papi Chulo • 12/20/2018, 11:43:54 AM Can the lights be reversed to shine behind the unit?
A Exit Light Co. Yes! The lights are reversible. They can be flipped around to illuminate behind the unit.
Q Azeez • 06/05/2019, 12:14:44 PM Can the unit be mounted on a wall so it project perpendicular to the wall?
A Exit Light Co. The ELCCOMBOC-R is designed to mount from the top, side or flush to the wall. So yes this can be mounted perpendicularly.
Q Anthony Molinaro • 06/22/2019, 10:36:03 AM Does the exit sign stay illuminated. When the lights are on in use.
A Exit Light Co. The word EXIT will always be illuminated. When there is a power outage and the unit switches to the battery back up, the emergency lights will turn on and the word EXIT will remain illuminated for a minimum of 90 minutes.
Q Art deWaard • 02/08/2021, 3:40:31 PM To test the unit can that be done wih a remote (like a TV remote)
A Exit Light Co. The COMBOC-R combo exit sign does not offer a remote control to test the unit. You can find Self-Testing combo exit signs on our site that will automatically test themselves.
Q Lynnmarie • 09/09/2021, 10:15:58 AM Is this battery operated only
A Exit Light Co. The COMBOC-R is not battery operated. It utilizes a battery in case of a power failure, the battery will kick in and power the sign. However, the sign needs to be hardwired into your building power supply.
Q mike richardson • 10/29/2021, 2:03:46 AM on the video, he opened the comboc-r from the top of the unit. can it be opened from the bottom? my lights now are ceiling mounted, which means i need to be able to open it up from the bottom so it does not have to be removed from the ceiling for maintenance or a new battery. thanks in advance.
A Exit Light Co. Thank you for the question. The COMBOC can be opened from both sides. In the video, the unit was opened from the top for easier access, however, both ways are acceptable.
Q DAVE LINN • 05/25/2023, 6:15:47 PM Do you by chance have a 3d model of the Exit sign? Step file? Thanks, Dave davel@abs-ks.com
A Exit Light Co. No, we do not have a 3D model or the Step File.
Q Ed Siwiec • 08/23/2023, 11:13:43 AM Can the the remote operation be used to power existing remote lights which are not LED?
A Exit Light Co. We do not carry a combo unit that we recommend using to power a non-LED remote head.
Q Joshua Nelsen • 01/03/2024, 4:47:14 PM I am wondering what the country of origin is for this light. Please let me know if you can Thank you, Joshua Nelsen
A Exit Light Co. This unit is produced in China.
