Steel Housing LED Emergency Light | 3 Heads Lamps | UL & NYC Approved

Base Code: EL-STLED

Items marked FAST SHIP typically ship same day if order is placed before noon

Steel Housing LED Emergency Light | 3 Heads Lamps | UL & NYC Approved
Processing...

Lead Time: FAST SHIP

Qty

An efficient and secure steel housing emergency light with ABS thermoplastic LED lamp heads approved for NYC installations. Available in both white and black housing.

Compatible Battery:

White Battery Backup: 9.6V 1000mAh

White and Black Self-Testing: 3.6V 1600mAh

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Approved for New York City Code requirements
  • Rugged 20 gauge steel housing and ABS thermoplastic lamp heads
  • Universal 120/277 VAC input
  • Adjustable LED lamp heads
  • Brown-out protection
  • Automatic low voltage disconnect (LVD)
  • Push-to-test switch
  • Charge rate / power-on indicator light

Previous Product Codes: EL-STLED

Specifications

Dimensions (May Vary by Model)
Height9.75 - 13.5"
Depth2.5-.75"
Length12 - 12.5"
Weight10.00 lb

What's included?

  • Steel NYC Approved Emergency Light
  • LED Lamp Heads
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)

Construction

The EL-STLED Steel Emergency Light is contructed from powder-coated 20-gauge steel with injection-molded thermoplastic heads. White housing is standard and black housing is available.

Illumination

The EL-STLED New York City Approved Emergency Light is designed with adjustable LED lamps. High-performance smooth metal reflector and glass lens for optimal light distribution.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EL-STLED series is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Battery Replacement - 3.6V 1600mAh.

Operational Temperature

Temperature Ratings
Standard Option50°F to 104°F

Photometrics

Total Luminaire Lumens : 330lm
Input Wattage: 2.43W
Input Voltage: 11.02V
Amps: .22
Color Temperature: 6200K

Download .IES File

Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 35ft for a 3ft path of egress.

Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 30ft for a 3ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

Steel Housing LED Emergency Light | 3 Heads Lamps | UL & NYC Approved Photometrics

Self-Testing Option

Continuously monitors the AC power, battery supply voltage, emergency lamp and charging circuit. The multi-color LED indicator light will indicate failure and adjust when it has been corrected. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.

Electrical Components

Universal voltage input 120-277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The EL-STLED is suitable for wall installation. Knockouts are located on the back of the unit for easy mounting configurations.

Mounting Configurations   Mounting Configurations Explained

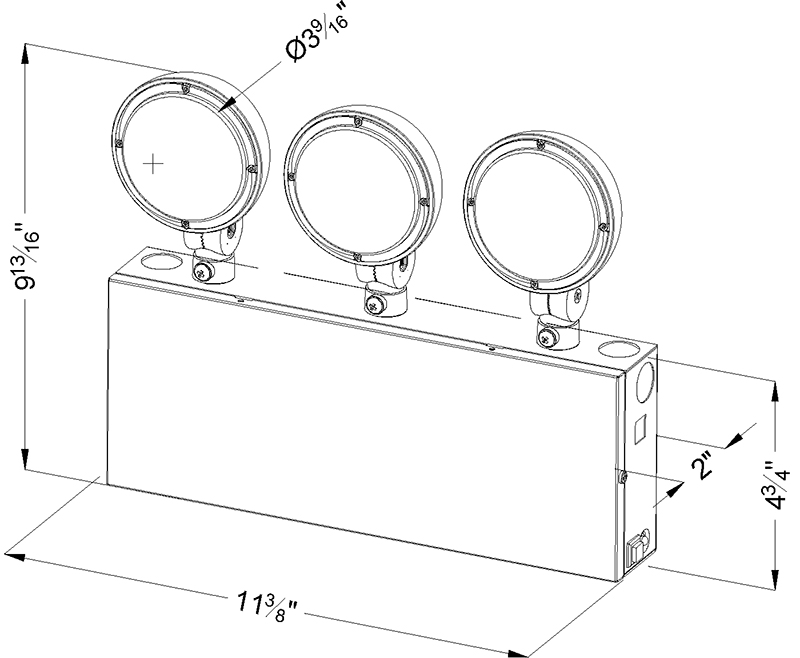

Dimensions

Steel Housing LED Emergency Light | 3 Heads Lamps | UL & NYC Approved Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Tim McGhee • 01/09/2019, 3:48:34 PM im curious about the maximum recommended height on these units?
A Exit Light Co. These units are rated at the recommended mounting height of 7.5 ft.
Q Gary Bowling • 01/15/2019, 10:38:31 AM Concerning your Steel NYC LED Emergency Light | 2 Head what is the wattage of the LED lamps
A Exit Light Co. Hello! Each bulb uses less than 2 watts.
Q Tyler Spier • 03/01/2019, 2:46:21 PM Is this unit able to support a remote head or two?
A Exit Light Co. This unit is not remote head capable.
Q john prather • 11/20/2019, 4:12:04 PM does this come in another color
A Exit Light Co. The EL-STLED is only available in white.
Q Mark boyington • 12/25/2019, 11:50:35 AM Are the light heads adjustable for direction?
A Exit Light Co. The heads are adjustable and can swivel for a wider range of coverage.
Q Roman • 07/20/2020, 1:54:41 AM What is required distance between the emergency backup lights.
A Exit Light Co. We recommend checking with your local fire marshal for this information.
Q Steven carter • 07/20/2020, 7:41:00 AM I need a em light mounting @ 24’
A Exit Light Co. Unfortunately we do not carry any fixtures rated at a mounting height of 24ft.
Q Joseph Gulotta • 09/01/2020, 7:56:03 PM can a plug be installed by the company so the light can be plugged into an outlet. Would this still be code in NYC?
A Exit Light Co. This unit does not come with a 3ft Cord option.
Q Mumtaz Hussain • 11/13/2021, 11:26:04 AM How do we know that battery is dead or the electrical supply is missing
A Exit Light Co. Be sure to connect the battery when you install your unit. The unit is shipped to you with the battery disconnected so that it is not drained while in transit to you. Check the AC indicator light. If it is on, then you know that electrical power is reaching your unit. Once the battery is connected and allowed at least 48 hours to charge, then press the test button. This will interrupt the electricity coming into the unit and force it to operate on battery backup power.
Q mike b • 12/22/2023, 10:00:33 AM Does the unit have a knockout hole on the Left upper side as well as the right the picture only shows one on the right hand side
A Exit Light Co. The EL-STLED unit has knockouts on both the right and left side.
