Indoor / Outdoor Decorative Emergency Light

Base Code: EL-XD

Items marked FAST SHIP typically ship same day if order is placed before noon

Indoor / Outdoor Decorative Emergency Light
Processing...
$130.00

Lead Time: FAST SHIP

Qty

Contemporary, low-profile architectural emergency egress light. Durable die cast aluminum housing provides both an attractive and dependable egress lighting that complements any exterior design. Also a great choice for cold, damp, or wet environments.

Housing available in dark bronze, white or black (additional costs may apply)
This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL924, NFPA70, NFPA101, NEC700.16 and OSHA
  • Listed for damp or wet location
  • Die cast aluminum housing
  • UV Stable polycarbonate lens and mirrored reflector
  • UL94-5VA Flame rating on polycarbonate
  • 6000k Color Temperature
  • Universal transformer for 120 or 277 VAC operation (60 Hz)
  • Wall or ceiling mount with quick connect mount
  • Optional cold weather package: -22°F to 122°F
  • Maintenance-free battery
  • Low voltage disconnect (LVD)
  • Charge rate / power on indicator

Previous Product Codes: ELX-D

Specifications

Dimensions
Width6.56"
Height10.5"
Depth3.62"
Weight6.00 lb

What's included?

  • Dark Bronze, White, or Black Indoor/Outdoor LED Light
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)

Construction

The EL-XD light is constructed from premium die cast aluminum components and is available in three colors (Bronze, Black, and White).

Illumination

The EL-XD Light series is designed with super bright 12W COB LEDs. 1000lm output in Normal Light Mode and 190lm output in Emergency Light mode.

Battery - Battery Backup

The EL-XD Light offers a long life maintenance-free 4.8V NiCad battery. Internal solid-state transfer switch automatically connects te internal battery to LED board for a minumum 90 minute emergency operation.

Operational Temperature

Temperature Ratings
Series Temperature
Standard Option 32°F to 104°F
Expanded Temperature Rating-22°F to 122°F

Photometrics

Total Luminaire Lumens :
1286lm in General Light Mode
350lm in Emergency Mode
Input Wattage: 4.5
Input Voltage: 4.8V
Amps: 40

Download .IES File

Electrical Components

120/277VAC dual primary 60Hz operation. Standard unit includes G2 self test/diagnostics. Offers field-selectable wiring that allows for AC operation of unit to be controlled using a wall-switch, photocell, or other switching mechanisim (switch mechanisim not included).

Installation

The EL-XD Light has a universal knockout pattern located on the back of the plate for easy wall mounting. Also has a threaded opening at the top for conduit mounting.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

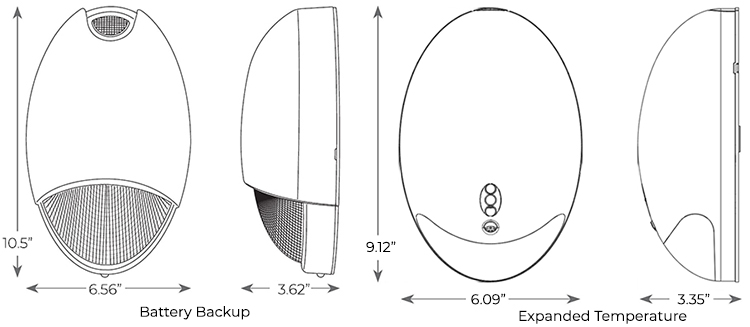

Dimensions

Indoor / Outdoor Decorative Emergency Light Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Deborah • 03/18/2019, 3:35:09 PM Can this be wired as a normal light fixture that operates on a photocell to provide exterior lighting and be wired to serve as an emergency light if power is lost?
A Exit Light Co. Field-selectable wiring allows for AC operation of unit to be controlled using a wall-switch, photocell or other switching mechanism
Q Yaniv Glikman • 08/17/2023, 10:07:18 AM do you have this item in stock ? delivery time for this item?
A Exit Light Co. Yes, these items are in stock and ready to ship. Please contact us to get a ETA to your zip code.
