Commercial Lighting | Strip Fixture 8 ft - Strip Fixture
Base Code: ES-LS-L8-S1-WH
Items marked FAST SHIP typically ship same day if order is placed before noon
$70.00
Full-length coverage, without the high-bay price tag.
The 8-foot Strip Fixture covers long bays and rows — hallways, aisles, mechanical mezzanines — at 60/70/80W, without stepping up to a full high bay housing or price.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Features
- Field-selectable wattage (60/70/80W)
- Selectable CCT
- Emergency driver compatible
- Sensor ready
- Surface, suspended, or chain mount
Ideal Applications
- Stockrooms
- Mechanical mezzanines
- Garages
- Storage areas
- Light industrial
Mounting Options
- Surface mount
- Suspended mount
- Chain mount
Features
- Field-selectable wattage (60/70/80W)
- Selectable CCT
- Emergency driver compatible
- Sensor ready
- Surface, suspended, or chain mount
- Stockrooms
- Mechanical mezzanines
- Garages
- Storage areas
- Light industrial
- Surface mount
- Suspended mount
- Chain mount
Product Description
The 8-foot Strip Fixture covers long bays and rows — hallways, aisles, mechanical mezzanines — at 60/70/80W, without stepping up to a full high bay housing or price.
Key Features
Ideal Applications
Mounting Options
Specifications
| Dimensions (May Vary by Model) | |
| Weight | 1.00 lb |
Construction
Durable commercial-grade iron housing with a white finish and frosted polycarbonate diffuser. The low-profile design provides clean, uniform illumination and is rated for use in damp locations.
Illumination
The Essential Series Strip Fixture features field-selectable wattage and selectable color temperatures of 3000K, 4000K, or 5000K. Its energy-efficient LED system delivers up to 145 lumens per watt with a CRI greater than 80.
Emergency Operation
Optional emergency drivers are available to provide backup illumination during a power failure. The correct emergency driver must be selected according to the fixture length and installed in the field.
Battery - Battery Backup
EB-09-YH36A300 Emergency DriverOperational Temperature
Without sensor and emergency driver: -4°F to 122°F
With sensor and emergency driver: 32°F to 104°F

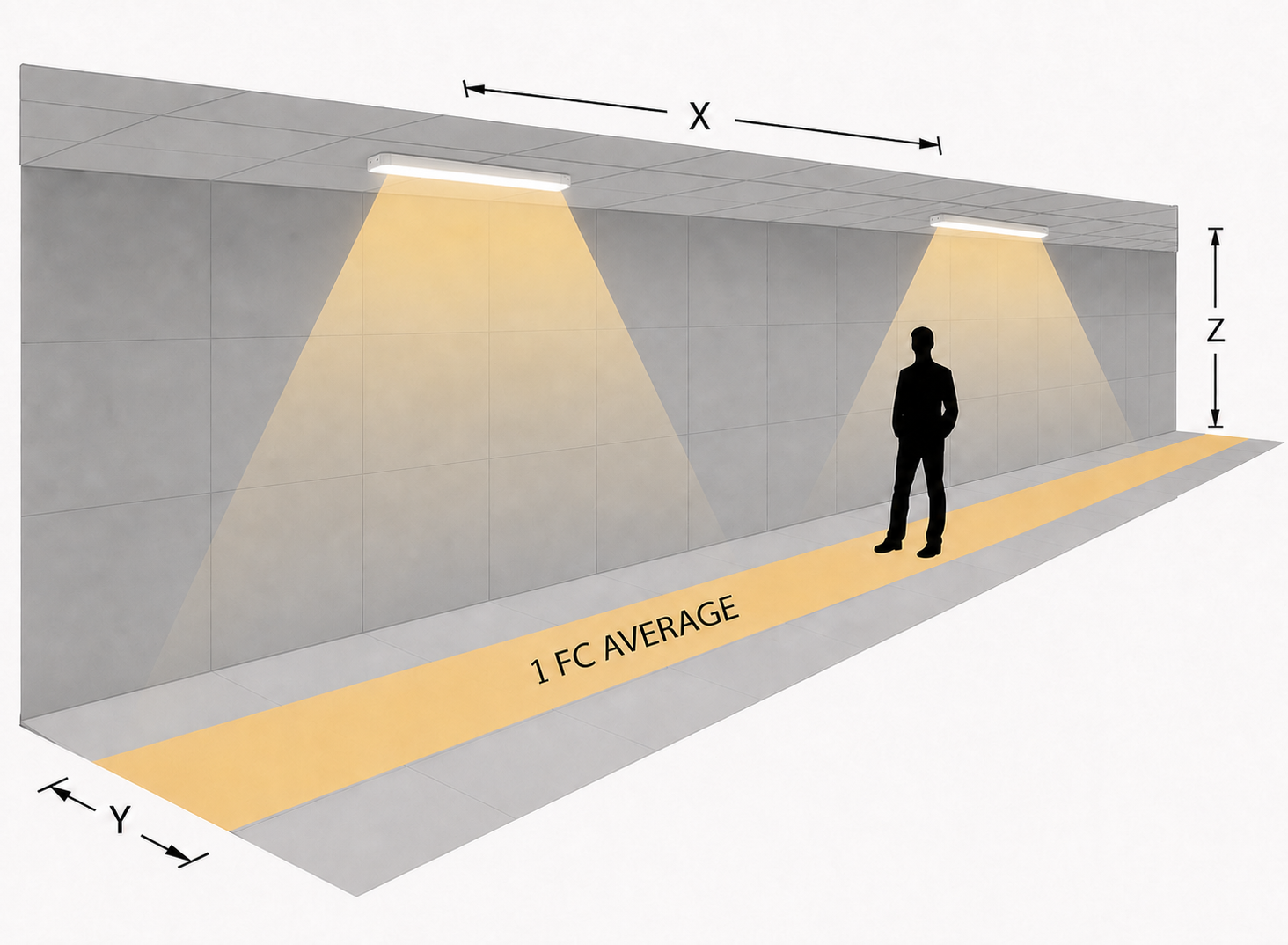

Photometrics
Total Luminaire Lumens : 8,880 / 10,360 / 11,840 lm
Electrical Components
The detailed electrical specifications list a 120-277V, 50/60Hz input range. The fixture supports seamless 0-10V dimming and features a power factor of at least 0.9, maximum THD of 20%, driver efficiency of at least 87%, and integrated driver surge protection.
Electrical Specifications
Installation
Suitable for direct surface mounting or suspended installation. Optional suspension and connection kits are available for all three fixture lengths. Ideal for offices, hallways, utility rooms, workshops, storage areas, and other commercial applications.
