Commercial Lighting | Troffer 2x2 - Troffer
Base Code: ES-TR-22-S1-WH
Items marked FAST SHIP typically ship same day if order is placed before noon
$55.00
The grid ceiling standard, updated.
A 2×2 recessed troffer built for the standard drop-ceiling grid found in most offices, schools, and municipal buildings.
Field-selectable wattage and five CCT options let it cover a range of room types from one part number, at up to 150 lm/W.
LED Lighting
This product uses energy efficient and long lasting LED's.
Features
- Field-selectable wattage (15/18/25/30W)
- Selectable CCT (5 options)
- High efficacy (150 lm/W)
- Smooth dimming
- Sensor ready
Ideal Applications
- Offices
- Schools
- Municipal buildings
- Healthcare
Mounting Options
- Grid ceiling
- Recessed drywall
- Surface mounting
Features
- Field-selectable wattage (15/18/25/30W)
- Selectable CCT (5 options)
- High efficacy (150 lm/W)
- Smooth dimming
- Sensor ready
- Offices
- Schools
- Municipal buildings
- Healthcare
- Grid ceiling
- Recessed drywall
- Surface mounting
Product Description
A 2×2 recessed troffer built for the standard drop-ceiling grid found in most offices, schools, and municipal buildings.
Field-selectable wattage and five CCT options let it cover a range of room types from one part number, at up to 150 lm/W.
Key Features
Ideal Applications
Mounting Options
Specifications
| Dimensions (May Vary by Model) | |
| Weight | 1.00 lb |
Construction
Durable sheet-metal housing with a white finish and frosted center-basket lens. The fixture provides soft, low-glare illumination with a clean architectural appearance. It is IC rated and UL certified for use in damp locations.
Illumination
The Essential Series Center Basket Troffer features field-selectable wattage and five selectable color temperatures: 3000K, 3500K, 4000K, 5000K, and 6500K. Its energy-efficient LED system delivers up to 150 lumens per watt with a CRI greater than 80.
Emergency Operation
Both fixture sizes are available with a factory-installed emergency driver. The emergency-equipped model must be selected when ordering.
Battery - Battery Backup
2×2 Troffer with factory-installed emergency driver:ES-TR-22-S1-FEM-WH
Operational Temperature
Temperature Rating: -4°F to 122°F (-20°C to 50°C)

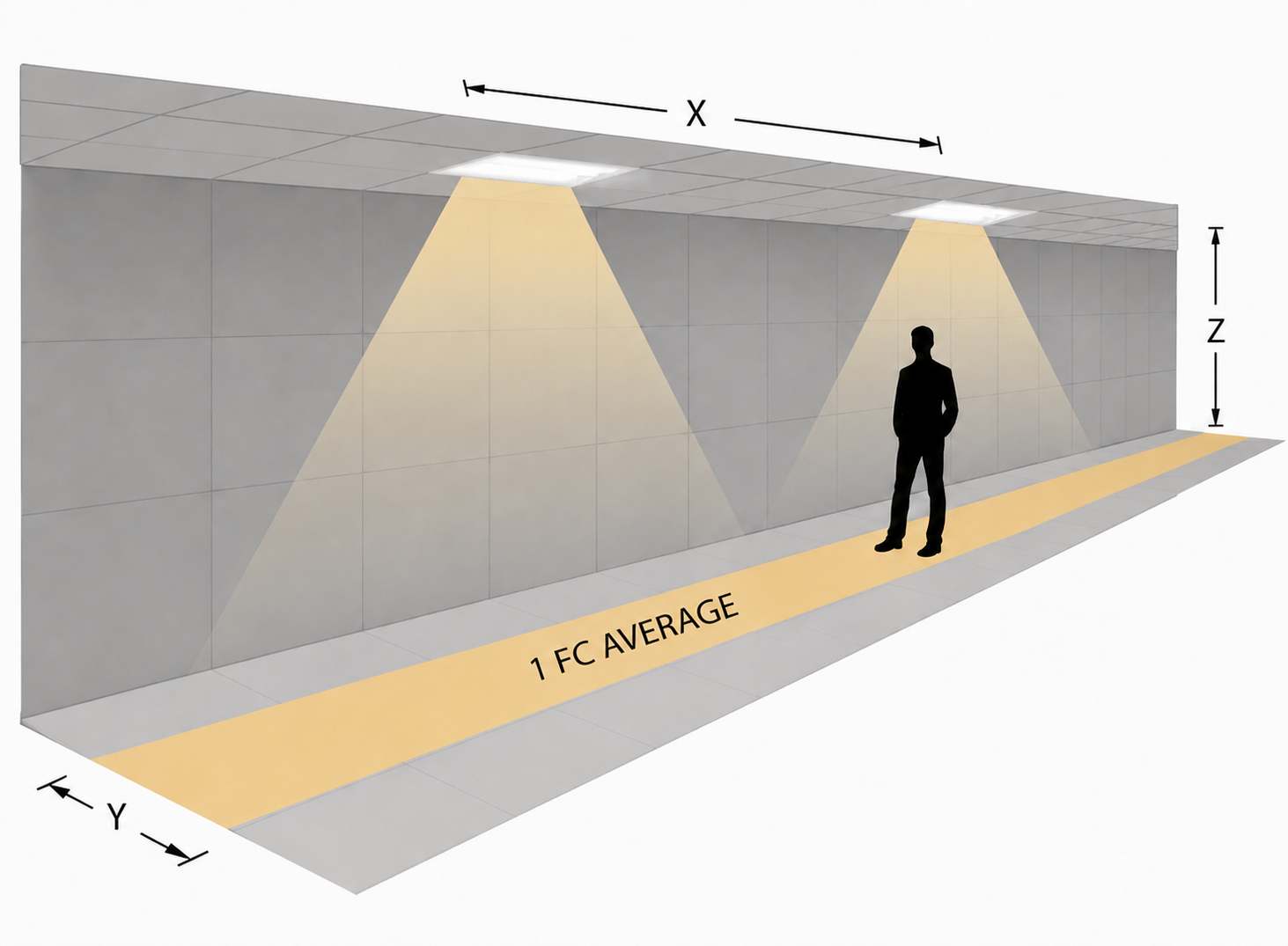

Photometrics
Total Luminaire Lumens : 2,250 / 2,770 / 3,660 / 4,620 lm
Electrical Components
Designed for 120-277V, 50/60Hz electrical systems. The fixture supports seamless 0-10V dimming with dim-to-off operation between 0.1V and 0.5V. It features a power factor of at least 0.9, maximum THD of 20%, typical driver efficiency of 86%, and flicker-free driver performance.
Electrical Specifications
- 15W: 2,250 lumens
- 18W: 2,770 lumens
- 25W: 3,660 lumens
- 30W: 4,620 lumens
Installation
Designed for installation in standard ceiling grids. Optional drywall and surface-mount frames allow the fixture to be installed in recessed drywall ceilings or directly on ceiling surfaces. Suitable for offices, schools, healthcare facilities, retail spaces, conference rooms, and other commercial interiors.
