Emergency Light with MR16 Lamps | White or Black

Base Code: EL-MR16

Items marked FAST SHIP typically ship same day if order is placed before 2PM

Emergency Light with MR16 Lamps | White or Black

Lead Time: Black Housing/USA: 3-5 Day


An efficient and secure Emergency Light. Two rotating (up to 110 degrees) halogen lamps (MR16 6V 7W). Includes maintenance-free backup battery and universal mounting plate.

Compatible Battery:  B6V4A

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

Halogen Lighting

Halogen Lighting
This unit produces High Ouput Halogen light.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.


  • UL 924, ETL, Energy Star Rated and NFPA 101 Life Safety Code
  • Listed for damp location
  • Universal mounting plate with EZ quick connect for rapid labor saving installation
  • Push-to-test switch
  • Universal transformer for 120 or 277 VAC operation
  • 6V Maintenance-free battery
  • Charge rate / power on LED indicator light

Previous Product Codes: EL-MR16B, EL-MR16W


Weight6.00 lb

Whats included?

  • White or Black MR16 Emergency Light
  • Installation Instructions & Hardware
  • SLA Battery - Must connect the battery after installation (Located inside unit)


The EL-MR16 series is constructed from injection-molded, engineer-grade, 5VA flame retardant thermoplastic. White housing is standard. Also available in black housing.


EL-MR16 emergency lights use long-lasting, efficient MR16 Halogen lamps. Lamp heads are on track-and-swivel arrangement allowing lamp heads to be fully adjustable.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EL-MR16 Emergency Lighting series is designed with a maintenance-free 6V 4.5Ah SLA battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 32°F (0°C) to 122°F (50°C).


Total Luminaire Lumens : 65 Per Lamp

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 24ft for a 3ft path of egress.

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 20ft for a 6ft path of egress.

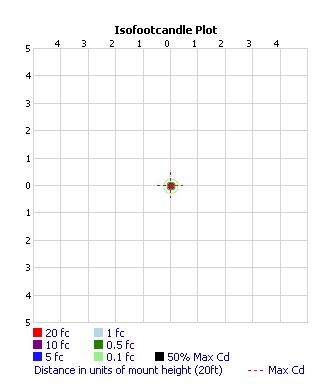

Emergency Light with MR16 Lamps | White or Black Photometrics

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.


EL-MR16 emergency unit uses two 7W adjustable MR16 lamps. Heads are constructed from high impact thermoplastic.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions


Emergency Light with MR16 Lamps | White or Black Dimensions

Customer Questions & Answers
Post a question and have an expert answer

Q Lindsey • 12/20/2018, 12:49:58 PM Do you have replacement bulbs for this unit?
A Exit Light Co. Unfortunately we do not sell the replacement bulbs, just the whole fixture.
