Exit Sign | Class 1 Div 2 Hazardous Location |10-12 Week Lead Time

Base Code: EX-C1D2

Items marked FAST SHIP typically ship same day if order is placed before noon

Exit Sign | Class 1 Div 2 Hazardous Location |10-12 Week Lead Time
Processing...
$1,275.00

Lead Time: 10-12 Week

Qty

Class I, Division 2 Emergency Light Exit Sign - Unit combines energy-saving LED technology and a durable enclosure suitable for hazardous location. UL Listed for use in Class 1, Division 2 and Class 11, Division 2 areas. The unit offers several levels of protection against the elements, including dust, dirt and water. The exits are designed for use in hostile environments that would otherwise damage ordinary sign components. Constructed of impact resistant fiberglass reinforced polyester. Lead Time is 10-12 Weeks.

Codes and Standards:
  • UL 924 and 844 listed
  • Temperature Rating (T-Rating) 160° (T3C)
  • Class I, Zone 2 T-Rating 200° (T3)
  • NFPA 101, NEC, IBC, BOCA, and OSHA illumination standard
  • IEC 61951-1 Life Testing (batteries)
  • UL listed for Class I, Division 2, Groups A, B, C & D; Class I, Zone 2, Groups IIA, IIB (+ H2) & IIC; and Class II, Division 2, Groups F & G

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This unit uses energy efficient and long lasting LED's.

Made in the USA

Made in the USA
This unit is made in the United States.

Features

  • Self-contained
  • Direct-view LEDs
  • AC-indicator lamp and push-to-test switch
  • Automatic operation
  • Low-voltage disconnect
  • Dual 120/277 VAC input
  • Solid-state, surge-protected electronics and circuitry
  • Voltage-regulated charge
  • AC lockout
  • Brown-out protection

Specifications

Dimensions
Width13.2"
Height11.2"
Depth6.6"
Diameter1"
Weight25.00 lb

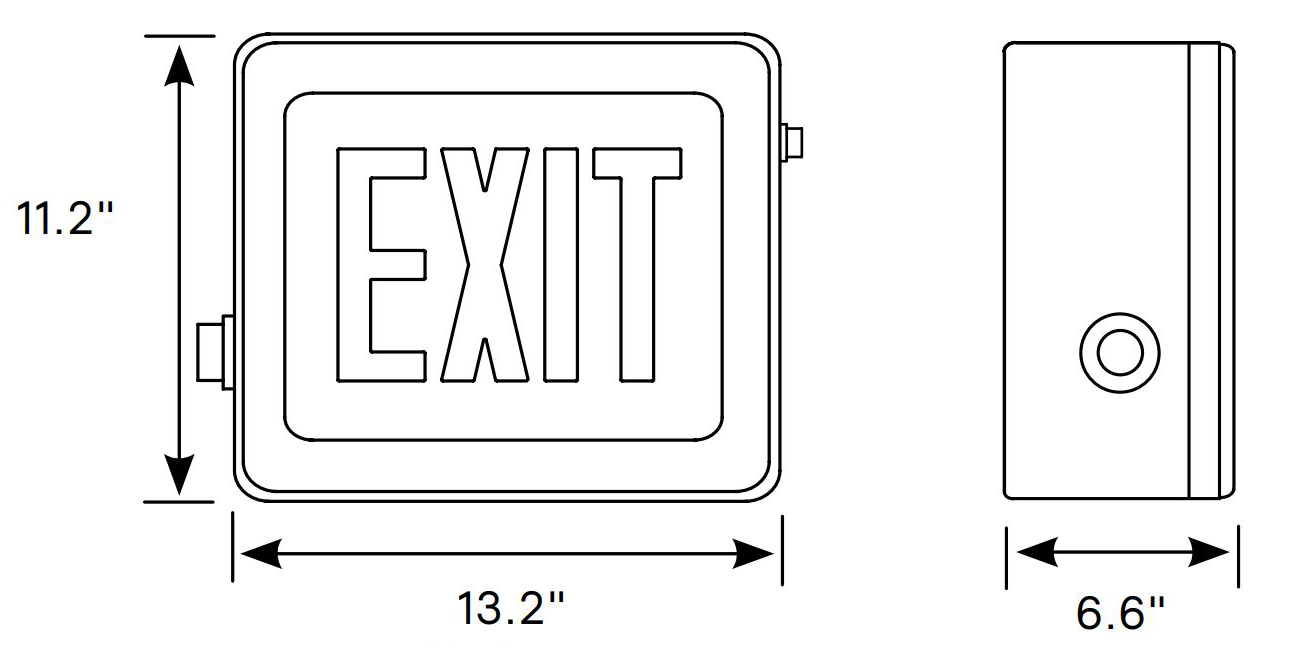

Exit Sign | Class 1 Div 2 Hazardous Location |10-12 Week Lead Time Dimensions

Construction

The EX-C1D2 series is constructed of impact resistant, fiberglass, reinforced polyester gray housing and includes stainless steel hardware and clear polycarbonate cover. The housing features a one piece formed gasket and corrosion-resistant hardware.

Illumination

Illumination of the exit stencil face is accomplished with long lasting, high output LEDs, producing an average illumination level in excess of 25 fl at the end of the 90 minute emergency run time.

Emergency Operation

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EX-C1D2 series is designed with a free sealed nickel cadium battery (Battery Backup and Self-Testing Model only).

Operational Temperature

Temperature Ratings
Standard Option 19°C to 30°C / 65°F to 86°F

Self-Testing Option

STANDARD SELF-TESTING option enables a periodic self-test of the equipment where a test routine is established to perform a one minute test once a month with a 30 minute test performed on the sixth and twelfth month in accordance with NFPA 101. Equipment readiness faults are indicated with a visual LED display.

AUDIBLE SELF-TESTING option enables a periodic self-test of the equipment where a test routine is established to perform a one minute test once a month with a 30 minute test performed on the sixth and twelfth month in accordance with NFPA 101. Equipment readiness faults are indicated with a visual LED display and an audible alarm.

Electrical Components

Dual voltage input 120/277 VAC operation with surge protection for all options. Battery backup models include brownout detection, AC lockout, low voltage disconnect, AC indicator, charge status indicator, audible user-interface controls, visual LED system fault indicator, and tactile push-to-test switch.

Customer Input Transformer option allows for input voltage and frequencies beyond the standard 120/277 VAC, 60 Hz input. (Contact us for details)
