Emergency Fluorescent Ballast | 700 Lumen | T5 or T8

Base Code: EB-8

Items marked FAST SHIP typically ship same day if order is placed before noon
Emergency Fluorescent Ballast | 700 Lumen | T5 or T8
Processing...
$50.00
PDF Download   Download Spec-Sheet
Qty
Utilize everyday existing fluorescent lighting as emergency lighting. Emergency battery ballasts allow a linear or compact fluorescent (CFL) fixture to be used during both normal and emergency operation. In the event of a power failure, the emergency battery ballast operates the fixture, powering the lamp for a minimum of 90 minutes from the built-in backup battery.

Use with 17-110 watts single pin or bi-pin fluorescent lamps (T8, T10, or T12) for 90 minutes. Operates one 8' lamp or two 4' lamps.
This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

Fluorescent Lighting

Fluorescent
This product produces Fluorescent lighting.

Features

  • Fluorescent emergency ballast
  • Painted durable steel casing
  • Contains battery, charger and inverter circuit
  • Meets or exceeds all NEC and Life Safety Code emergency lighting requirements
  • 90 Minute emergency operation
  • 120/277v 60Hz operation
  • led Charge indicator light and push-to-test switch
  • Cold starts and operates specified lamp types

Specifications

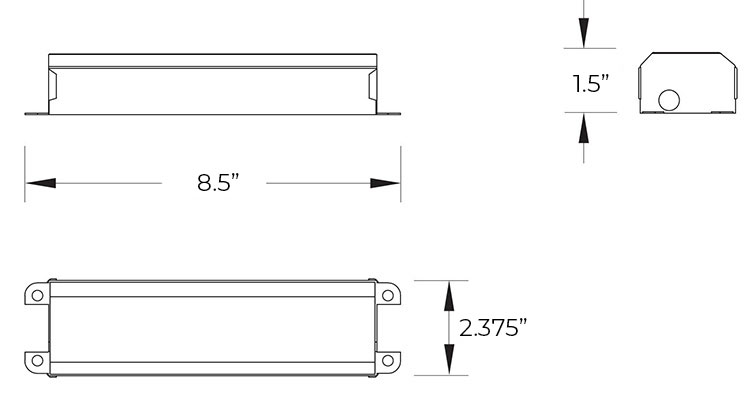

Dimensions (May Vary by Model)
Width2.375"
Height1.5"
Length8.5"
Weight5.00 lb
Emergency Fluorescent Ballast | 700 Lumen | T5 or T8 Dimensions

PDF Download   View Installation Instructions

Lamp Compatibility Chart

Lamp Type Watts Initial Lumens
1-Lamp 2-Lamp
T5 21 575 650
T5 28 675 N/A
T5
 35 700 N/A
T5HO 24 650 N/A
T5HO
 39 700 N/A
T5HO
 54 700 N/A
T8 25 625 700
T8
 28 630 600
T8
 32 600 700
T8
 40 650 700
T8HO 44 625 N/A
T8 51 675 N/A
T8 59 700 N/A
Lamp Type Watts Initial Lumens
1-Lamp 2-Lamp
CFL 2G11 55 675 N/A
CFL GR10Q-4 28 550 600
CFL GR10Q-4
 38 650N/A
CFL GR10Q-4
 55 700 N/A
Circular T9 20400 500
Circular T9
 32 450 550
Circular T9
 40 500N/A
Circular T5
 22 425 550
Circular T5
 40 600 700
Circular T5
 55 650 N/A
U-bend T8 32 575 675
U-bend T12
 34 550650
U-bend T1240 600 N/A
Lamp Type Watts Initial Lumens
1-Lamp 2-Lamp
T8HO 86 700 N/A
T12 25 450 500
T1230 500 550
T12
 34 575 600
T12
 40 625 650
T12
 75 675 N/A
T12
 85 700 N/A
T12HO
 95 700 N/A
T12HO
 110 700 N/A
CFL G24Q-557 675 N/A
CFL-2G1136 600 700
CFL-2G11
 40 625 N/A
CFL-2G1150 650 N/A
