Lighthouse Retrofit Kit Emergency LED Driver and Module | 6-8.4VDC 8W Output

Base Code: EB-LHOUSE

Items marked FAST SHIP typically ship same day if order is placed before noon

Lighthouse Retrofit Kit Emergency LED Driver and Module | 6-8.4VDC 8W Output
Processing...

Qty
The EB-LHOUSE LED Emergency Driver turns your old T5 and T8 flourescent fixtures into an LED code-compliant emergency lights. This LED drives provide emergency lighting for a minumum of 90 minutes in an event of power failure. Easy to install and maintain. Includes an illuminated test switch with different functions.

General Applications (T5 and T8 Flourescent Lights):

  • Troffer Lights
  • Recessed Lights
  • Vapor Lights
  • Linear Lights
Simple Wiring Logo

Wiring Made Simple
LED Driver is designed with easy to follow wiring schematic

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Simple Wiring Logo

High Voltage
LED Driver is designed to support high voltage fixtures

Features

  • UL Listed for factory and field installation
  • Compact Design
  • Simple Wiring
  • Self-Testing (monthly/yearly)
  • Constant Output Power
  • Built-in Lithium Battery

Specifications

Dimensions
Width1.65"
Height.87"
Length5.55"
Weight5.00 lb

What's included?

  • LED Driver
  • Installation Instructions
  • LED Strip
  • Test-Button
  • Battery Pack

Construction

The EB-LHOUSE emergency driver is constructed from durable steel.

Illumination

The EB-LHOUSE emergency driver features a bright LED strip that puts out birght 5000k light (1000lm).

Emergency Operation

The EB-LHOUSE emergency driver provides a minimum of 90 minutes of battery backup time

Battery - Battery Backup

The EB-LHOUSE emergency driver is designed with a 7.4V 2000mAh maintenance-free lithium battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option41°F to 122°F

Electrical Components


Model No. EB-LHOUSE-8W
Input Voltage 100-277V AC
Brightness 1000lm
Emergency Power 8W
Battery Type Li-ion
Emergency Time 90 mins

Installation

The EB-LHOUSE emergency driver can be installed in different types of indoor troffers, panels, vapor lights, linear lights, most T5 and T8 fixtures. We recommend confirming electrical specs on existing light to make sure the LED Driver is fully compatible.

Mounting Configurations   Mounting Configurations Explained

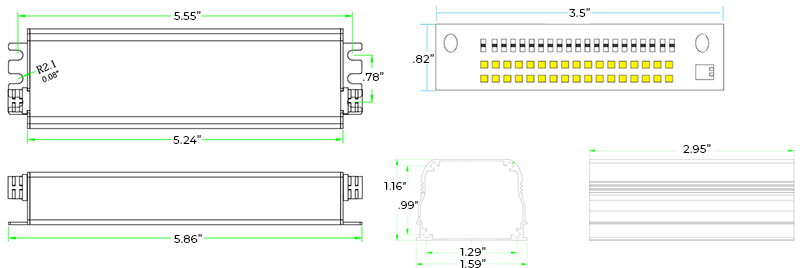

Dimensions

Lighthouse Retrofit Kit Emergency LED Driver and Module | 6-8.4VDC 8W Output Dimensions
