Edge Lit Faceplate Panels | Single and Double Sided | Multiple Configurations | Final Sale

Base Code: ELRT-FP

Items marked FAST SHIP typically ship same day if order is placed before noon
Edge Lit Faceplate Panels | Single and Double Sided | Multiple Configurations | Final Sale
Processing...
$20.00
PDF Download   Download Spec-Sheet
Qty

The Exit Light Company now offers edge lit faceplate panels for various exit signs – available in different configurations; both red and green lettering. Replacing old, scratched, and faded panels got a lot easier. No longer need to replace complete units.

Disclaimer: Exit signage comes in different shapes and sizes, The Exit Light Co., Inc cannot guarantee they will fit third-party signage. Please ensure the fit is correct and suitable for your project. Note that these are FINAL SALE and NO RETURNS or EXCHANGES will accepted.

Compatible Exit Signs:

ELRT Series

ELSM Series

How To: Replace battery and faceplates

Features

  • Acrylic Construction
  • 6" Lettering
  • Field Installable Arrows for Left, Right or Both directions

Specifications

Dimensions (May Vary by Model)
Height7.37"
Depth.37"
Length11.18"
Weight5.00 lb

What's included?

  • Edge Lit Panel with adhesive arrows

Construction

The EDGE-FP panels are etched panel constructed from acrylic material. Double sided panel comes as mirrored configuration. Lettering is 6” high with 3/4” stroke.

  • Single-Sided Clear Panel
  • Single-Sided Mirrored Panel
  • Single-Sided White Panel
  • Double-Sided Mirrored Panel
  • Double-Sided White Panel

Installation

The EDGE-FP has two small cut outs to snap in place. Refer to the instructions manual of existing unit to replace the faceplates.

Mounting Configurations   Mounting Configurations Explained

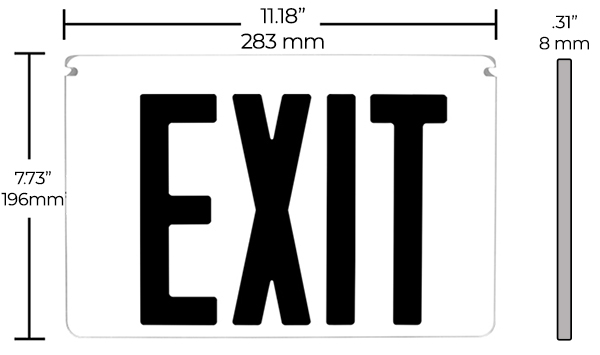

Dimensions

Edge Lit Faceplate Panels | Single and Double Sided | Multiple Configurations | Final Sale Dimensions

View Common Questions or Ask Your Own Below
Post a question and have an expert answer



Q John laporta • 03/26/2024, 11:20:55 AM looking for Base Code: ELRT-FP measurements are 11.18 X 7.73b but the one i need to replace is 13 3/4 x 10" do you carry it the size i need
A Exit Light Co. This is the only size faceplate that we carry that is offered separately from the unit. Our NYCELRT-R unit is larger, and is sold as a complete unit: https://www.exitlightco.com/product/NYCELRT.html
