Sleek Architectural 90° Adjustable LED Outdoor Rated Wall Pack | High Performance Lumen | 4 Colors
Base Code: ELF-AWP
Items marked FAST SHIP typically ship same day if order is placed before noon
$195.00
The ELF-AWP Sleek Architectural Adjustable Outdoor Rated Wall Pack is a versatile solution for everyday wall-mounted lighting needs. Designed for performance, style, and value, the EL-AWP eliminates the need to sacrifice quality for cost. Available in two sizes with lumen packages ranging from 3,200 to 13,000 lumens, it serves as a complete site-wide solution, replacing up to 400W metal halide wall packs. Its larger footprint ensures full coverage of unsightly stains left behind by older fixtures, providing a clean, professional installation without additional patching or repair. Configurable options such as emergency battery backup, photocell controls, and a choice of finish colors make the EL-AWP adaptable to virtually any application. With sleek styling, reliable wet-location construction, and powerful LED performance, the EL-AWP is the ideal choice for retail centers, schools, office buildings, medical facilities, industrial parks, and more.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Features
- UL/cUL Listed, NFPA70 and NFPA 101 Life Safety Code
- UV Resistant, IK10 Rated
- IP65 Listed for Damp or Wet Location
- Die cast aluminum housing
- 3000K-5000K Light Temperature
- UV stabilized polycarbonate lens
- LED Board
- Maintenance-free battery
- Charge rate / power on indicator and test button with emergency ballast option
Specifications
| Dimensions (May Vary by Model) | |
| Height | 8.25" - 9.5" |
| Depth | 4.5" - 5.5" |
| Length | 8.12" - 13"" |
| Weight | 20.00 lb |
What's included?
- Wall Pack Light Fixture
- Installation Instructions & Hardware
- LiFePO4 Battery
Construction
The ELF-AWP is built with a durable die-cast aluminum housing and features a UV-resistant powder-coated finish for long-lasting performance. A built-in photocell allows for automatic dusk-to-dawn operation, enhancing energy efficiency. This wall pack is available in four finish options—Silver, Dark Bronze, Black, and White—to complement a variety of architectural styles.
Illumination
| Feature | Compact Model | Standard Model |
|---|---|---|
| Normal Flux (AC Mode) |
|
|
| Emergency Output |
|
|
| CCT Options | 3000K, 4000K, 5000K (Field Selectable) | 3000K, 4000K, 5000K (Field Selectable) |
| CRI | 70+ | 70+ |
| Dimming | 0–10V / 1–10V regulation | 0–10V / 1–10V regulation |
| Operation | General lighting with photocell sensor + emergency battery backup | General lighting with photocell sensor + emergency battery backup |
| Emergency Test Function | Self-Testing or Manual Test (Field Selectable) | Self-Testing or Manual Test (Field Selectable) |
| Mounting | Wall mount with rear input voltage access or side conduit access | Wall mount with back power lead or conduit power lead |
Emergency Operation
In the event of a power failure, the battery will keep the fixture illuminated for industry standard 90 minutes. Recharge time is 24 hours.
Battery - Battery Backup
The ELF-AWP LED Wall Pack is designed with a maintenance free LiFePO4 19.2V 3200mAh battery that provides a minimum of 90 minutes of battery backup run-time. LiFePO4 batteries are known for their longevity, safety, and efficiency. With LiFePO4 batteries, safety is paramount – their formulation, lithium iron phosphate, is highly resistant to overheating and fire hazards. They are backed by an integrated battery management system (BMS) to prevent overcharge, over-discharge, and short-circuiting, ensuring peace of mind for users.
Operational Temperature
| Temperature Ratings | |
| Standard Option | -4°F to 122°F |
Photometrics
Total Luminaire Lumens :
9000lm - AC Mode 75W
13000lm - Emergency Mode

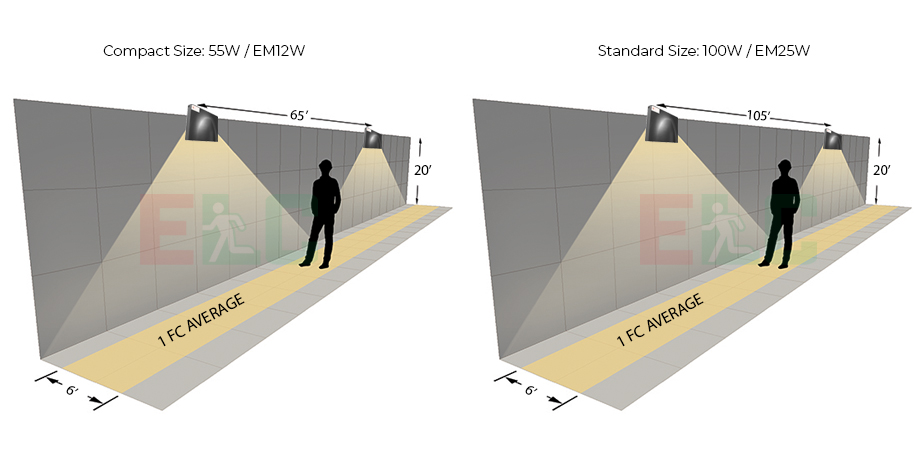

| Model | Lumen Output @ Emergency | 6ft width path | |||
|---|---|---|---|---|---|
| 10ft height | 12ft height | 15ft height | 20ft height | ||
| ELF-AWP 25W/55W-EM12W | 1500 lm | 62ft | 68ft | 75ft | 65ft |
| ELF-AWP-25W/55W-EM25W | 3000 lm | 78ft | 86ft | 95ft | 105ft |
| ELF-AWP-75W/100W-EM12W | 1500 lm | 62ft | 68ft | 75ft | 65ft |
| ELF-AWP-75W/100W-EM25W | 3000 lm | 78ft | 86ft | 95ft | 105ft |
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Electrical Components
The ELF-AWP Adjustable LED Wall Pack works with 120-277VAC systems and can be ordered as either an AC Only general light fixture or with an Emergency Battery Backup option. Choose from compact (25W/55W) or standard (75W/100W) models to meet your needs. In emergency mode, the ELF-AWP provides dependable backup power with a 90-minute minimum runtime and 12W or 25W output, fully recharging in just 24 hours
Installation
The ELF-AWP LED Wall Pack is suitable for wall mount installation with input voltage access through the rear knockouts or side conduit access holes.
Mounting Configurations Explained
View Installation Instructions

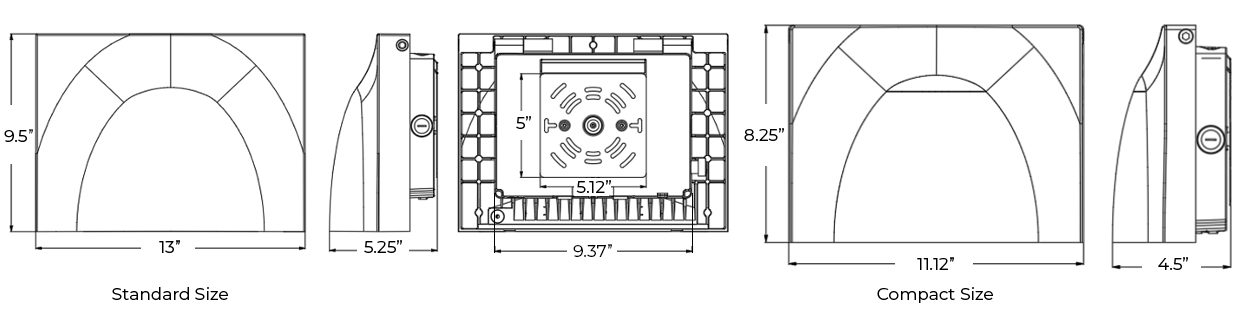

Dimensions
