Edge Lit Green LED Exit Sign | Ceiling and Wall Recessed Mount Assembly | Adjustable Angle

Base Code: ELRT-G-RM

Items marked FAST SHIP typically ship same day if order is placed before noon

Edge Lit Green LED Exit Sign | Ceiling and Wall Recessed Mount Assembly | Adjustable Angle
Processing...

Get Help

Lead Time:
Black/White/AC Only: 2-3 Day

Qty

This Green LED Edge Lit Exit Sign is suitable for almost any mounting configuration with its rotatable faceplate. When purchasing this unit, a Recessed Mounting Kit is included which allows you to retrofit the unit to be suitable for recessed ceiling installation (instructions included). The edge-lit panel is constructed of high-grade acrylic with customizable directional arrows to point towards the exit direction. The removable front cover makes installation and maintenance headache-free!

Available in Surface Mount (ELRT-G)

How To: Assemble Recess Kit

Compatible Battery:  B3A-48

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life SafetyCode
  • Listed for damp location
  • Most versatile edge lit exit sign on the market
  • Recessed Mounting Only
  • Aluminum housing with high grade acrylic face
  • Field Installable Arrows for Left, Right or Both directions.
  • Long life LED illumination
  • Test switch and charge rate indicator on battery backup models
  • Dual 120/277 volt operation
  • NON CEC Compliant

Specifications

Dimensions (May Vary by Model)
Width15.75"
Height8.13"
Depth5.5"
Weight10.00 lb

What's included?

  • Green LED Exit Sign
  • Recessed Mounting Kit
  • Clear Single Sided "EXIT" Faceplate (with optional adhesive arrows)
  • Mirrored Double Sided "EXIT" faceplate (extra cost)
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation

Construction

The ELRT-G-RM Edge Lit Exit Sign housing is contructed of die-cast aluminumhousing with an etched, clear acrylic panel. Double sided panel comes as mirrored configuration. Lettering is 6” high with 3/4” stroke. Aluminum housing is standard, black and white housing available.

Illumination

The ELRT-G-RM Exit Sign series provides a long life LED illumination. The unit is constructed with a red or green high output LED board.  Energy consumption is rated at less than 3 watts for the AC only model units. Battery backup units energy consumption is rated at less than 5 watts.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The ELRT-G-RM series is designed with a 4.8 Volt maintenance-free NiCad battery. The battery is protected by a low voltage cut-off circuit. The operating temperature range for the battery is 32°F (0°C) to 104°F (40°C).

Operational Temperature

Temperature Ratings
Standard Option32°F to 104°F

Self-Testing Option

This unit continuously self checks for proper operation. The multi-color LED indicator light will indicate the status after testing and adjust when corrected. The unit will self test in emergency mode for up to the full 90 minute duration to ensure proper operation during an actual power failure.

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers brown out, overload and short circuit protection.

Installation

The ELRT-G-RM Sign is suitable for Recessed mounting through the included Recessed Mounting Kit, which allows this unit to be ceiling recessed for drop ceiling, new construction, and wall application only. Includes field installable directional arrow indicators. All hardware is included.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

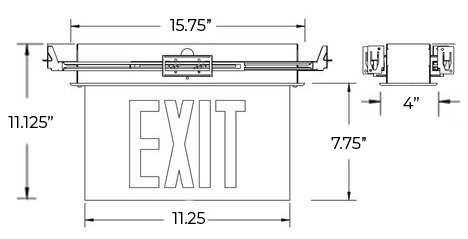

Dimensions

Edge Lit Green LED Exit Sign | Ceiling and Wall Recessed Mount Assembly | Adjustable Angle Dimensions
