Explosion Proof Edge Lit Exit Sign | Red or Green LED | 4-6 Week Lead Time

Base Code: ELSM-C1D1

Items marked FAST SHIP typically ship same day if order is placed before noon

Explosion Proof Edge Lit Exit Sign | Red or Green LED | 4-6 Week Lead Time

Lead Time: 4-6 Week


Class I, Division 1 Exit Signs are designed for indoors or outdoors where flammable gases or vapors or combustible dusts exist and create a hazardous location, as defined by the NEC.
This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This unit uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.


  • UL 1598A, 844, 924. IP 65, marine outside type
  • NFPA 70 and NFPA 101 Compliant
  • Class 1 Div 1 Groups C & D, Class 1 Div 2 A, B, C, D
  • 120/277 VAC dual voltage
  • Pendant ceiling mount
  • Copper-free cast aluminum housing with baked on epoxy powder finish with 1/2" NPT conduit hubs
  • UL Wet location listed (Indoor & Outdoor)
  • Minimum start 0°C temperature
  • LED Charging indicator light visible through lens


Weight20.00 lb

What's included?

  • RED or GREEN LED Exit Sign
  • Clear Single Sided "EXIT" Faceplate (with optional adhesive arrows)
  • Mirrored Double Sided "EXIT" Faceplate (extra cost)
  • Installation Instructions & Hardware
  • Wall Mount or End Mount Bracket
  • NiCad Battery - Must connect the battery after installation


The ELSM-C1D1 series light is constructed from A356T6 aluminum with baked-on gray epoxy finish.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 3 hours.

Battery - Battery Backup

The ELSM-C1D1 Exit Sign is designed with a maintenance-free battery that provides a minimum emergency duration of 3 hours. Recharge time of the battery is 24 hours.

Operational Temperature

Tempereature Rating Operation 50°F - 131°F (Red LED)

Tempereature Rating Operation 50°F - 104°F (Green LED)

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.

Max Input Power:

Red no battery - 1.5 Watts

Red with battery - 2.5 Watts

Green no battery - 2.3 Watts

Green with battery - 3.0 Watts


The ELSM-C1 D1 series is designed for wall, pendant, and end mount installation.

Mounting Configurations   Mounting Configurations Explained

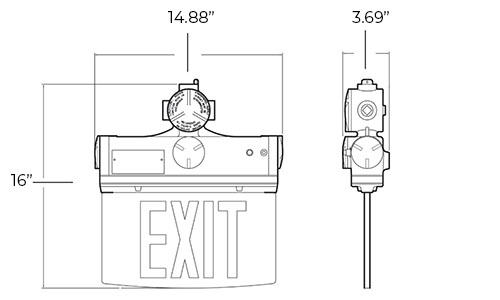

Explosion Proof Edge Lit Exit Sign | Red or Green LED | 4-6 Week Lead Time Dimensions
