Commercial Lighting | Round High Bay (High Output) - Round High Bay
Base Code: ES-DHB-B4-H2-BK
Items marked FAST SHIP typically ship same day if order is placed before noon.
$93.00
Key Features
- Field-selectable wattage (150/200/240W)
- Selectable CCT (4000K/5000K)
- Selectable 60° or 90° beam distribution
- High-efficacy LED performance up to 160 lm/W
- Sensor Ready for occupancy controls
- Durable die-cast aluminum construction
Safety Codes and Compliance
- UL/cUL listed
- DLC Premium listed
- IP65 wet-location rated
- Backed by a 5-Year warranty
Mounting Options
- Suspension mount
- Pendant mount
- Surface mount
For ceilings where the standard high bay doesn't reach the floor.
The high-output round high bay steps up to 150/200/240W for ceilings above 30 feet or floor plans that need serious lumen density — big-box retail, heavy manufacturing.
Same adjustable beam angle and IP65 housing as the standard-output model, just built to distribute light further.
Overview
The Essential Series Round High Bay combines selectable wattage, dual CCT tuning, and adjustable beam distribution in a durable industrial-grade design. Delivering up to 160 lm/W with IP65 protection and sensor-ready functionality, it provides flexible, energy-efficient illumination for warehouses, manufacturing facilities, gymnasiums, and other large commercial spaces.Installation
Suitable for suspension, pendant, or surface mounting. An optional surface-mount bracket is available. The fixture is also sensor-ready and compatible with PIR and microwave occupancy sensors for automated lighting control.Dimensions
| Weight | 1.00 lb |
Warranty
Backed by a 5-year limited warranty.
Catalog Ordering Information
| Catalog Number | Size | Wattage Selectable | Lumens Selectable (@40K) | CCT Selectable | Voltage | Finish |
|---|---|---|---|---|---|---|
| ES-DHB-B4-H2-BK | High Output | 150/200/240W | 22780/30370/36440 lm | 40/50K | 120-277V | Black |
Construction
Durable die-cast aluminum housing with a black finish and impact-resistant polycarbonate lens. The fixture is IP65 rated for wet locations and designed for demanding commercial and industrial environments.
Illumination
The Essential Series Round High Bay features field-selectable wattage, selectable 4000K or 5000K color temperatures, and adjustable 60° or 90° beam distribution. Its high-efficiency LED system produces up to 160 lumens per watt with a CRI greater than 80.
Emergency Operation
An optional emergency driver is available to provide backup illumination during a power failure. The emergency driver must be ordered separately and installed in the field.
Operational Temperature
Temperature Rating: -4°F to 122°F (-20°C to 50°C)
Electrical
Designed for 120-277V, 50/60Hz electrical systems. The fixture supports seamless 0-10V dimming and features a power factor of at least 0.9, maximum THD of 20%, driver efficiency of at least 90%, and 6kV surge protection.Electrical Specifications
Related Products
Complete your setup with these recommended 5 products.
Performance
Total Luminaire Lumens: 22,780 / 30,370 / 36,440 lm

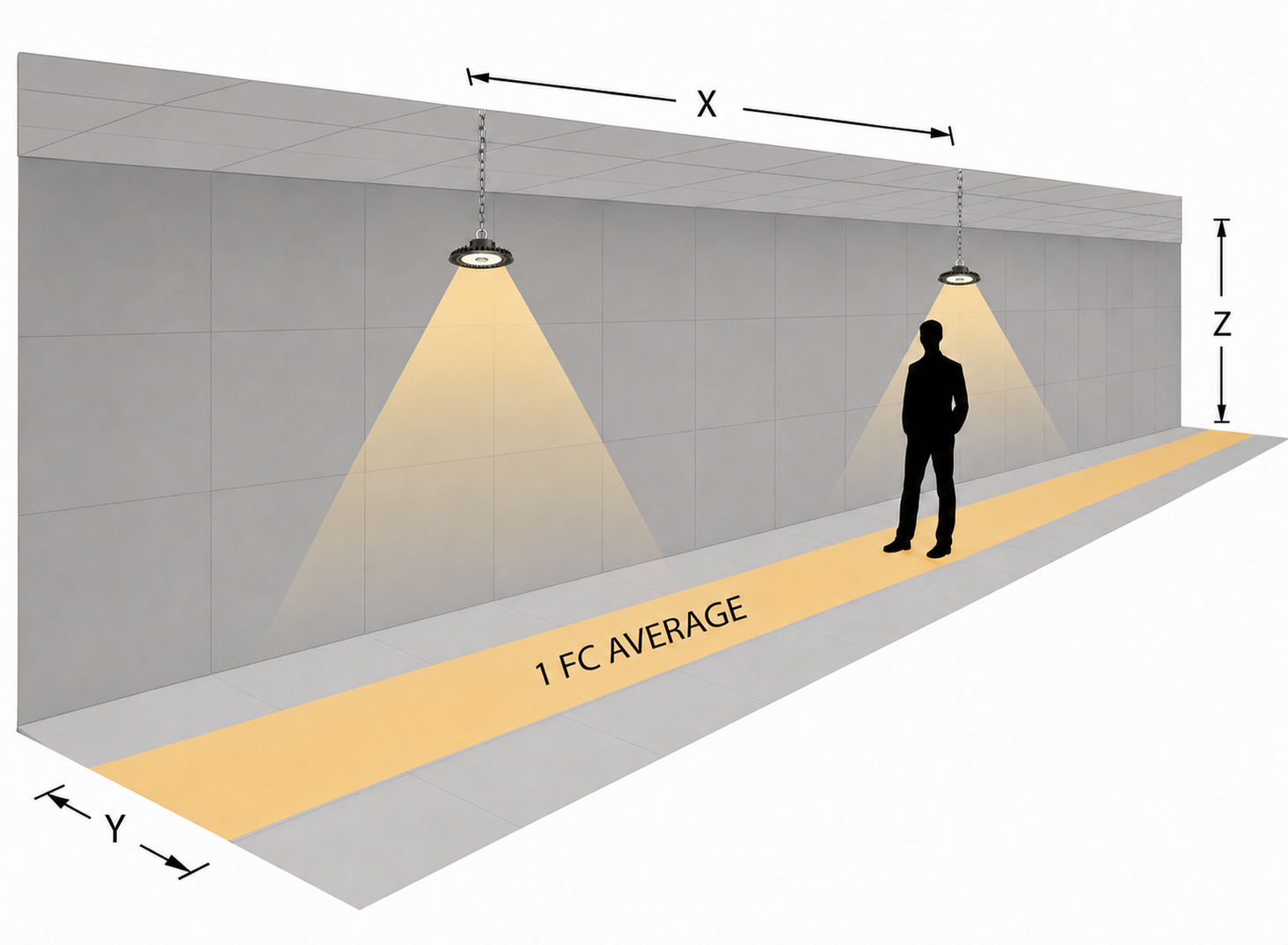

Emergency Lighting Spacing Diagram
Emergency Lighting Spacing Suggestions
Emergency Lighting Spacing - 60° Beam
| Egress Path Width | 24 ft Mounting Height | 30 ft Mounting Height | 36 ft Mounting Height |
|---|---|---|---|
| 3 ft | 74 ft | 91 ft | 103 ft |
| 3.5 ft | 74 ft | 91 ft | 103 ft |
| 6 ft | 78 ft | 95 ft | 108 ft |
Emergency Lighting Spacing - 90° Beam
| Egress Path Width | 24 ft Mounting Height | 30 ft Mounting Height | 36 ft Mounting Height |
|---|---|---|---|
| 3 ft | 87 ft | 100 ft | 87 ft |
| 3.5 ft | 87 ft | 100 ft | 88 ft |
| 6 ft | 90 ft | 105 ft | 95 ft |
