Commercial Lighting | Ultra-Thin LED Downlight 8 in - Downlight
Base Code: ES-DL-8R-S1-WH
Items marked FAST SHIP typically ship same day if order is placed before noon.
$26.00
Key Features
- Canless / new-construction-free install
- IC Rated
- Field-selectable wattage (12/17/23W)
- Selectable CCT (2700K/3000K/3500K/4000K/5000K)
- High CRI (>90)
- Smooth 0-10V dimming
- Sensor Ready
Safety Codes and Compliance
- ETL listed
- IC rated for insulated ceilings
- Suitable for wet locations
- RoHS compliant
- Backed by a 5-Year warranty
Mounting Options
- Recess mounted
- Canless
More room to light, with the same canless installation.
The Essential Series 8-inch Ultra-Thin Downlight is designed for larger spaces and higher-ceiling applications where greater light output is needed.
Field-selectable 12/17/23W output and five CCT settings from 2700K to 5000K provide 1,140 to 1,990 lumens of high-CRI, uniform illumination.
The canless recessed design installs without a traditional housing, making it suitable for common areas, conference rooms, hospitality lobbies, and retail spaces.
Overview
The Essential Series Ultra-Thin Downlight combines low-profile design with selectable wattage and 5 CCT tuning for versatile LED lighting performance. Ideal for retrofit and new construction applications, it delivers smooth, uniform illumination with easy installation.Installation
Designed for canless recessed installation in retrofit and new-construction applications. Spring clips secure the fixture directly into the ceiling without requiring a traditional recessed housing. An optional new-construction plate is available for all three sizes.
Dimensions
- Length: 6 3/16 in. (157 mm)
- Width: 2 13/16 in. (71 mm)
- Maximum height: 1 9/16 in. (40 mm)
| Weight | 1.00 lb |
Warranty
Backed by a 5-year limited warranty.
Catalog Ordering Information
| Catalog Number | Size | Wattage Selectable | Lumens Selectable (@40K) | CCT Selectable | Voltage | Finish |
|---|---|---|---|---|---|---|
| ES-DL-8R-S1-WH | 8 in | 12/17/23W | 1140/1530/1990 lm | 27/30/35/40/50K | 120-277V | White |
Construction
Ultra-thin, canless design featuring a die-cast aluminum heat sink, PMMA light guide plate, and anti-yellowing plastic diffuser. The fixture has a clean white finish and is IC rated for direct contact with insulated ceilings.
Illumination
The Essential Series Ultra-Thin LED Downlight features field-selectable wattage and five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K. Its high-quality LED system delivers smooth, uniform illumination with a CRI greater than 90.
Emergency Operation
An optional emergency configuration is available to provide backup illumination during a power failure.Operational Temperature
Temperature Rating: -13°F to 104°F (-25°C to 40°C)
Electrical
Designed for 120-277V, 50/60Hz electrical systems. The fixture supports seamless 0-10V dimming over a 10-100% range and features flicker-free driver performance, a power factor greater than 0.9, and THD below 25%.
Electrical Specifications
Related Products
Complete your setup with these recommended 1 products.
Performance
Total Luminaire Lumens: 1,140 / 1,530 / 1,990 lm

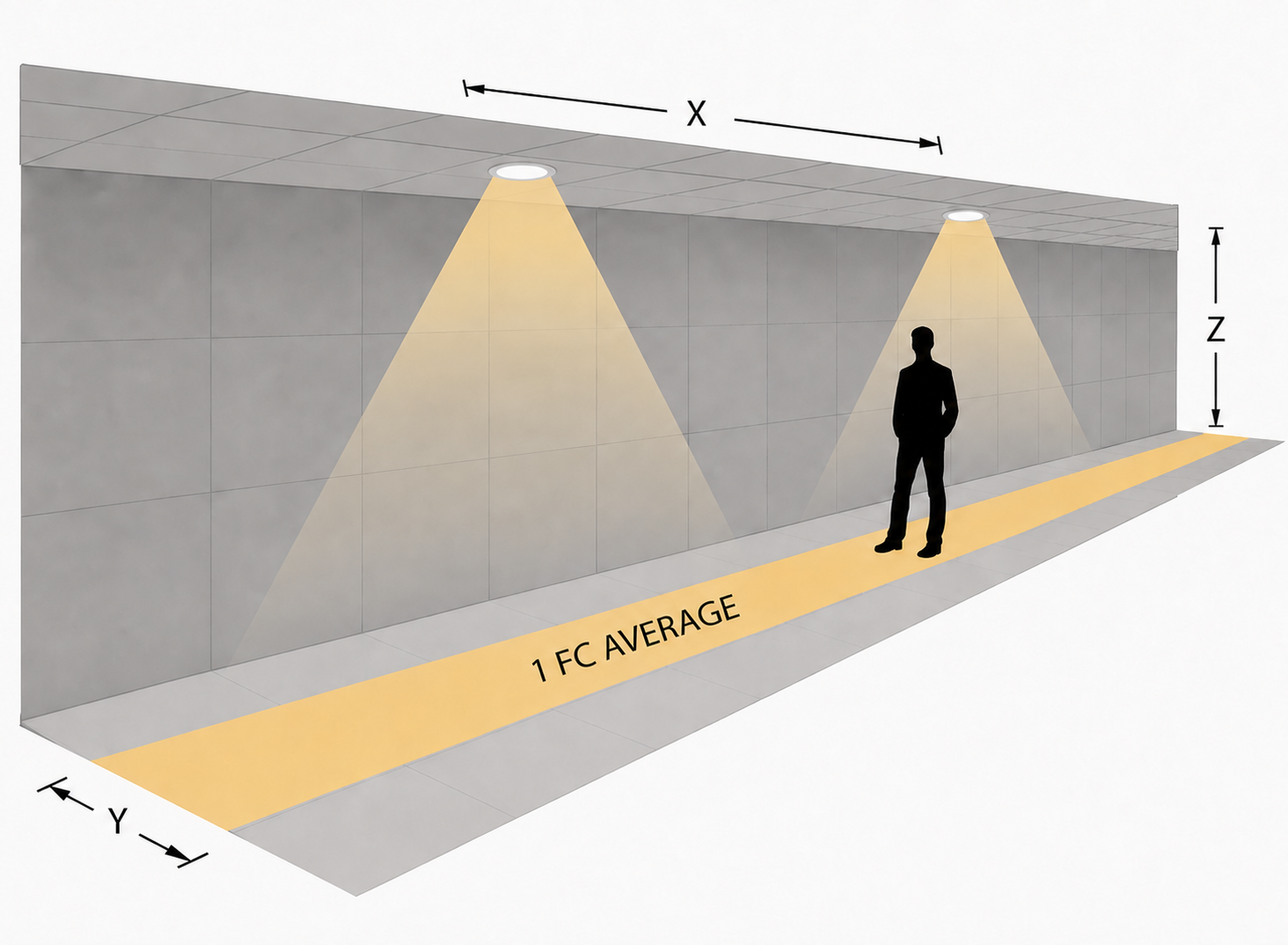

Emergency Lighting Spacing Diagram
Emergency Lighting Spacing Suggestions
| Egress Path Width | 7 ft Mounting Height | 9 ft Mounting Height | 11 ft Mounting Height |
|---|---|---|---|
| 3 ft | 44 ft | 43 ft | 36 ft |
| 3.5 ft | 44 ft | 43 ft | 36 ft |
| 6 ft | 44 ft | 40 ft | 34 ft |
