Commercial Lighting | Strip Fixture 2 ft - Strip Fixture
Base Code: ES-LS-L2-S1-WH
Items marked FAST SHIP typically ship same day if order is placed before noon.
$40.00
Key Features
- Field-selectable wattage (15/20/25W)
- Selectable CCT (30/40/50K)
- Sensor Ready
- No UV/IR output
Safety Codes and Compliance
- UL/cUL listed
- DLC listed
- Damp location rated
- Backed by a 5-Year warranty
Mounting Options
- Surface mount
- Suspended mount
- Chain mount
The light for the room nobody photographs.
A no-frills utility strip for back-of-house spaces where light output matters more than looks — stockrooms, mechanical spaces, garages.
Selectable 15/20/25W keeps one fixture useful across rooms with different footcandle needs.
Overview
The Essential Series Strip Fixture combines selectable wattage and 3 CCT tuning with clean, uniform LED illumination in a durable, low-profile design. Ideal for offices, hallways, utility spaces, and commercial applications, it delivers reliable performance, easy installation, and long-lasting energy savings.Installation
Suitable for direct surface mounting or suspended installation. Optional suspension and connection kits are available for all three fixture lengths. Ideal for offices, hallways, utility rooms, workshops, storage areas, and other commercial applications.
Dimensions
| Weight | 1.00 lb |
Warranty
Backed by a 5-year limited warranty.
Catalog Ordering Information
| Catalog Number | Size | Wattage Selectable | Lumens Selectable (@40K) | CCT Selectable | Voltage | Finish |
|---|---|---|---|---|---|---|
| ES-LS-L2-S1-WH | 2 ft | 15/20/25W | 2230/2980/3720 lm | 30/40/50K | 100-277V | White |
Construction
Durable commercial-grade iron housing with a white finish and frosted polycarbonate diffuser. The low-profile design provides clean, uniform illumination and is rated for use in damp locations.
Illumination
The Essential Series Strip Fixture features field-selectable wattage and selectable color temperatures of 3000K, 4000K, or 5000K. Its energy-efficient LED system delivers up to 145 lumens per watt with a CRI greater than 80.
Emergency Operation
Optional emergency drivers are available to provide backup illumination during a power failure. The correct emergency driver must be selected according to the fixture length and installed in the field.
Operational Temperature
Without sensor and emergency driver: -4°F to 122°F
With sensor and emergency driver: 32°F to 104°F
Electrical
The detailed electrical specifications list a 120-277V, 50/60Hz input range. The fixture supports seamless 0-10V dimming and features a power factor of at least 0.9, maximum THD of 20%, driver efficiency of at least 87%, and integrated driver surge protection.
Electrical Specifications
Related Products
Complete your setup with these recommended 4 products.
Performance
Total Luminaire Lumens: 2,230 / 2,980 / 3,720 lm

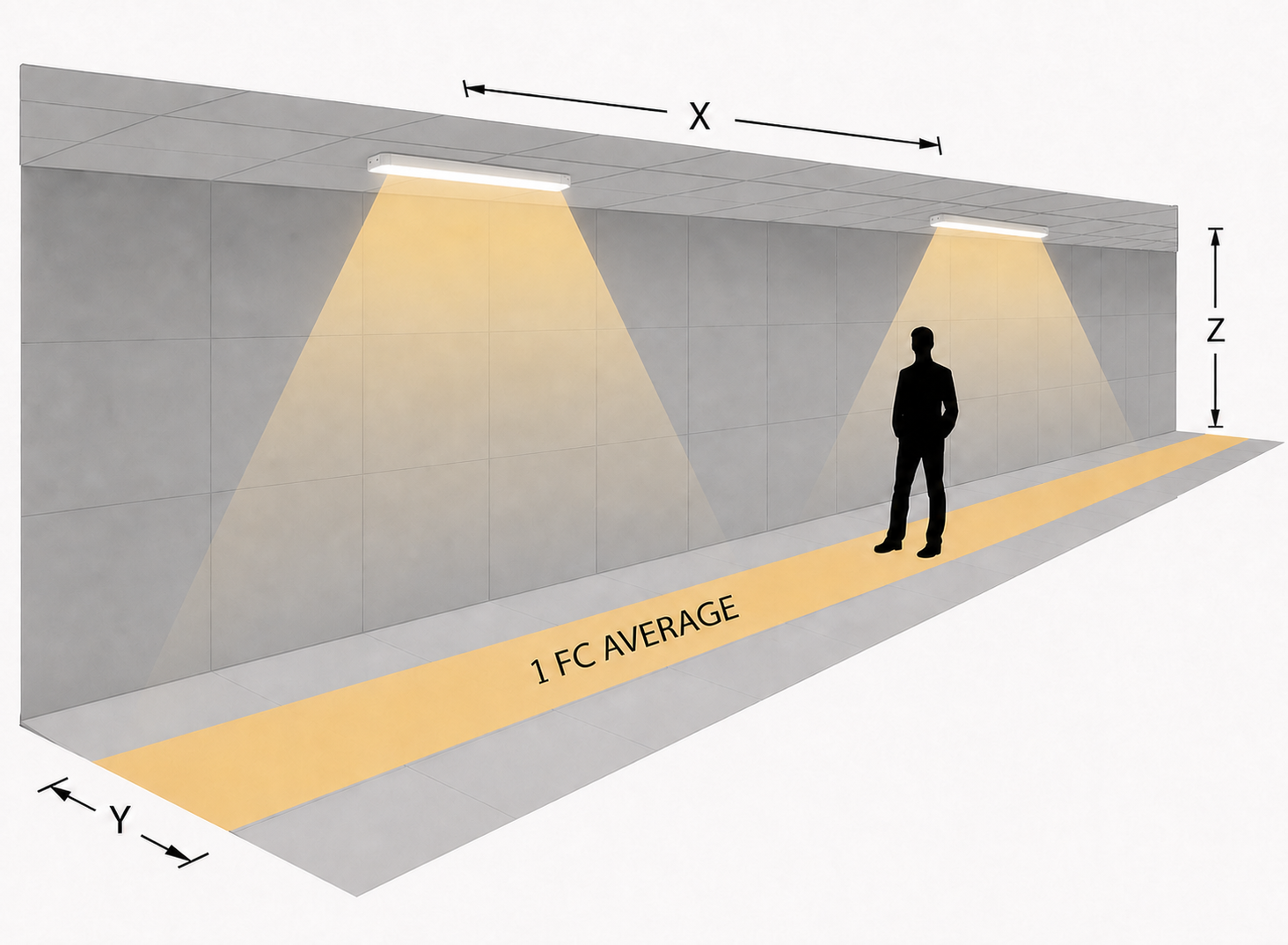

Emergency Lighting Spacing Diagram
