Commercial Lighting | Canopy and Garage Fixture - Canopy and Garage Fixture
Base Code: ES-PG-B4-H1-WH
Items marked FAST SHIP typically ship same day if order is placed before noon.
$113.00
Key Features
- Field-selectable wattage (70/80/90W)
- Selectable CCT (30/40/50K)
- High-efficacy LED performance up to 140 lm/W
- Sensor Ready
- Durable die-cast aluminum construction
Safety Codes and Compliance
- UL/cUL listed
- IP65 wet location rated
- BUG rated optics (B2-U5-G3)
- Backed by a 5-Year warranty
Mounting Options
- Surface mount
Built for the ceiling nobody looks at, so the ground below always does.
The Canopy and Garage Fixture is a wet-location LED fixture built for parking structures, fuel canopies, and other exposed ceiling applications.
Field-selectable 70/80/90W output keeps one fixture useful across garage levels with different lighting needs, while the IP65 sealed design and die-cast aluminum housing shrug off wash-downs, exhaust, and temperature swings.
External sensor and emergency driver support make it adaptable to whatever code the site requires without a different SKU.
Overview
The Essential Series Canopy & Garage Fixture combines selectable wattage and 3 CCT with durable IP65 construction to deliver reliable LED illumination for parking garages, canopies, service stations, warehouses, and other demanding commercial environments. Designed for superior coverage, energy efficiency, and sensor-ready operation, it provides dependable performance in both indoor and outdoor applications.
Installation
Designed for direct surface mounting to ceilings and overhead structures. Its broad light distribution makes it suitable for parking garages, canopies, service stations, covered walkways, warehouses, loading areas, and other indoor or outdoor commercial applications.
Dimensions
| Weight | 1.00 lb |
Warranty
Backed by a 5-year limited warranty.
Catalog Ordering Information
| Catalog Number | Output | Wattage Selectable | Lumens Selectable (@40K) | CCT Selectable | Voltage | Finish |
|---|---|---|---|---|---|---|
| ES-PG-B4-H1-WH | Standard Output | 70/80/90W | 9760/11160/12550 lm | 30/40/50K | 120-277V | White |
Construction
Durable die-cast aluminum housing with a white finish and striped plastic lens. The fixture features IP65 construction for dependable operation in wet and demanding commercial environments.
Illumination
The Essential Series Canopy and Garage Fixture features field-selectable wattage and selectable color temperatures of 3000K, 4000K, or 5000K. Its energy-efficient LED system provides wide, uniform illumination with an efficacy of up to 140 lumens per watt and a CRI greater than 80.
Emergency Operation
An optional externally mounted emergency driver is available to provide backup illumination during a power failure. The emergency driver must be ordered separately and installed in the field.
The fixture is compatible with the EB-08-CM20E Externally Mounted Emergency Driver. Emergency driver unit only; field installation is required.
Operational Temperature
Electrical
Designed for 120-277V, 50/60Hz electrical systems. The fixture supports smooth 0-10V dimming and features a power factor of at least 0.9, maximum THD of 20%, driver efficiency of at least 84%, and 6kV surge protection.
Electrical Specifications
Related Products
Complete your setup with these recommended 4 products.
Performance
Total Luminaire Lumens: 9,760 / 11,160 / 12,550 lm

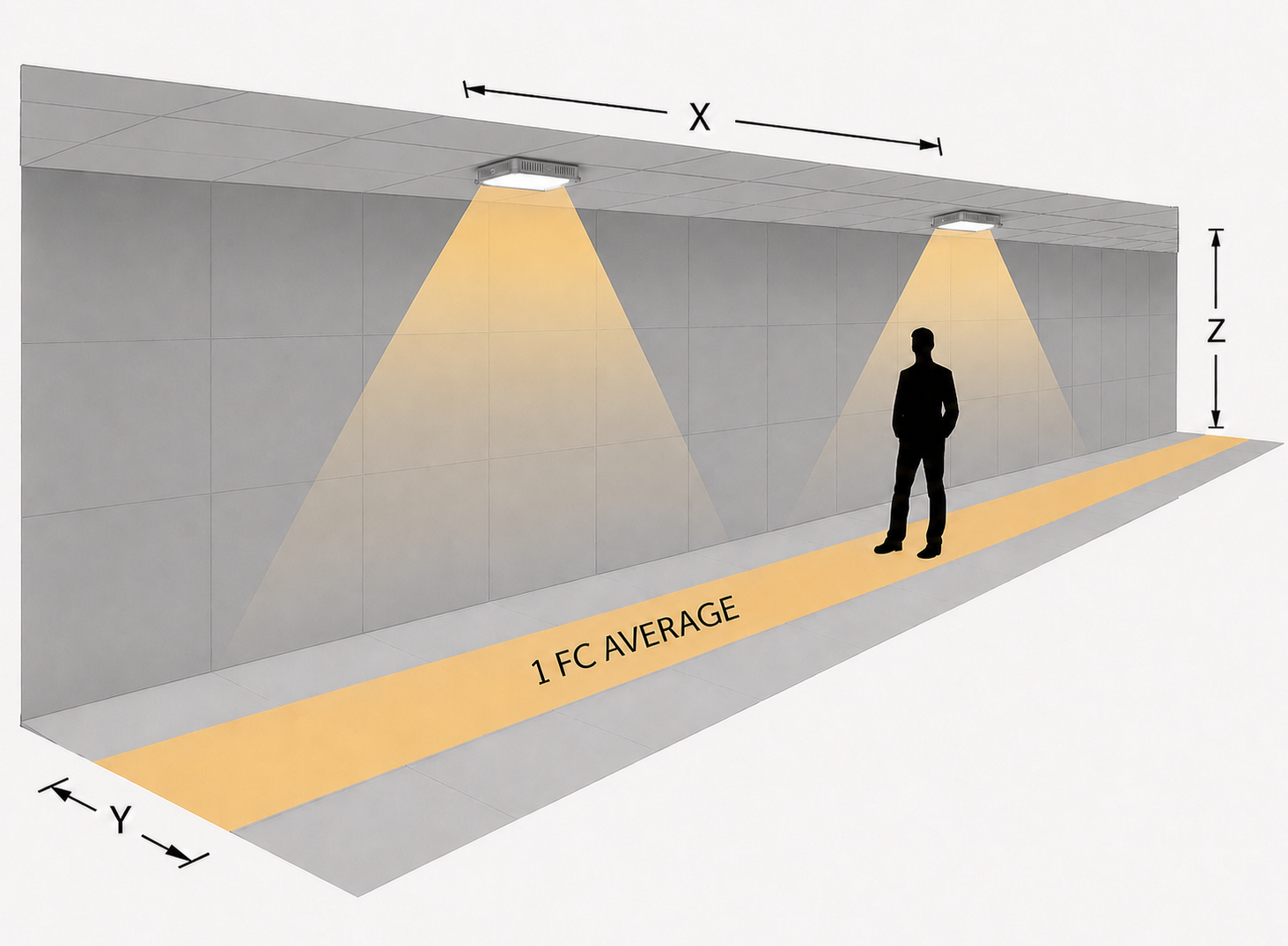

Emergency Lighting Spacing Diagram
Emergency Lighting Spacing Suggestions
| Egress Path Width | 8 ft Mounting Height | 10 ft Mounting Height | 12 ft Mounting Height |
|---|---|---|---|
| 3 ft | 52 ft | 41 ft | 35 ft |
| 3.5 ft | 53 ft | 42 ft | 36 ft |
| 6 ft | 54 ft | 47 ft | 39 ft |
