Commercial Lighting | Troffer 2x2 (EM Driver Installed) - Troffer
Base Code: ES-TR-22-S1-FEM-WH
Items marked FAST SHIP typically ship same day if order is placed before noon.
$140.00
Key Features
- Factory-installed emergency driver
- Field-selectable wattage (15/18/25/30W)
- Selectable CCT (3000K/3500K/4000K/5000K/6500K)
- High efficacy up to 150 lm/W
- Smooth 0-10V dimming with dim-to-off
- Sensor Ready
Safety Codes and Compliance
- DLC Premium listed
- UL certified for damp locations
- IC rated for insulated ceilings
- Tested to LM-79 and LM-80 standards
- Backed by a 5-Year warranty
Mounting Options
- Grid ceiling
- Recessed drywall
- Surface mount
Code-ready before it leaves the box.
The 2×2 Troffer with its emergency driver installed at the factory instead of the field, for grid ceilings that also serve as part of the egress path.
Same field-selectable wattage and CCT range as the standard troffer.
Installation
Designed for installation in standard ceiling grids. Optional drywall and surface-mount frames allow the fixture to be installed in recessed drywall ceilings or directly on ceiling surfaces. Suitable for offices, schools, healthcare facilities, retail spaces, conference rooms, and other commercial interiors.
Dimensions
| Weight | 1.00 lb |
Catalog Ordering Information
| Catalog Number | Size | Wattage Selectable | Lumens Selectable (@40K) | CCT Selectable | Voltage | Finish |
|---|---|---|---|---|---|---|
| ES-TR-22-S1-FEM-WH | 2x2 | 15/18/25/30W | 2250/2770/3660/4620 lm | 30/35/40/50/65K | 120-277V | White |
Construction
Durable sheet-metal housing with a white finish and frosted center-basket lens. The fixture provides soft, low-glare illumination with a clean architectural appearance. It is IC rated and UL certified for use in damp locations.
Illumination
The Essential Series Center Basket Troffer features field-selectable wattage and five selectable color temperatures: 3000K, 3500K, 4000K, 5000K, and 6500K. Its energy-efficient LED system delivers up to 150 lumens per watt with a CRI greater than 80.
Emergency Operation
Both fixture sizes are available with a factory-installed emergency driver. The emergency-equipped model must be selected when ordering.
Operational Temperature
Temperature Rating: -4°F to 122°F (-20°C to 50°C)
Electrical
Designed for 120-277V, 50/60Hz electrical systems. The fixture supports seamless 0-10V dimming with dim-to-off operation between 0.1V and 0.5V. It features a power factor of at least 0.9, maximum THD of 20%, typical driver efficiency of 86%, and flicker-free driver performance.
Electrical Specifications
Related Products
Complete your setup with these recommended 3 products.
Performance

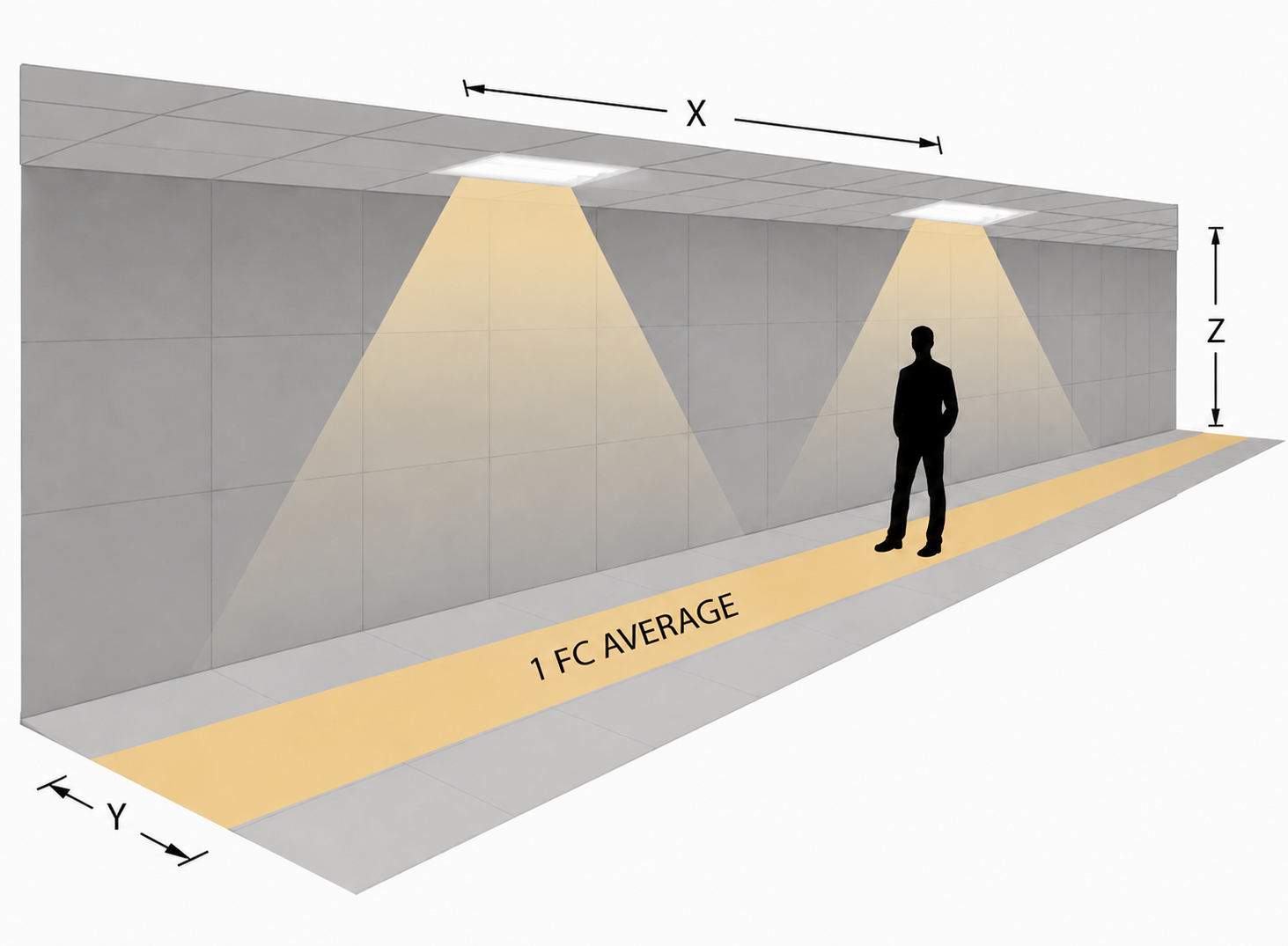

Emergency Lighting Spacing Diagram
Emergency Lighting Spacing Suggestions
| Egress Path Width | 8 ft Mounting Height | 10 ft Mounting Height | 12 ft Mounting Height |
|---|---|---|---|
| 3 ft | 45 ft | 56 ft | 57 ft |
| 3.5 ft | 46 ft | 56 ft | 58 ft |
| 6 ft | 50 ft | 60 ft | 60 ft |
