Commercial Lighting | Vapor Tight Fixture 4 ft - Vapor Tight Fixture
Base Code: ES-VT-L4-S1-WH
Items marked FAST SHIP typically ship same day if order is placed before noon.
$71.00
Key Features
- IP65 vapor-tight construction for wet and dusty environments
- Field-selectable wattage (30/40/50W)
- Selectable CCT (30/35/40/45/50K)
- High-efficacy LED performance up to 153 lm/W
- Sensor Ready
- Durable impact-resistant polycarbonate housing
Safety Codes and Compliance
- UL/cUL listed for wet locations
- IP65 wet location rated; installation requirements apply
- LEDs rated for 50,000 hours (L70)
- Backed by a 5-Year warranty
Mounting Options
- Surface mount
- Suspended mount
Built for the room that gets hosed down.
A sealed, IP65 fixture for spaces where moisture, dust, or washdown chemicals would kill an open fixture fast — parking structures, mechanical rooms.
Selectable 30/40/50W and a gasketed housing keep it running in conditions that void most warranties.
Overview
The Essential Series Vapor Tight Fixture combines field-selectable wattage and 5 CCT tuning with rugged IP65 construction for reliable LED performance in demanding commercial and industrial environments. Designed for warehouses, parking garages, utility areas, and other wet or dusty locations, it delivers exceptional efficiency, long life, and flexible installation options.
Installation
Designed for direct surface mounting as the standard installation method. An optional suspension kit is available for suspended mounting. Proper installation and sealing procedures must be followed to maintain the fixture’s IP65 wet-location rating.
Ideal for warehouses, parking garages, utility areas, washdown areas, workshops, and other wet or dusty commercial environments.
Dimensions
| Weight | 1.00 lb |
Warranty
Backed by a 5-year limited warranty.
Catalog Ordering Information
| Catalog Number | Size | Wattage Selectable | Lumens Selectable (@40K) | CCT Selectable | Voltage | Finish |
|---|---|---|---|---|---|---|
| ES-VT-L4-S1-WH | 4 ft | 30/40/50W | 4660/6210/7750 lm | 30/35/40/45/50K | 120-277V | White/Gray |
Construction
Rugged, impact-resistant polycarbonate housing with a frosted striped polycarbonate lens and white/gray finish. The sealed IP65 construction protects the fixture against moisture and dust when installed according to the manufacturer’s instructions.
Illumination
The Essential Series Vapor Tight Fixture features field-selectable wattage and five selectable color temperatures: 3000K, 3500K, 4000K, 4500K, and 5000K. Its high-efficiency LED system delivers up to 153 lumens per watt with a CRI greater than 80.
Emergency Operation
An optional emergency driver is available to provide backup illumination during a power failure. The emergency driver must be ordered separately and installed in the field.
Both the 4-foot and 8-foot fixtures are compatible with the EB-08-CM08N Emergency Driver. Emergency driver unit only; field installation is required.
Operational Temperature
Electrical
Designed for 120-277V, 50/60Hz electrical systems. The fixture supports smooth 0-10V dimming and features a power factor of at least 0.9, maximum THD of 20%, driver efficiency of at least 91%, and 6kV surge protection.
Electrical Specifications
Related Products
Complete your setup with these recommended 1 products.
Performance
Total Luminaire Lumens: 4,660 / 6,210 / 7,750 lm

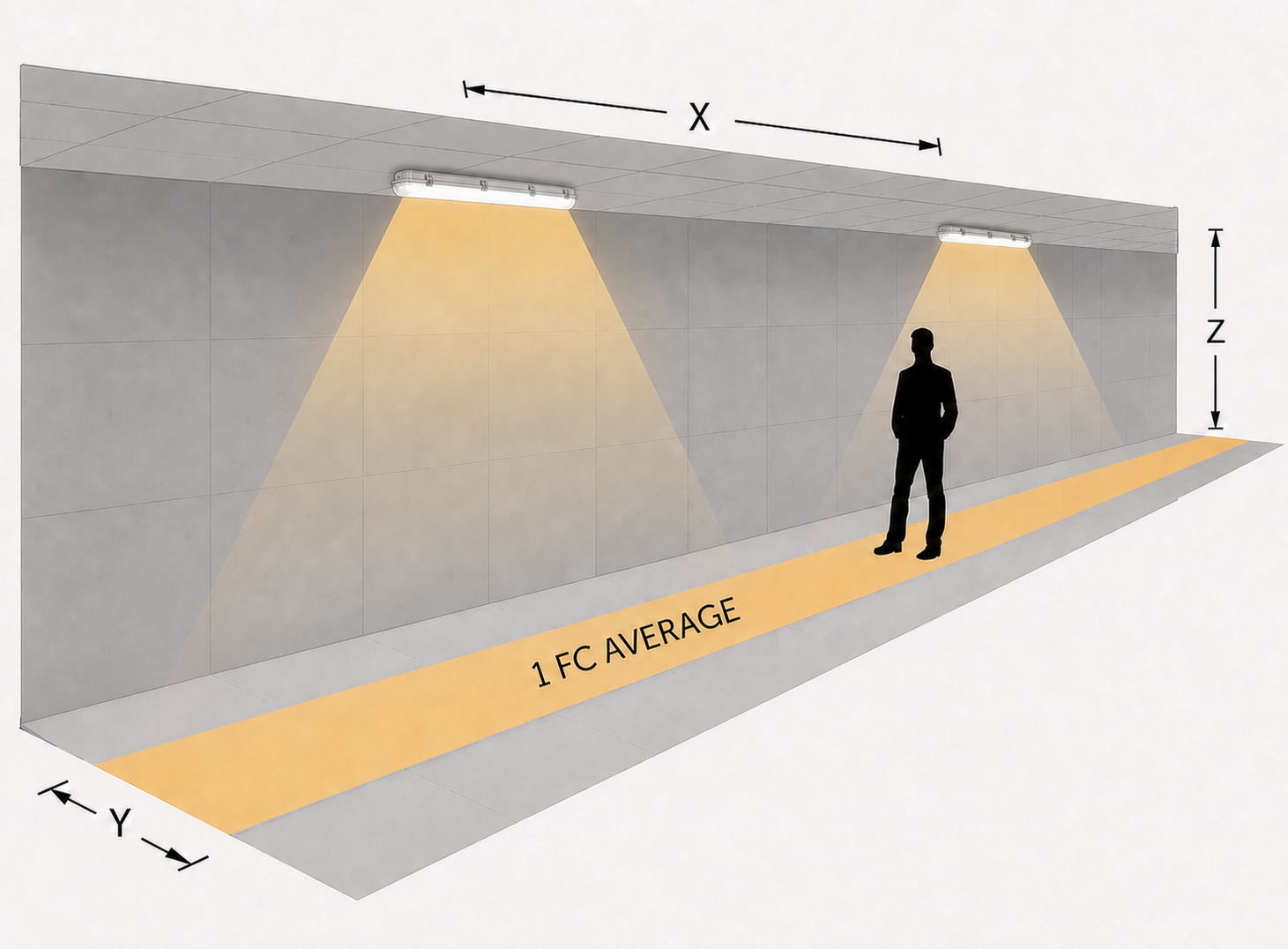

Emergency Lighting Spacing Diagram
Emergency Lighting Spacing Suggestions
| Egress Path Width | 10 ft Mounting Height | 12 ft Mounting Height | 14 ft Mounting Height |
|---|---|---|---|
| 3 ft | 60 ft | 55 ft | 46 ft |
| 3.5 ft | 60 ft | 54 ft | 47 ft |
| 6 ft | 64 ft | 55 ft | 49 ft |
