Commercial Lighting | Adjustable Wall Pack (High Output) - Adjustable Wall Pack
Base Code: ES-WPA-B2-H1-BZ
Items marked FAST SHIP typically ship same day if order is placed before noon.
$114.00
Key Features
- Adjustable optical head for precise light aiming
- Field-selectable wattage (40/60/80W)
- Selectable CCT (30/40/50K)
- High-efficacy LED performance up to 150 lm/W
- IP65 vapor-tight construction
- Sensor Ready
Safety Codes and Compliance
- UL/cUL listed
- DLC Premium listed
- IP65 wet location rated
- BUG rated optics (B2-U2-G1)
- Backed by a 5-Year warranty
Mounting Options
- Surface mount
More reach, same aim-it-yourself housing.
The high-output adjustable wall pack pairs the hinged, aimable housing with 40/60/80W of selectable output — enough to cover a full elevation or a longer walkway from a single mounting point, without losing the ability to redirect the beam after install.
Overview
The Essential Series Adjustable Wall Pack (High Output) combines field-selectable wattage and 3 CCT tuning with an adjustable optical head for precise light distribution. It delivers durable IP65 performance, flexible aiming, and energy-efficient LED illumination for building exteriors, walkways, loading areas, and commercial facilities.
Installation
Designed for direct surface mounting on exterior walls. The adjustable head allows the fixture’s light distribution to be aimed after installation.
Ideal for building exteriors, entrances, walkways, loading areas, service areas, and other commercial outdoor applications.
Dimensions
Head in Standard/Closed Position
- Width: 9 15/16 in. (253 mm)
- Height: 11 1/4 in. (286 mm)
- Depth: 7 in. (178 mm)
Head in Fully Extended Position
- Maximum height: 13 1/8 in. (334 mm)
- Maximum depth: 13 1/8 in. (334 mm)
- Width: 9 15/16 in. (253 mm)
| Weight | 1.00 lb |
Warranty
Backed by a 5-year limited warranty.
Catalog Ordering Information
| Catalog Number | Output | Wattage Selectable | Lumens Selectable (@40K) | CCT Selectable | Voltage | Finish |
|---|---|---|---|---|---|---|
| ES-WPA-B2-H1-BZ | High Output | 40/60/80W | 5130/7700/10300 lm | 30/40/50K | 120-277V | Bronze |
Construction
Durable die-cast aluminum housing with a bronze finish and polycarbonate lens. The fixture features an adjustable optical head for precise light aiming and is IP65 rated for wet outdoor locations.
Illumination
The Essential Series Adjustable Wall Pack features field-selectable wattage and selectable color temperatures of 3000K, 4000K, or 5000K. Its high-efficiency LED system delivers up to 150 lumens per watt with a CRI greater than 80.
Emergency Operation
An optional emergency driver is available to provide backup illumination during a power failure. The emergency driver must be ordered separately and installed in the field.
Operational Temperature
Temperature Rating: -40°F to 122°FElectrical
Designed for 120-277V, 50/60Hz electrical systems. The fixture supports smooth 0-10V dimming and features a power factor of at least 0.9, maximum THD of 20%, driver efficiency of at least 91.7%, and 6kV surge protection.Electrical Specifications
- 40W: 5,130 lumens
- 60W: 7,700 lumens
- 80W: 10,300 lumens
Performance
Total Luminaire Lumens: 5,130 / 7,700 / 10,300 lm
- High Output: 5,130-10,300 lumens
- Selectable CCT: 3000K/4000K/5000K
- Beam distribution: 100° × 80°
- BUG rating: B2-U2-G1
- Maximum efficacy: Up to 150 lumens per watt
- CRI: Greater than 80

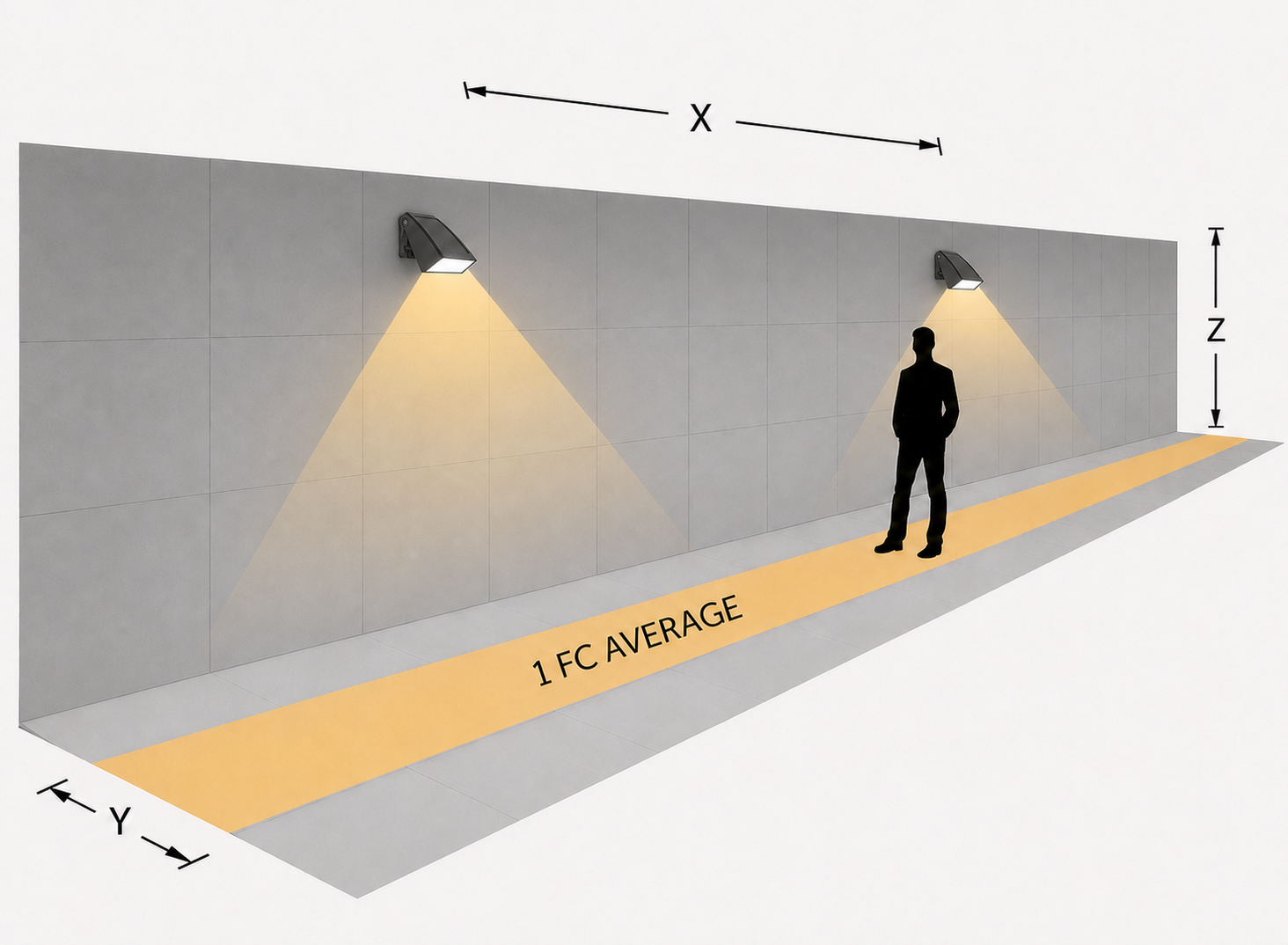

Emergency Lighting Spacing Diagram
Emergency Lighting Spacing Suggestions
| Egress Path Width | 20 ft Mounting Height | 22 ft Mounting Height | 25 ft Mounting Height |
|---|---|---|---|
| 3 ft | 80 ft | 73 ft | 64 ft |
| 3.5 ft | 82 ft | 74 ft | 65 ft |
| 6 ft | 87 ft | 80 ft | 72 ft |
Compatible Accessory
| Accessory | Compatible Product |
|---|---|
| EM Driver | EB-08-YM08S |
