Commercial Lighting | Wall Pack (Standard Output) - Wall Pack
Base Code: ES-WPS-B2-S1-BZ
Items marked FAST SHIP typically ship same day if order is placed before noon.
$85.00
Key Features
- Field-selectable wattage (20/30/40W)
- Selectable CCT (30/40/50K)
- Integrated photocell with bypass capability
- High-efficacy LED performance up to 152 lm/W
- Durable die-cast aluminum housing
Safety Codes and Compliance
- UL/cUL listed
- DLC Premium listed
- IP65 wet location rated
- Backed by a 5-Year warranty
Mounting Options
- Surface mount
Set the light level in the field, not back at the warehouse.
A surface-mount LED wall pack for building perimeters, entries, and exterior walkways.
Selectable 20/30/40W output and CCT let a single SKU handle everything from a side-door light level to a full loading-dock wash, and IP65 sealing keeps the lights on through rain, snow, and direct sun without a separate wet-rated version.
Overview
The Essential Series Wall Pack (Standard Output) combines field-selectable wattage and 3 CCT tuning with durable IP65 construction for dependable outdoor LED illumination. It delivers energy-efficient performance, broad coverage, integrated photocell control, and reliable operation for building perimeters, entrances, walkways, and commercial facilities.
Installation
Designed for direct surface mounting on exterior walls. The integrated photocell can be enabled or bypassed according to the application. Suitable for building perimeters, entrances, walkways, loading areas, and other commercial outdoor locations.Dimensions
| Weight | 1.00 lb |
Warranty
Backed by a 5-year limited warranty.
Catalog Ordering Information
| Catalog Number | Output | Wattage Selectable | Lumens Selectable (@40K) | CCT Selectable | Voltage | Finish |
|---|---|---|---|---|---|---|
| ES-WPS-B2-S1-BZ | Standard Output | 20/30/40W | 3020/4540/6050 lm | 30/40/50K | 120-277V | Bronze |
Construction
Durable die-cast aluminum housing with a bronze finish and striped glass lens. The fixture is IP65 rated for wet locations and includes an integrated photocell with bypass capability. Designed for dependable outdoor performance with 6kV surge protection.Illumination
The Essential Series Wall Pack features field-selectable wattage and color temperature settings of 3000K, 4000K, or 5000K. Its high-efficiency LED system delivers broad, uniform illumination for dependable outdoor lighting.
- Standard Output: 20/30/40W, producing 3,020/4,540/6,050 lumens
- Maximum efficacy: Up to 152 lumens per watt
Emergency Operation
An optional emergency driver is available for applications requiring backup illumination during a power failure. The emergency driver must be ordered separately and installed in the field.
Compatible with the EB-8W-08300DO Emergency Driver for both Standard Output and High Output models. Emergency driver unit only; field installation is required.Electrical
Designed for 120-277V, 50/60Hz electrical systems. The fixture supports smooth 0-10V dimming and features a power factor of at least 0.9, maximum THD of 20%, driver efficiency of at least 90%, and 6kV surge protection.Related Products
Complete your setup with these recommended 1 products.
Performance
Total Luminaire Lumens: 3,020 / 4,540 / 6,050 lm
- Standard Output: 3,020-6,050 lumens
- Color temperatures: 3000K / 4000K / 5000K
- Beam pattern: H94° × V96°
- CRI: Greater than 80
- Maximum efficacy: Up to 152 lumens per watt

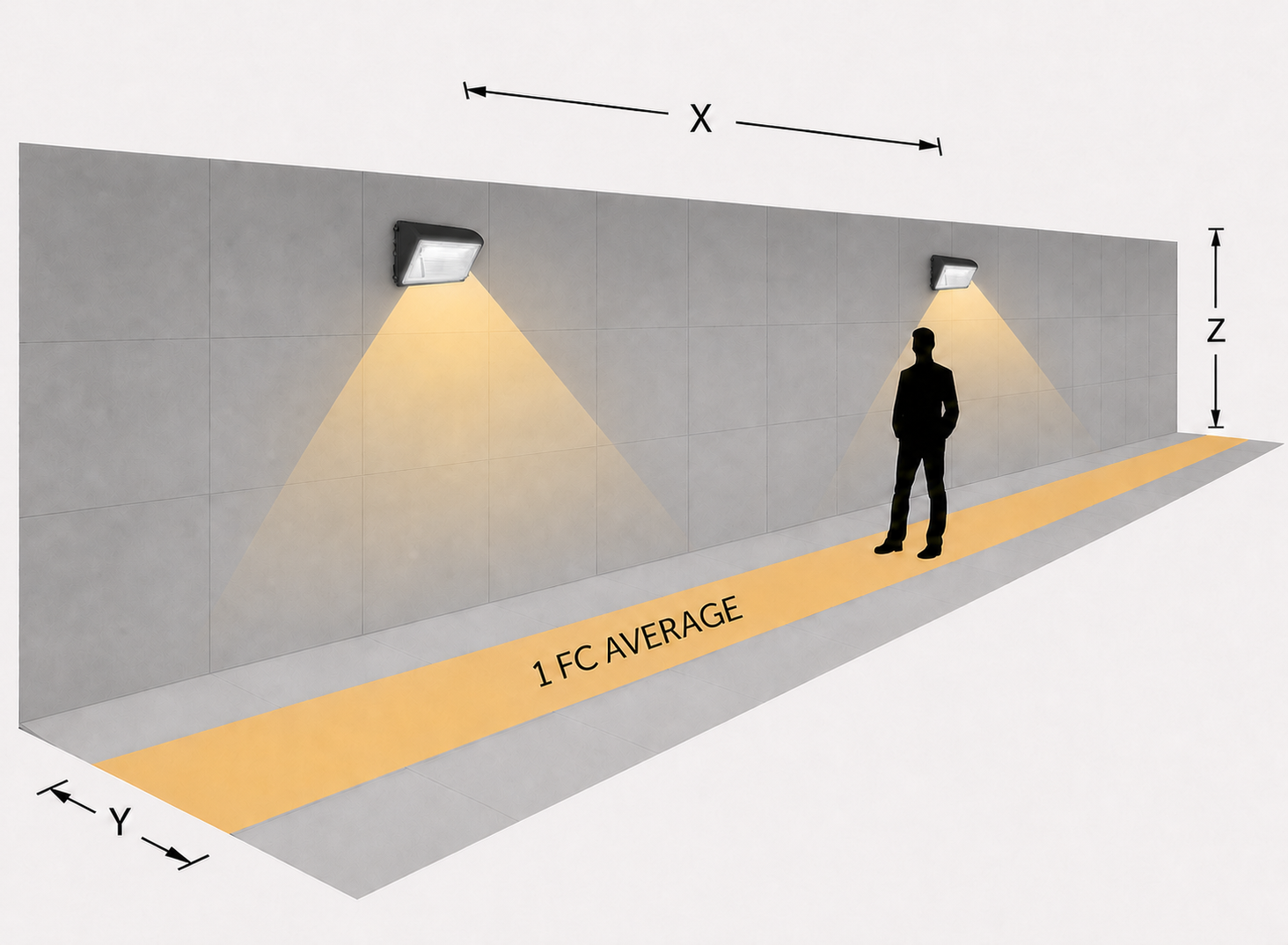

Emergency Lighting Spacing Diagram
Emergency Lighting Spacing Suggestions
| Egress Path Width | 13 ft Mounting Height | 15 ft Mounting Height | 18 ft Mounting Height |
|---|---|---|---|
| 3 ft | 43 ft | 36 ft | 30 ft |
| 3.5 ft | 44 ft | 37 ft | 31 ft |
| 6 ft | 44 ft | 39 ft | 33 ft |
