LED Exit Sign/Egress Sign, Plastic Sign | Single Sided | MRI MAGNET ALWAYS ON

Base Code: EX-CU-MRI-MAGNET-ALWAYS-ON

Items marked FAST SHIP typically ship same day if order is placed before noon

LED Exit Sign/Egress Sign, Plastic Sign | Single Sided | MRI MAGNET ALWAYS ON
Processing...
$137.00

Lead Time:
5-7 Day

Qty

A LED "MRI MAGNET ALWAYS ON" Plastic Egress Sign. This hardwired LED unit is made from sturdy thermoplastic material, and is available with a battery backup system. The included mounting canopy allows for multiple mounting positions.
LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • Mounting bracket for ceiling, wall mount (flag pole style) or flush mount included
  • Injection-molded, VO flame retardant, high impact housing
  • Constant uniform illumination
  • 120/277VAC
  • Short circuit protection / voltage surge protection
  • Green LEDs and black housing available upon request

Specifications

Dimensions (May Vary by Model)
Height7.5"
Depth1.75"
Length12.25"
Weight5.00 lb

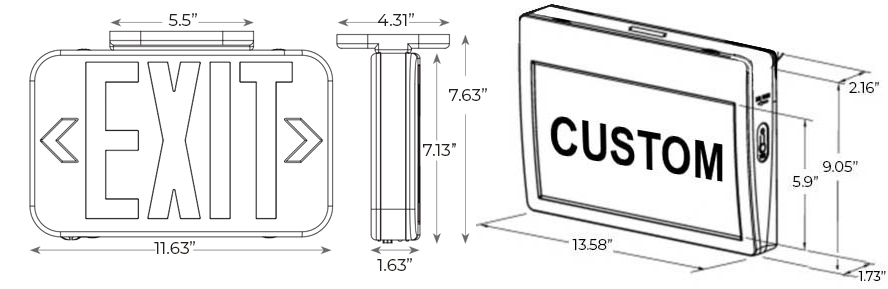

LED Exit Sign/Egress Sign, Plastic Sign | Single Sided | MRI MAGNET ALWAYS ON Dimensions

Construction

The EX series is constructed from injection molded, V-0 flame retardant, high impact thermoplastic housing.  Available in white and black housing.

Illumination

The EX series illumination is achieved by use of long-lasting, efficient ultra bright red or green LEDs.

Emergency Operation

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes.  The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EX series is designed with a maintenace-free 4.8V 700mAh NiCad battery that provides a minumum emergency duration of 90 minutes.  Rechardge time of the battery is 24 hours.  Operation temperature range is 20°F(-7°C) to 95°F (35°C).

Electrical Components

Dual voltage input 120/277VAC operation.  LED display indicates AC/ON.  An external push button test switch with battery backup units alows maintenace personnel to quicly determine the operation status of the unit.  Unit offers surge protected, solid state circutry.

Installation

The EX is suitable for surface wall, side and top mounting via included canopy.  Snap together design allows for quick and easy installation.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions


Customer Questions & Answers
Post a question and have an expert answer



Q Aziz • 04/29/2021, 1:47:39 PM Can you change the text to: Alarm is armed and will sound upon exiting. See manager for assistance. ????
A Exit Light Co. We do offer custom wording on our signs, however the more words you use the small the letters will be. Please see the following link to customize.https://www.exitlightco.com/product/EX-CU.html
