Cast Aluminum Red LED Exit Sign

Base Code: ELCCA-R


Cast Aluminum Red LED Exit Sign
Processing...

Get Help

Lead Time: Self Testing Units, 3-5 Days

Qty

An efficient cast aluminum Exit Sign that is architecturally pleasing.  Faceplate includes knock-out left and right directional arrows.  Works on either 120 or 277 VAC.  Allows for both top or lateral mounting.

Compatible Battery:  BAA-48R

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This unit uses energy effecient and long lasting LED's.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC and NFPA 101 Life Safety Code
  • Listed for damp location
  • NiCad 4.8V 700mAh battery backup option
  • Universal 120/277 VAC operation
  • LED Energy savings
  • Universal canopy included
  • Spec grade cast aluminum housing
  • Universal knock-out chevrons
  • Push-to-test switch
  • Charge rate / power on LED indicator light

Previous Product Codes: CA-R, CA-ABR

Specifications

Dimensions
Width12.75"
Height8.625"
Depth2"
Weight8.00 lb

Whats included?

  • RED LED Exit Sign
  • One "EXIT" Faceplate (with optional knockout arrows)
  • One Blank Faceplate
  • Matching Second "EXIT" Faceplate (extra cost)
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation

Construction

The ELCCA-R series is constructed from spec grade die-cast aluminum housing. Aluminum face with black housing is standard.

Illumination

The ELCCA-R series illumination is achieved by use long-lasting, efficient ultra bright red or green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The ELCCA-R series is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 20°F (-7°C) to 95°F (35°C).

Self-Testing Option

Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform testing for five minutes every 28 days and 90 minutes every six months.

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The ELCCA-R is suitable for surface wall, side and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.

PDF Download   View Installation Instructions

Dimensions

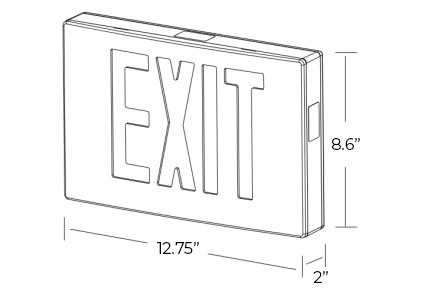

Cast Aluminum Red LED Exit Sign Dimensions
