High End Cast Aluminum Red Exit Sign with Emergency Lights

Base Code: ELCCOMBOCA-R


High End Cast Aluminum Red Exit Sign with Emergency Lights
Processing...
$220.00

Get Help
Qty

A beautiful combination of exit sign and emergency lighting, housed in premium grade die cast aluminum. Works on either 120 or 277 VAC. Long lasting, low maintenance NiCad battery. No heavy, short-lived sealed lead acid batteries! Faceplate includes knock-out left/right arrows. Can be installed flush (single-sided only), top or side mount.
This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This unit uses energy effecient and long lasting LED's.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Damp Location rated
  • All LED light! No SLA batteries, uses long lasting NiCads that are very low maintenance
  • Two fully adjustable, glare-free LED lighting heads
  • Universal 120/277 VAC operation
  • Die cast mounting canopy included (allows top, end or back mount)
  • Universal wall mounting knock-out pattern
  • LVD (low voltage disconnect prevents battery from deep discharge)
  • Spec grade faceplate and premium housing
  • Universal knock-out chevrons
  • Push-to-test switch
  • Charge rate / power on LED indicator light

Specifications

Dimensions
Width12.5"
Height11.75"
Depth2.375"
Weight10.00 lb

Whats included?

  • RED LED Combo Exit Sign / Emergency Light
  • One "EXIT" Faceplate (with optional knockout arrows)
  • One Blank Faceplate
  • Matching Second "EXIT" Faceplate (extra cost)
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • NiCad Battery - Must connect the battery after installation

Construction

Unique modern design provides spec-grade EXIT sign with LED lamp heads in one low-profile, premium grade aluminum housing unit.

Illumination

Uses two 1W high performance premium grade, ultra-bright white LED lamps.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The ELCCOMBOCA-R Combo Aluminum Exit Sign is designed with a maintenance-free 8.4V 1700mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Photometrics

Total Luminaire Lumens : 85.7 Per Lamp

Download .IES File

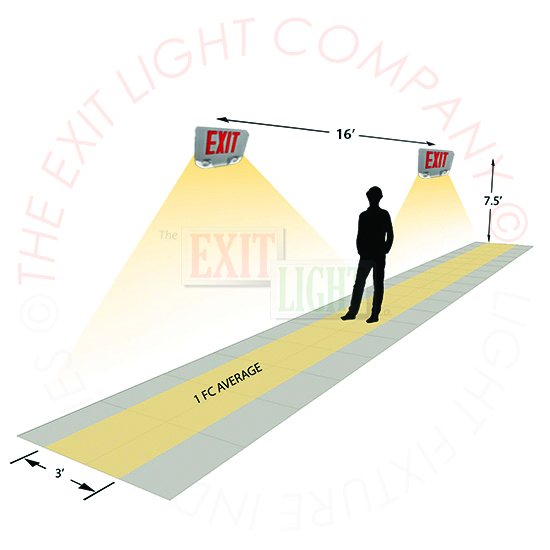

At a mounting height of 7.5ft, multiple units illuminate 1 FC spaced at 16ft for a 3ft path of egress and spaced at 12ft for a 6ft path of egress.

High End Cast Aluminum Red Exit Sign with Emergency Lights Photometrics

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The ELCCOMBOCA-R is suitable for wall, side or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

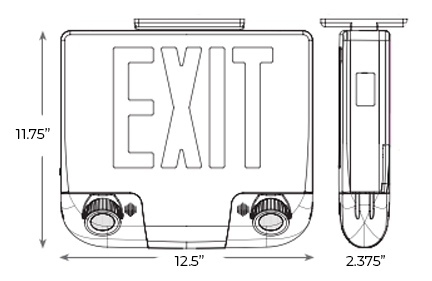

Dimensions

High End Cast Aluminum Red Exit Sign with Emergency Lights Dimensions
