Low Level All LED Exit Light Combo
Base Code: COMBOLO-G
![Low Level All LED Exit Light Combo](graphics/en-US/cssui/blank.gif)
![Processing... Processing...](themes/levels/images/img_ajax_processing.gif)
![This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).](https://d11a0uwhosx1i3.cloudfront.net/mm5/graphics/00000001/web/ul_logo.jpg)
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
![LED Lighting](https://d11a0uwhosx1i3.cloudfront.net/mm5/graphics/00000001/web/led_logo.gif)
LED Lighting
This product uses energy efficient and long lasting LED's.
![Battery Included](https://d11a0uwhosx1i3.cloudfront.net/mm5/graphics/00000001/web/battery_included_logo.gif)
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC and NFPA 101 Life Safety Code, OSHA, Local and State Codes
- Listed for damp location
- 120 or 277 VAC operation
- Injection-molded, VO flame retardant, high impact housing
- Charge rate/power "ON" LED indicator light
- 90 Minute battery backup time
Specifications
Dimensions (May Vary by Model) | |
Height | 10.12" |
Depth | 1" |
Length | 14.12" |
Weight | 5.00 lb |
What's included?
- Green LED Exit Sign Combo
- Installation Instructions & Hardware (Inside Unit)
- NiCad Battery - Must connect the battery after installation
Construction
The COMBOLO Low Level Combo LED Exit Sign is constructed from injection molded, 5VA flame retardant, high impact thermoplastic housing. Easy snap-out chevron directional indicators (Arrows).
Illumination
The COMBOLO Low Level Combo LED Exit Sign illumination is achieved by using long-lasting, efficient ultra bright red or green LEDs for the EXIT portion and white LEDs for the emergency light portion. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.
Emergency Operation
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The COMBOLO Low Level Combo LED Exit Sign is designed with a maintenance-free 3.6V NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
Operational Temperature
Temperature Ratings | |
Standard Option | 0°C to 50°C / 32°F to 122°F |
Electrical Components
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Features unique bi-color LED indicator that alerts occupant on battery condition (Green-Normal Status Red-Check Battery). Unit offers surge protected, solid state circuitry.
Installation
The COMBOLO Low Level Combo LED Exit Sign is suitable for surface wall installation. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained

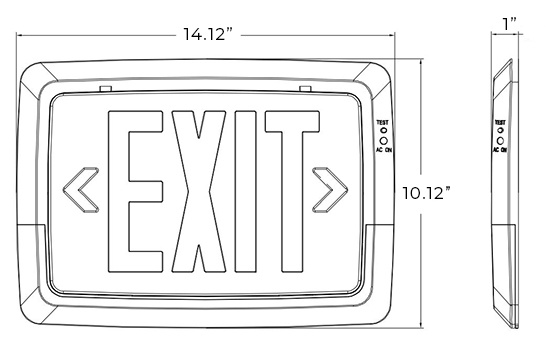

Dimensions
![Low Level All LED Exit Light Combo Dimensions](https://d11a0uwhosx1i3.cloudfront.net/mm5/graphics/00000001/COMBOLO_Dimensions.jpg)
