Emergency LED Driver | Micro Inverter 120VAC Output | 25 Watt | Up to 200W Dimmable Fixture
Base Code: EB-LEDMP-25W
Items marked FAST SHIP typically ship same day if order is placed before noon
$70.00
The EB-LEDMP-25W Emergency Driver converts standard LED light fixtures into code-compliant emergency lighting during power outages. UL 924 Listed, CSA Certified, and RoHS Compliant, this emergency LED driver is designed to deliver reliable illumination for a minimum of 90 minutes in the event of power failure. Easy to install and maintain, it includes an illuminated test switch with multiple functions for quick testing and system monitoring.
General Applications
- LED Troffer Lights
- LED Recessed Lights
- LED Vapor Lights
- LED Linear Lights
- LED Down Lights
- LED Panel Lights
- LED Linear High Bay Lights
Wiring Made Simple
LED Driver is designed with easy to follow wiring schematic
LED Lighting
This product uses energy efficient and long lasting LED's.
High Voltage
LED Driver is designed to support high voltage fixtures
Features
- UL924 Listed, UL Listed for Factory or Field Installations
- CSA C22.2 NO.141
- Meets NEC, IBC, and Life Safety Code Emergency Light Requirements
- High efficiency performance meets CA Title 20
- Ideal for many kinds of indoor LED lighting
- Simple Wiring
- Self-Testing (monthly/yearly)
- Push to test button and AC Light
- Single Flex
Specifications
| Dimensions (May Vary by Model) | |
| Width | 2.16" |
| Height | 1.3" |
| Length | 15" |
| Weight | 10.00 lb |
What's included?
- LED Driver
- Installation Instructions
- Wire Nuts
- Push to Test Plate
Construction
The EB-LED-MP-25W emergency driver housing is constructed from durable steel and finished with a red powder-coated paint.
Emergency Operation
The EB-LED-MP-25W emergency driver provides a minimum of 90 minutes of battery backup time.
Battery - Battery Backup
The EB-LED-MP-25W emergency driver features a maintenance-free Li-ion battery that provides a minimum emergency runtime of 90 minutes. The battery fully recharges in 24 hours.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 41°F to 122°F |
Self-Testing Option
The EB-LED-MP-25W includes a built-in control/monitor circuit that, when enabled, automatically performs a 30-second discharge test once per month and a full 90-minute discharge test once per year. During routine testing, the self-testing emergency driver simulates an AC power failure, causing the unit to automatically switch to emergency mode. The unit monitors LED load operation, battery voltage, and emergency duration. If the system is operating properly, the unit will return to normal mode. If a problem is detected, the indicator light will flash according to the failure condition (see Troubleshooting Guide) until the issue is corrected and the unit passes the next test.
Electrical Specifications
| Model No. | EB-LED-MP-25W |
| Output Power | 25W |
| Output Voltage | 120V |
| Input Voltage | 100-347V AC, 50/60HZ |
| Input Power | 12W Max |
| Input Current | ≤180mA |
| Battery Type | Lithium |
| Recharge Time | ≥24 Hours |
| Emergency Time | ≥90 Minutes |
Installation
The EB-LED-MP-25W emergency driver can be installed in a variety of indoor fixtures, including LED troffers, strip fixtures, can lights, and LED ceiling panels. We recommend confirming the electrical specifications to ensure full compatibility with the existing LED driver.
Mounting Configurations Explained
View Installation Instructions

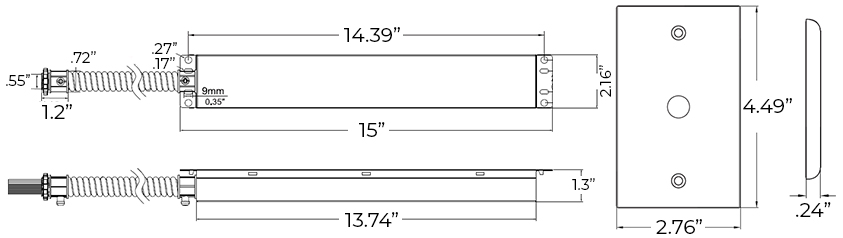

Dimensions
