Emergency LED Driver | Wet Location Rated Micro Inverter 120VAC Output | 10 Watt
Base Code: EB-LEDMCW
Items marked FAST SHIP typically ship same day if order is placed before noon
$150.00
The EB-LEDMCW is a versatile emergency LED driver designed to provide reliable backup power for a wide range of indoor and outdoor luminaires. Featuring an integrated driver and battery pack within a durable die-cast aluminum housing, it delivers stable AC (sine wave) output and supports both factory-installed and field retrofit applications. Compatible with 0–10V dimming systems and suitable for 10–100W lamps (including ≤10W fixtures with or without dimming), the EB-LEDMCW is engineered for low-temperature environments and wet location use. Equipped with automatic self-check functionality, overcharge and over-discharge protection, and a long-life Ni-Cd battery pack, it ensures dependable emergency performance in demanding conditions.
Wiring Made Simple
LED Driver is designed with easy to follow wiring schematic
LED Lighting
This product uses energy efficient and long lasting LED's.
High Voltage
LED Driver is designed to support high voltage fixtures
Features
- UL Listed for wet location applications
- Meets NEC, IBC, and Life Safety Code Emergency Light Requirements
- Integrated Emergency Kit with Combined Driver and Battery Pack
- Supports both pre-installed and on-site retrofit scenarios
- Ideal for many kinds of outdoor LED lighting
- Durable aluminum die-cast housing
- Simple Wiring
- Push to test button and AC Light
Specifications
| Dimensions (May Vary by Model) | |
| Width | 2.2" |
| Height | 3.6" |
| Length | 9.3" |
| Weight | 5.00 lb |
What's included?
- LED Driver
- Installation Instructions
- Wire Nuts
Construction
The EB-LEDMCW features a durable aluminum die-cast housing with a black powder coat finish, providing strength, corrosion resistance, and long-lasting performance in demanding indoor and outdoor environments.
TEST BUTTON/INDICATOR LIGHT
The EB-LEDMCW features an integrated test button with LED status indicator for convenient system monitoring. Pressing the test button activates emergency mode; releasing the button returns the unit to charging mode. A solid red LED indicates normal charging operation.
SELF-CHECK
Upon initial power-up, the EB-LEDMCW automatically performs a functional self-check, during which the red LED indicator will flash slowly. The system verifies lamp compatibility, lamp starting current, lamp starting time, dimming start voltage, and dimming slope. Once the test is successfully completed, the unit resumes normal operation and the red LED remains solid. This self-check will not repeat unless the unit enters rest mode or the battery is disconnected.
Emergency Operation
The EB-LEDMCW emergency driver provides a minimum of 90 minutes of battery backup time.
Battery - Battery Backup
The EB-LEDMCW utilizes a 12V 3Ah Ni-Cd battery pack designed to provide a minimum 90-minute emergency runtime. The battery fully recharges within 24 hours, ensuring the unit is ready for subsequent emergency operation.
Operational Temperature
| Temperature Ratings | |
| Standard Option | -4°F to 122°F |
REST MODE
The EB-LEDMCW includes a built-in rest mode designed to extend battery shelf life by minimizing leakage current during long-term storage. To activate rest mode, press and hold the test button for more than 3 seconds while in emergency mode. When enabled, the battery is fully disconnected from the inverter, significantly reducing leakage current and allowing for extended storage life.
Electrical Specifications
| Input Power | 8W |
| Input Current | 100mA Max |
| Power Factor | >0.5 |
| Output WIre L-Out N-Out | AC 3A Max |
| Lamp Power that must be with 0-10V or 1-10V Dimmer Function | ≥10W |
| Lamp Power at 1V | ≤10W |
| Startup Time | <500ms |
| Recharge Time | ≥24hrs |
| Compatible Luminnare Power | 10-100W |
Installation
The EB-LEDMCW is suitable for both indoor and outdoor LED lighting installations, but is specifically designed for outdoor and harsh-environment applications. It can be installed with a wide range of luminaires including LED troffers, LED panels, LED strip fixtures, wall packs, vapor-tight fixtures, canopy lights, high bays, area lights, and flood lights. Its durable housing and wet-location capability make it ideal for exterior-mounted fixtures and low-temperature environments.
Mounting Configurations Explained
View Installation Instructions

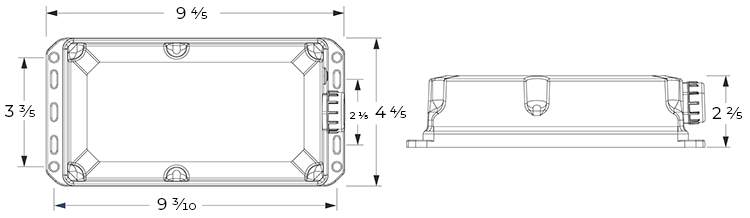

Dimensions
