Emergency LED Driver | Ribbon 30-60VDC 8W Output

Base Code: EB-LEDR

Items marked FAST SHIP typically ship same day if order is placed before noon

Emergency LED Driver | Ribbon 30-60VDC 8W Output
Processing...

Qty
The EB-LED Emergency Driver turns your low profile LED light fixtures into code-compliant emergency lights. This LED drives provide emergency lighting for a minumum of 90 minutes in an event of power failure. Easy to install and maintain. Includes an illuminated test switch with different functions.


General Applications (great for low-profile light fixtures):

  • LED Troffer Lights
  • LED Recessed Lights
  • LED Vapor Lights
  • LED Linear Lights
  • LED Panel Lights
Simple Wiring Logo

Wiring Made Simple
LED Driver is designed with easy to follow wiring schematic

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Simple Wiring Logo

High Voltage
LED Driver is designed to support high voltage fixtures

Features

  • UL Listed for factory and field installation
  • Meets NEC, IBC, and Life Safety Code Emergency Light Requirements
  • High efficiency performance meets CA Title 20
  • Compact Design
  • Ideal for low profile indoor LED lighting
  • Simple Wiring
  • Self-Testing (monthly/yearly)
  • Single Flex
  • Constant Output Power
  • Built-in Lithium Battery

Specifications

Dimensions
Width1.26"
Height.83"
Length12.51"
Weight5.00 lb

What's included?

  • LED Driver
  • Installation Instructions
  • Wire Nuts
  • Ribbon Test Button Module
  • Push-in Connectors

Construction

The EB-LEDR emergency driver is constructed from durable steel.

Emergency Operation

The EB-LEDR emergency driver provides a minimum of 90 minutes of battery backup time

Battery - Battery Backup

The EB-LEDR emergency driver is designed with a maintenance-free lithium battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option41°F to 122°F

Self-Testing Option

The EB-LEDR emergency driver will perform an initial self-diagnostic test for 3 seconds after the diver has been properly installed followed by a second test after 120 minutes to confirm the wiring and battery output. The driver will perform monthly self-test every 30 days for 3 seconds; this will test for wiring and battery output. *A blinking LED or completely off means failed test.

Electrical Components


Model No. EB-LEDR-8W
Input Power 8W
Frequency 50/60Hz
Input Voltage 100-347V AC
Efficiency ≥80%
Input Current ≤100mA
Emergency Output Voltage Range30-60V DC
Emergency Time90 mins

Installation

The EB-LEDR emergency driver can be installed in different types of indoor LED troffers, LED panels, vapor lights, linear lights, most low profile LED fixtures. We recommend confirming electrical specs to make sure the LED Driver is fully compatible.

Mounting Configurations   Mounting Configurations Explained

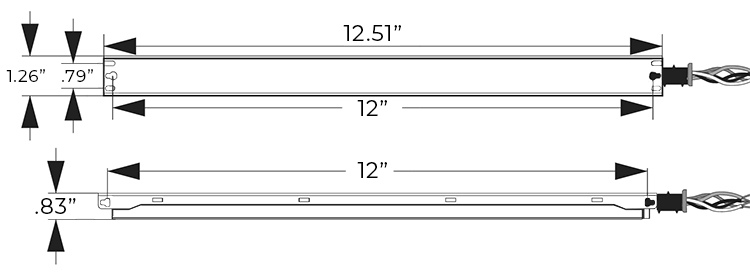

Dimensions

Emergency LED Driver | Ribbon 30-60VDC 8W Output Dimensions
