Emergency LED Driver | High Bay Lighting | Industrial | 170V DC

Base Code: EB-UFO

Items marked FAST SHIP typically ship same day if order is placed before noon

Emergency LED Driver | High Bay Lighting | Industrial | 170V DC
Processing...
$310.00

Lead Time: 60 Days

Qty
The EB-UFO Emergency Driver turns your high bay LED light fixtures into code-compliant emergency lights. The powerful LED driver provide emergency lighting for a minumum of 90 minutes in an event of power failure. Easy to install and maintain. Includes remote control tester.

General Applications:

  • LED UFO Highbay Lights
  • Highbay Warehouse Lights
  • Industrial Lighting

Simple Wiring Logo

Wiring Made Simple
LED Driver is designed with easy to follow wiring schematic

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Simple Wiring Logo

High Voltage
LED Driver is designed to support high voltage fixtures

Features

  • Complies with UL924 standards and CSA 22.2, No. 141 for USA and Canada
  • CEC Title 20 with BC Compliance
  • UL Listed for field or factory installation
  • Simple Wiring - Directly connects to AC input of UFO LED driver
  • High output voltage
  • Built-in junction box
  • Optimized design for UFO highbay fixtures

Specifications

Dimensions
Width5.6"
Height10.75"
Diameter5.6"
Weight5.00 lb

What's included?

  • LED Driver
  • Installation Instructions
  • Wire Nuts
  • Steel Hook and Ring

Construction

The EB-UFO emergency driver is constructed from durable cast aluminum.



Emergency Operation

The EB-UFO emergency driver provides a minimum of 90 minutes of battery backup time in case of power loss.

Battery - Battery Backup

The EB-UFO emergency driver is designed with a maintenance-free Li-ion battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option41°F to 122°F

Self-Testing Option

The EB-UFO emergency driver will perform an initial self-diagnostic test for 3 seconds after the diver has been properly installed followed by a second test after 120 minutes to confirm the wiring and battery output. The driver will perform monthly self-test every 30 days for 3 seconds; this will test for wiring and battery output. *A blinking LED or completely off means failed test.

Electrical Components


Model No. EB-UFO-40W
Input Voltage 100-347V AC, 50/60Hz
Output Voltage 170V DC
Emergency Power 40W
Battery Type Lithium
Recharge Time ≥24 Hours
Emergency Time ≥90 Minutes

Installation

The EB-UFO emergency driver can be installed in different types of indoor UFO LED lights, LED highbay lights, warehouse lighting, industrial lighting. We recommend confirming electrical specs to make sure the LED Driver is fully compatible.

Mounting Configurations   Mounting Configurations Explained

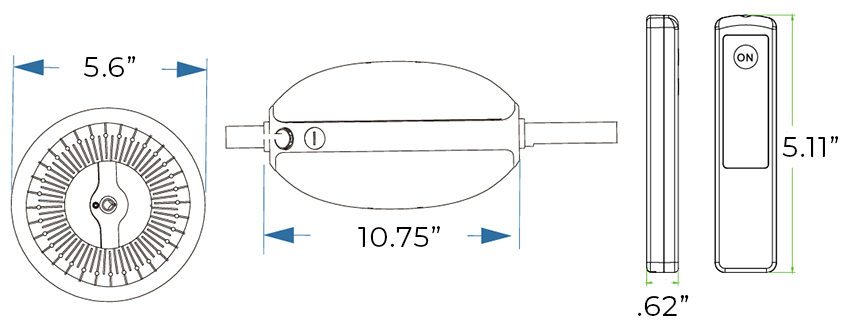

Dimensions

Emergency LED Driver | High Bay Lighting | Industrial | 170V DC Dimensions
