Remote Head Capable Industrial Emergency Light | 12 Volt | 50 or 100 Watt | Optional Lamp Heads
Base Code: EL-HD12
Items marked FAST SHIP typically ship same day if order is placed before noon
$140.00
An efficient and secure 12V Heavy Duty Emergency Light. Includes 12V 12Ah maintenance-free batteries, works on either 120 or 227 VAC.
The EL-HD12 emergency light can be ordered with 2 lamp heads or no lamp heads.
Easily extend your lighting requirements by connecting remote heads to the EL-HD12 unit. The unit will act as the main power source and provide power to the remote heads in case of a power outage.
No Lamp Option: Designed to function as a power bank, providing power to remote heads rather than having built-in headlamps. This configuration allows for greater flexibility in installation, as it can support remote lighting fixtures with a total power capacity of up to 50W or 100W, depending on the selected model. Ideal for applications requiring customized emergency lighting solutions.
Compatible Battery: B6V12A
Compatible Remote Head(s):
LED: RH-NY (Indoor Use), RHB-SWP (Outdoor Use)
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
Incandescent
This unit produces Incandescent light.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- UL Listed for dry locations
- Universal 120/277 VAC (60Hz) input
- Compact low profile design in neutral finish
- Optional two adjustable lamp heads
- Environmentally-coated, solid state charger
- Automatic low voltage disconnect (LVD)
- Push-to-test switch
- Charge rate / power-on indicator light
Previous Product Codes: EL-50-HD12
Specifications
| Dimensions (May Vary by Model) | |
| Width | 12.6" |
| Height | 14" |
| Depth | 3.25" |
| Weight | 25.00 lb |
What's included?
- Heavy Duty Emergency Light
- Installation Instructions & Hardware
- 2 or 4 (Depending on Wattage Capacity Option) SLA Batteries - Must connect the batteries after installation (Located inside unit)
Construction
The EL-HD12 Heavy Duty Emergency Light has an Injection-molded, engineering-grade, 5VA flame retardant, high-impact thermoplastic construction housing.
Illumination - Incandescent Model
The EL-HD12 Industrial Emergency Light can be configured with (2) 7W, 9W, 12W, or 18W adjustable lamps. The unit is also available with no lamps that allows additional remote head lamps to be connected for optimal lighting.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The EL-HD12 Emergency Light comes with maintenance-free 6V 10Ah rechargable sealed lead acid batteries. 50W units are equipped with (2) 6V 10Ah batteries and 100W units are equipped with (4) 6V 10Ah batteries.
Operational Temperature
| Temperature Ratings | |
| Series | Temperature |
| Standard Option | 77°F to 104°F |
Illumination - LED Model
Ultra-bright, energy-efficient, long-life white LED adjustable lamp heads deliver exceptional illumination, providing up to 100 feet of center-to-center spacing with a 6-foot path of egress at a 15-foot mounting height. Each lamp head operates at 6.0 watts, featuring 12 LEDs at 0.50 watts each for optimal brightness and performance. Designed for versatility, the adjustable glare-free PAR-type lamp heads include an all-inclusive assembly with the lamp, reflector, and lens, ensuring precise light distribution and enhanced visibility in emergency situations.
Remote Head Capable Option
The remote head capability option allows the EL-HD12 unit to supply power to multiple remote heads. The number of remote heads supported will vary depending on wattage model and remote head wattage. The LED model offers 38W (50W Model) and 88W (100W Model )of remote head capacity. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).
Electrical Components
Universal dual 120/277V voltage ensures compatibility with various electrical systems, making installation seamless. The internal solid-state transfer switch automatically connects the internal battery to the lamp heads, providing a minimum of 90 minutes of emergency illumination during power outages. A fully automatic, solid-state two-rate charger efficiently recharges a discharged battery within 24 hours, ensuring reliable operation. For easy monitoring, the unit features a charge rate/power “ON” LED indicator light and a push-to-test switch, allowing for mandated code compliance testing. Additionally, the low voltage disconnect (LVD) function prevents deep battery discharge, extending battery life and maintaining optimal performance.
Installation
The EL-HD12 Industrial Emergency Light is suitable for wall installation. Back cover is designed with universal knockouts for multiple installation configurations. Unit includes side and top knockouts for conduit feed applications.
Mounting Configurations Explained
View Installation Instructions

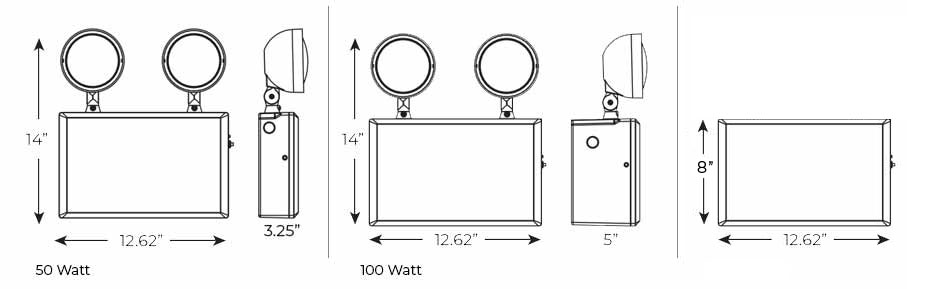

Dimensions
View Common Questions or Ask Your Own Below
Post a question and have an expert answer
Q
Kevin • 07/17/2019, 5:44:40 PM
How many lumens and what is the recommended mounting height and spacing?
A
Exit Light Co.
The standard 9w heads have an output of 135 lumens each. The maximum mounting height for these units is 8ft. We suggest contacting your local fire marshal, who can determine the distance needed between each fixture.
