Remote Head | Gray Housing | Single or Double | Multi-Voltage | Weather Proof

Base Code: RHB-SWP

Items marked FAST SHIP typically ship same day if order is placed before noon

Remote Head | Gray Housing | Single or Double | Multi-Voltage | Weather Proof
Processing...

Lead Time: 7-10 Days

Qty

Easily increase available emergency light by attaching this remote lamp head to your existing remote head capable emergency light.

Compatible Units (Battery Backup + Remote Head Capable Option Must be Selected)

Emergency Light(s): EL-2EL-M2, and EL-LWET

Combo Exit Sign(s): COMBO2COMBOJR2, and COMBOLP
and COMBOLG

Exit Sign(s): LEDJR

LED Lighting

LED Lighting
This unit uses energy efficient and long lasting LED's.

Features

  • Meets UL 924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
  • Adjustable 8 LED lamp head
  • Multi-Volt: 3/6/9/12V
  • Constructed from premium grade die-cast aluminum
  • Adjustable lamp head(s)
  • For use with any remote head capable emergency light or exit sign with matching voltage

Specifications

Dimensions
Height6.62"
Depth4.25"
Length10.37"
Weight4.00 lb

What's included?

  • Single or Double Lamp LED Remote Head
  • Weatherproof Gasket
  • Mounting Hardware

Construction

The RHB-SWP remote head series is constructed from premim grade die-cast aluminum. Housing is sealed and gasketed

Illumination

The RHB-SWP remote head series has long lasting, efficent, and ultra bright LED's with a chrome-plated metallized reflector and lens for optimal light distribution.

Operational Temperature

Temperature Ratings
Standard Option-22°F to 122°F

Electrical Components

Powered from low voltage power source with low voltage wiring (not provided).

Installation

The RHB-SWP LED Remote Head includes a universal mounting base plate with mounting hardware. The distance of maximum run is determined by system voltage, wire gauge and total maximum wattage on the run. Suitable for wall or ceiling mount.

Mounting Configurations   Mounting Configurations Explained

Dimensions

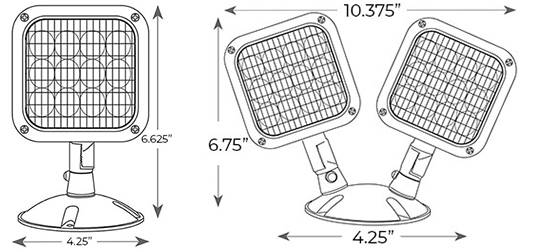

Remote Head | Gray Housing | Single or Double | Multi-Voltage | Weather Proof Dimensions
