Ultra Bright Red Exit Sign w/ Emergency LED Light Pipe Combo

Base Code: COMBOLP-R


Ultra Bright Red Exit Sign w/ Emergency LED Light Pipe Combo
Processing...

Get Help
Qty

Offering a combination of exit signage and emergency lighting in a compact package, this unit, with its pipe-style emergency light, offers even light distribution without the hassle of aiming individual heads!  This low-profile combo unit is perfect for mounting above doors or otherwise restricted spaces. Long lasting, low maintenance NiCad batteries included. No heavy, short-lived sealed lead acid batteries! Faceplate includes knock-out left/right chevrons to customize your signage needs. Can be installed flush (single-sided only), top or side mounted.

Compatible Battery:  BAA-48R900

Compatible Remote Head(s): ELCRHB-L-9V and ELCRHB-WPL-9V

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This unit uses energy effecient and long lasting LED's.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Damp location rated
  • Ultra-bright, energy efficient, ALL LED fixture!
  • Lightweight, injection molded, engineering-grade, 5VA flame retardant, high-impact thermoplastic housing
  • Second faceplate included
  • Dual 120/277 VAC operation
  • Universal mounting canopy included (allows top, end, or back mount)
  • Low voltage disconnect prevents battery from deep discharge
  • Universal knock-out chevrons
  • Push-to-test switch
  • Charge rate / power on LED indicator light

Previous Product Codes: COMBO-LPR

Specifications

Dimensions
Width12.6"
Height8.4"
Depth1.9"
Weight4.00 lb

Whats included?

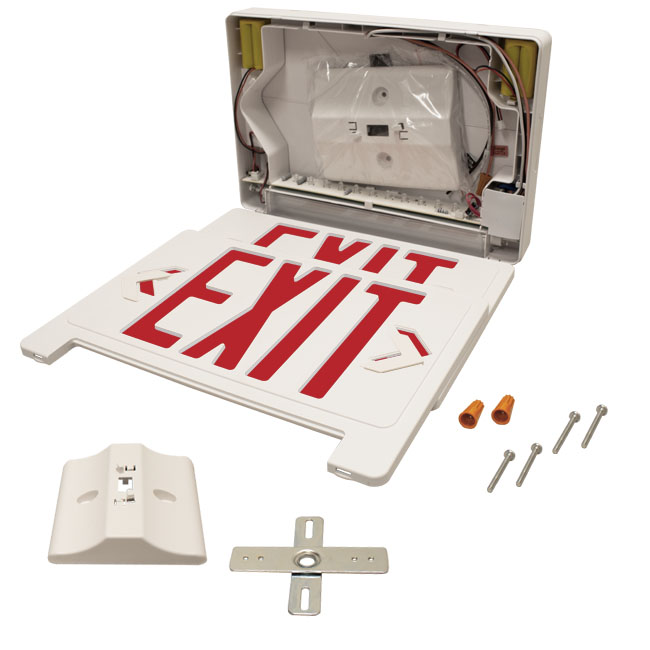

  • RED LED Combo Exit Sign / Pipe Emergency Light
  • Two "EXIT" Faceplates (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • NiCad Battery - Must connect the battery after installation

Construction

The COMBOLP-R series is constructed  from injection molded, impact- and scratch-resistant and corrosion-proof 5VA flame retardant thermoplastic housing. White housing is standard.

Illumination

The COMBOLP-R is designed with a light pipe that includes 36 in-line SM LED's with a reflective cover to provide balanced white light. The light pipe is fully adjustable and can be adjusted without removing the complete unit. The EXIT portion uses long-lasting, efficient red or green LEDs.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.

Battery - Battery Backup

The COMBOLP-R Combo Exit Light is designed with a maintenance-free 4.8V 900mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 32°F (0°C) to 122°F (50°C).

Photometrics

Total Luminaire Lumens : 183.6

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) over a distance of 15ft on a 3ft path of egress and 10ft on a 6ft path of egress.

At a mounting height of 7.5ft, multiple units illuminate 1 FC spaced at 16ft for a 3ft path of egress and spaced at 12ft for a 6ft path of egress.

Ultra Bright Red Exit Sign w/ Emergency LED Light Pipe Combo Photometrics

Self-Testing Option

Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.

Remote Head Capable Option

The remote head capability option allows the COMBOLP-R unit to supply power to up to two additional LED remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The COMBOLP-R is suitable for surface wall and top mounting via included canopy. Unibody housing snaps together with no additional fasteners. Quick connect installation design allows for quick and easy installation. Knock-out chevrons for customized egress signage and field adjustable.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

Dimensions

Ultra Bright Red Exit Sign w/ Emergency LED Light Pipe Combo Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q richard j kenific • 02/06/2019, 3:36:42 PM will a exit light run at 240 volts
A Exit Light Co. This units will run on 120v or 277v. It does not support 240v.
Q Joshua Clark • 03/01/2019, 4:30:55 PM Does the Exit part of the sign light up all the time, or only when the power is lost?
A Exit Light Co. The word EXIT is always on. The emergency light only turns on when the power is out.
Q Joshua Kalua • 07/06/2019, 11:09:57 AM Can 1/2” emt conduit be run directly into side of unit?
A Exit Light Co. The ELCCOMBOLP-R is not designed to support a conduit on the side. The side access is designed to fit the mounting canopy that comes included. However, you can side mount the unit to a junction box and have a conduit run into the junction box.
