Compact Red LED Exit Light Combo | High Output | 180° Adjustable Heads

Base Code: ELCCOMBOJR2-R


Compact Red LED Exit Light Combo | High Output | 180° Adjustable Heads
Processing...

Get Help
Qty

An efficient and secure Exit Sign / Emergency Light Combo. Save money buying this 2-in-1 product. Long lasting, low maintenance NiCad battery. No heavy, short-lived sealed lead acid batteries! Works on either 120 or 277 VAC. Faceplate includes knock-out left/right directional chevrons. Fixture is single or double sided.

Compatible Battery:

Battery Backup / Self Test: BAA-36900 - Battery AA NiCAD 3.6v 900mAh - 1x3 Triangle

Remote Head Capable: BAA-3618 - Battery AA NiCAD 3.6v 1,800mAh - 1x3 Triangle

Compatible Remote Head(s): ELCRHP-L-3V, ELCRHB-L-3V, and ELCRHB-WPL-3V

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This unit uses energy effecient and long lasting LED's.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • All LED light! No SLA batteries, uses long lasting NiCads that are very low maintenance
  • Rated for Damp Locations
  • Fully adjustable 1.5W LED lamp heads each equipped with 12 series-parallel white LEDs
  • Universal mounting canopy for top installation or flush mount to wall
  • Lightweight with snap-together construction for easy installation
  • LED status indicator
  • Injection molded, impact- and scratch-resistant, corrosion-proof, UL 94 V-0 flame retardant housing
  • Push-to-test switch
  • Universal transformer for 120 or 277 VAC operation

Previous Product Codes: COMBORJR2

Specifications

Dimensions
Width18"
Height8.125"
Depth1.75"
Weight10.00 lb

Whats included?

  • RED LED Combo Exit Sign / Emergency Light
  • Two "EXIT" Faceplates (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • NiCad Battery - Must connect the battery after installation

Construction

The ELCCOMBOJR2-R series is contructed from injection molded, impact- and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard.

Illumination

Uses two 1.5W LED lamp heads each equipped with 12 seriesparallel white LEDs. Lamp heads are on track-and-swivel guides. Glare-free lenses provide redundant light source to ensure performance in emergency situations. EXIT portion uses long-lasting, efficient red or green LEDs.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The ELCCOMBOJR2-R Combo Exit Light series is designed with a maintenance-free 3.6V 900mAh NiCad battery (Battery Backup & Self Testing Models) or a 3.6V 1800 mAh battery (Remote Head Capable Models) that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 50°F (10°C) to 104°F (40°C).

Photometrics

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) over a distance of 24ft on a 3ft path of egress and 18ft on a 6ft path of egress.

At a mounting height of 7.5ft, multiple units illuminate 1 FC spaced at 25ft for a 3ft path of egress and spaced at 20ft for a 6ft path of egress.

Compact Red LED Exit Light Combo | High Output | 180° Adjustable Heads Photometrics

Remote Head Capable Option

The remote head capability option allows the ELCCOMBOJR2-R unit to supply power to up to two additional LED remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The ELCCOMBOJR2-R is suitable for surface wall and top mounting via included canopy. Unibody housing snaps together with no additional fasteners. Quick connect installation design allows for quick and easy installation. Knock-out chevrons for customized egress signage and field adjustable.

PDF Download   View Installation Instructions

Dimensions

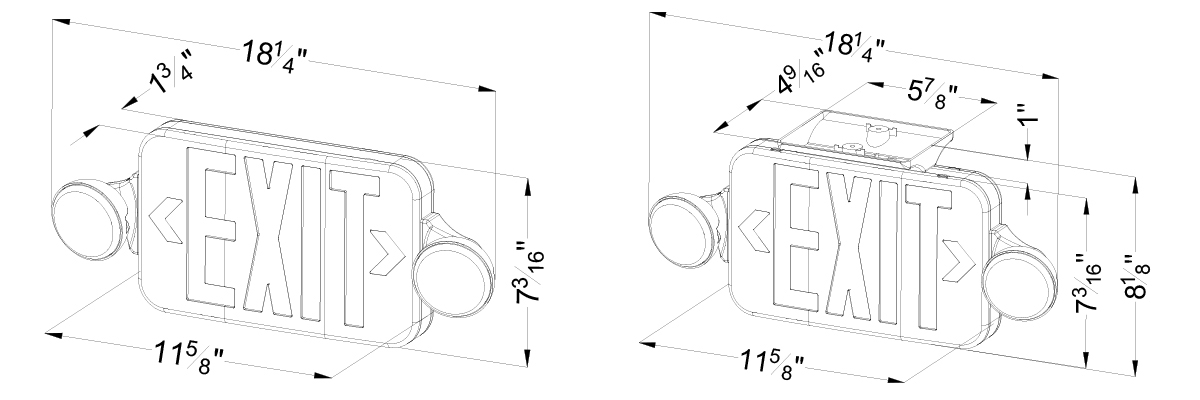

Compact Red LED Exit Light Combo | High Output | 180° Adjustable Heads Dimensions



Customer Questions & Answers
Post a question and have an expert answer



Q Devin • 12/10/2018, 12:33:08 PM Can a remote head be attached to this unit?
A Exit Light Co. This unit has the option to become Remote Head Capable, which allows for up to two additional LED remote heads. Look for the "Compatible Remote Heads" section towards the top of the page to find which units we carry.
