Steel Housing LED Emergency Light | Compact Square | Remote Head Capable

Base Code: EL-HDLED

Items marked FAST SHIP typically ship same day if order is placed before noon

Steel Housing LED  Emergency Light | Compact Square | Remote Head Capable
Processing...
$115.00

Lead Time: Lead Time: 7-10 days

Alternative Product: EL-CHLED

Qty

All new LED Heavy Duty Emergency light with remote head capability. The EL-HLED series is now available with no mounted lamps to be used a main power supply to provide power to LED remote heads in various areas. The emergency light can support up to 4 remote heads while still providing a 90 minute battery backup runtime. Perfect for all around installation and lighting needs.

Compatible Remote Head(s): RHB-WPL, RH-NY, RHB-L
To use with remote heads, please change the Operation Type above to Battery Backup + Remote Head Capable to ensure compatibility.

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • UL Listed for Damp Locations
  • Universal 120/277 VAC (60Hz) input
  • Includes two adjustable LED 1.5W lamp heads - 65 lumens per lamp
  • Remote Capacity of 20W in Standard
  • Automatic low voltage disconnect (LVD)
  • Push-to-test switch
  • Charge rate / power-on indicator light
  • Battery Backup up to 8hrs (See Battery Backup Section)

Specifications

Dimensions (May Vary by Model)
Height11.37"
Depth2.5"
Length12.31"
Weight10.00 lb

What's included?

  • Heavy Duty LED 6V 27W Emergency Light
  • Installation Instructions & Hardware
  • 1 SLA Battery (Located Inside unit)

Construction

The EL-HDLED Heavy Duty Emergency Light is constructed from 20-gauge steel with a white or black finish. Head lamps are constructed from injection-molded engineering grade high-impact thermoplastic.

Illumination

The EL-HDLED Heavy Duty Emergency Light comes with 2 fully adjustable LED heads lamps. Each lamp is equipped with 12 x .125W LEDs providing 65 lumens per lamp (130 total lumens).

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EL-HDLED Emergency Light is equipped with a maintenance-free 6V 12Ah rechargable sealed lead acid batteries. If no remote heads are attached, unit provides a battery backup runtime up to 8 hours.

Operational Temperature

Temperature Ratings
Series Temperature
Battery Backup 20°C to 50°C / 68°F to 122°F

Photometrics

Total Luminaire Lumens : 130lm
Input Wattage: .788W
Input Voltage: 3.6V

Download .IES File

Remote Head Capable Option

Lamp Configuration - 2 LED Lamp Heads: The total capacity is 27W for the entire unit (20W remote capacity). This allows the EL-HDLED unit to supply power to additional 6V remote heads. Lamp Configuration - No Lamps: The unit will be shipped with no lamps, 6V remote head of choice can be connected to the marked wires inside the housing. These remote heads would then operate on the same emergency mode as a standard emergency light would (see Emergency Operation Section).

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The EL-HDLED Heavy Duty Emergency Light is suitable for wall installation via included mounting plate. Includes side and top knockouts for conduit feed applications.

Mounting Configurations   Mounting Configurations Explained

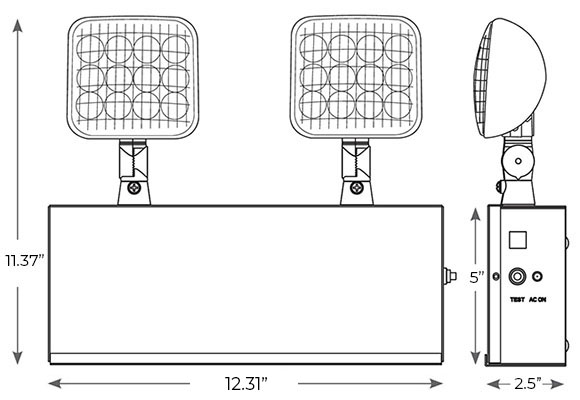

Dimensions

Steel Housing LED  Emergency Light | Compact Square | Remote Head Capable Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Varghese George • 01/28/2023, 11:18:19 AM Up to how many led remote heads can connect on this unit?
A Exit Light Co. The EL-HDLED Emergency light can support up to 4 remote heads while still providing a 90 minute battery backup runtime.
Q John Manganello • 05/10/2024, 6:34:24 AM Does this unit come with the 2 LED heads
A Exit Light Co. This unit has the option to have 2 heads or no heads. Selection must be made in the drop down box under "Lamp Configuration".
Q John Manganello • 05/10/2024, 6:40:31 AM Does this unit come with 2 LED heads and remote capable to run 3 remote RHB-L lights
A Exit Light Co. Lamp Configuration - 2 LED Lamp Heads: The total capacity is 27W for the entire unit (20W remote capacity). This allows the EL-HDLED unit to supply power to additional 6V remote heads.
