Steel Housing LED Emergency Light | Compact Design | NYC Approved | Round Lamps
Base Code: EL-CST
Items marked FAST SHIP typically ship same day if order is placed before noon
$95.00
Newly re-designed steel housing emergency light. Now in compact size and featuring a Ni-Cad battery for a 90-minute battery backup runtime. No more heavy SLA batteries. Available in white housing.
Compatible Battery: 3.6V 1600mAh
ETL US
This item has been tested by ETL US to meet UL924 electrical product safety standards for use in the United States.
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL924, ETL. NFPA 101 Life Safety Code & NEC
- Approved for New York City Code requirements
- Rugged 20 gauge steel Housing
- Universal 120/277 VAC (60Hz) input
- Includes three round adjustable LED lamp heads
- Brown-out protection
- Automatic low voltage disconnect (LVD)
- Push-to-test switch
- Charge rate / power-on indicator light
Specifications
| Dimensions (May Vary by Model) | |
| Height | 5.5" |
| Depth | 2" |
| Length | 12" |
| Weight | 12.00 lb |
What's included?
- Steel NYC Approved Emergency Light
- 3 Lamp Heads (Bug Eye)
- Installation Instructions & Hardware
- Battery - Must connect the battery after installation (Located inside unit)
Construction
The EL-CST Steel Emergency Light is constructed from 20-gauge steel with matte white powder coating for enclosure.
Illumination
The new EL-CST series emergency light features 3 adjustable LED lamp heads.
Emergency Operation
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.
Battery - Battery Backup
The EL-CST Series emergency light has a maintenance-free 3.6V 1600mAh NiCad battery. Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 50°F to 104°F |
Photometrics
Total Luminaire Lumens : 330lm
Suggested mounting height of 7.5ft illuminates 2 footcandle (FC) spaced at 27ft for a 3ft path of egress.
Mounting height of 10ft illuminates 2 footcandle (FC) spaced at 24ft for a 3ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Self-Testing Option
This unit continuously self checks for proper operation. The multi-color LED indicator light will indicate the status after testing and adjust when corrected. The unit will self test in emergency mode for up to the full 90 minute duration to ensure proper operation during an actual power failure.
Electrical Components
Dual 120-277V 50/60Hz input, with brownout protection. Charge rate/power "ON" LED indicator light and push-to-test switch for mandated code compliance testing.
Installation
Easy installation with front access to all components. Suitable for wall installations. Universal J-box mounting pattern found on the back of the unit.
Mounting Configurations Explained
View Installation Instructions

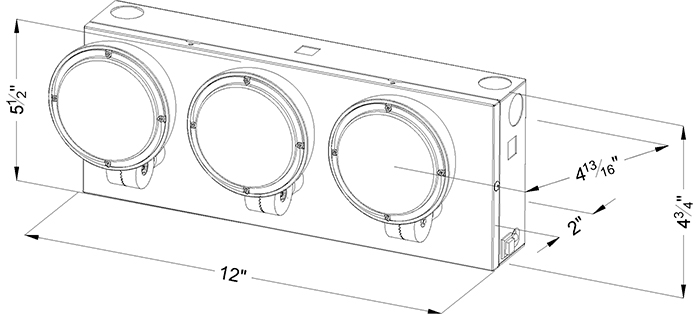

Dimensions
