Extreme High Output LED Emergency Light | Adjustable Lamps| 1162 Lumen

Base Code: EL-EXHO

Items marked FAST SHIP typically ship same day if order is placed before noon

Extreme High Output LED Emergency Light | Adjustable Lamps| 1162 Lumen
Processing...
$215.00

Lead Time: 7-10 Day

Qty

New! This extreme high out put emergency light is our brightest emergency light. This high output LED light packs a punch at 1,100 lumens. Perfect for spaces requiring brighter lighting - provides up to 100-ft center-to-center spacing with a 3-ft path of egress. This fixture provides 90 minutes of emergency lighting, with its lightweight, maintenance-free lithium iron phosphate battery battery. Operates on 120-277 VAC 50/60Hz. Comes with a universal back plate suitable for wall or ceiling installation.

Compatible Battery:  9.6V 3000mAh

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This unit uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Certified to CEC under title 20 regulations
  • Damp location listed
  • Lumen: 1162lm
  • 120-277 VAC 50/60Hz operation
  • Two fully adjustable, glare-free LED lighting heads
  • Push-to-test switch and status indicator
  • Injection-molded, high impact, UV-stabilized, UL 94 VO thermoplastic housing
  • Lightweight with snap-together construction for easy installation

Specifications

Dimensions
Height5.75"
Depth3.18"
Length12.25"
Weight3.00 lb

What's included?

  • White All LED Emergency Light
  • Installation Instructions & Hardware
  • 9.6V 3000 mAh Battery - Must connect the battery after installation (Located inside unit)

Construction

The EL-EXHO series is constructed from injection molded, impact- and scratch-resistant and corrosion-proof, 5V flame retardant thermoplastic housing. White housing is standard.

Illumination

The EL-EXHO emergency light features two 12 piece super bright LEDs providing 1100 lumen. Lamp heads are on track-and-swivel guides. Glare-free lenses provide clear light source to ensure performance in emergency situations.

Emergency Operation

Upon failure of the normal utility power, an internal solid­state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EL-EXHO Emergency Light series is designed with a maintenance-free 9.6V 3000mAh rechargeable lithium iron phosphate battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option32°F to 122°F

Photometrics

Total Luminaire Lumens : 1162lm
Input Wattage: 9.10W
Input Voltage: 9.6V
Amps: .948

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 100ft for a 3ft path of egress.

Standard mounting height of 10ft illuminates 1 footcandle (FC) spaced at 88ft for a 6ft path of egress.

Extreme High Output LED Emergency Light | Adjustable Lamps| 1162 Lumen Photometrics

Remote Head Capable Option

The remote head capability option allows the EL-EXHO unit has a remote capacity of 3.0 watts (standard). The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

Electrical Components

Universal voltage input 120-277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The EL-EXHO is suitable for wall or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.

Mounting Configurations   Mounting Configurations Explained

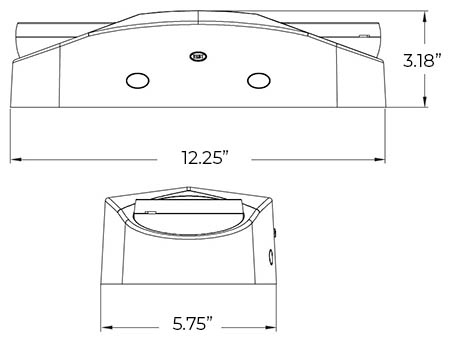

Dimensions

Extreme High Output LED Emergency Light | Adjustable Lamps| 1162 Lumen Dimensions
