Fixed Head Emergency Light | Single or Double Head
Base Code: EL-FH
Items marked FAST SHIP typically ship same day if order is placed before noon
$18.00
NEW fixed-head LED Emergency Light featuring energy-efficient illumination and a durable, low-maintenance NiCad battery with 90 minutes of emergency backup power. Available with one or two heads. Operates on either 120 or 277 VAC and includes a universal mounting plate for quick and easy installation.
Compatible Battery: Double Head 3.6V 600mAH Ni-Cad; Single Head 3.6V 400mAH Ni-Cad
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- Listed for damp location
- LED indicator light with push-to-test switch
- Lightweight, injection molded, thermoplastic housing
- 120/277 VAC operation
- Universal mounting back plate
- Short circuit, voltage surge, brown out and low battery voltage disconnect protected
Specifications
| Dimensions (May Vary by Model) | |
| Height | 4.17" |
| Depth | 2.29" |
| Length | 9.38" |
| Weight | 6.00 lb |
What's included?
- All LED Emergency Light
- Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation (Located inside unit)
Construction
The EL-FH series is constructed from injection-molded, engineer-grade, 5VA flame retardant thermoplastic.
Illumination
EL-FH emergency lamps use long-lasting, efficient ultra bright white LEDs. Fully adjustable 1.8W LED lamp heads equipped with 12 series-parallel white LEDs each. Lamp heads are on track-and-swivel arrangement allowing lamp heads to be fully adjustable.
Emergency Operation
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. If remote head capability is used without connecting additional remote heads, the battery can provide a run-time of 180 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The EL-FH Emergency Lights series is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Single head battery: 3.6V 400mAH Ni-CD. Double head battery: 3.6V 600mAH Ni-CD.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 32°F to 104°F |
Photometrics
Total Luminaire Lumens : 69lm - 124lm
Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 18ft for a 3ft path of egress.
Mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 14ft for a 6ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Electrical Components
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
Electrical Specifications
| Series | Input Voltage | Power Consumption | Current | Discharge Duration | |
|---|---|---|---|---|---|
| EL-FH2 | 120/277VAC 60Hz | 1.4W |
90 Minutes | ||
| EL-FH1 | 120/277VAC 60Hz | 0.8W | 90 Minutes | ||
Installation
The EL-FH is suitable for wall or ceiling mount. Snap together design allows for quick and easy installation. Conduit mount knockout on back plate only.
Mounting Configurations Explained
View Installation Instructions

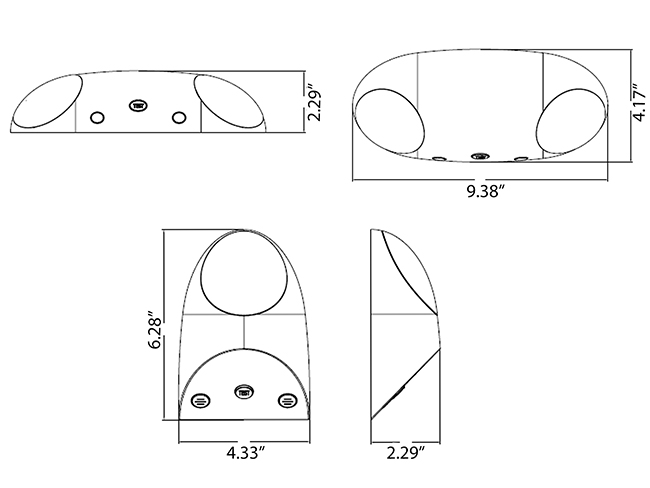

Dimensions
