Value Grade Wet Location LED Emergency Light | NiCad Battery | Cold Temp & 350 Lumen HO Options
Base Code: EL-MWET
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- Wet Location Rated
- Universal 120/277VAC 60Hz
- Fully gasketed corrosion-resistant enclosure
- Includes two high output LED lamps
- Solid state charging circuit
- Short circuit and overload protection on DC output circuit
- Low voltage disconnect (LVD)
- Sealed momentary push-to-test switch
Specifications

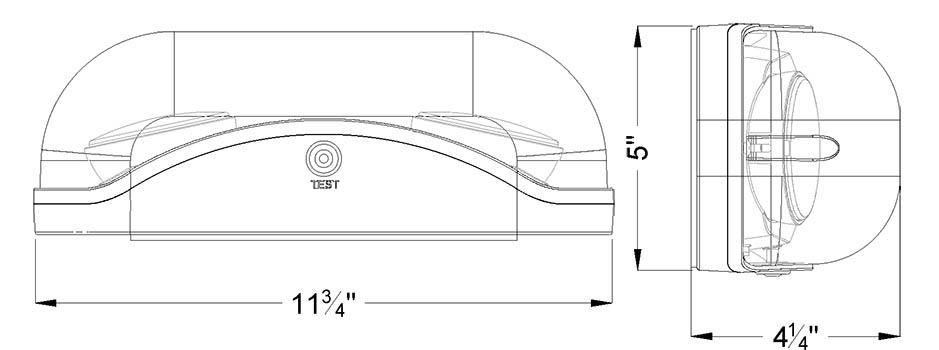

Dimensions (May Vary by Model) | |
Height | 5" |
Depth | 4.25" |
Length | 11.75" |
Weight | 4.00 lb |
What's included?
- Wet Listed All LED Emergency Light
- Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation (Located inside unit)
Construction
The EL-MWET Emergency Light combines functionality with style in a slim and decorative shape that's designed for easy installation. Built with a durable plastic enclosure, it features 5VA flame-retardant and UV-resistant properties, ensuring long-lasting performance and safety. The stainless steel screws provide added corrosion resistance, making it suitable for various environments. Ideal for both form and function, the EL-MWET offers reliable emergency lighting with a sleek design that complements any setting.
Illumination
The EL-MWET Emergency Light is engineered with high-performance SMD 2835 LEDs and a 5000K color temperature, delivering bright, daylight-like illumination. With an impressive L70 lifespan of 50,000 hours, this fixture ensures dependable, long-lasting performance. Available in two lumen output options: Standard Output: Rated at 1 watt per head, providing 175 lumens on initial discharge. High Lumen Model: Rated at 2 watts per head, delivering 350 lumens on initial discharge. The EL-MWET Emergency Light offers tailored lighting power to meet specific needs, making it a reliable solution for any emergency lighting requirement.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The EL-MWET series is designed with a maintenance-free 3.6V NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
Battery Backup: 3.6V 800mAh
High Output: 7.2V 1000mAh
Operational Temperature
Temperature Ratings | |
Standard Option | 32°F to 104°F |
Cold Weather | -4°F to 104°F |
Photometrics
Total Luminaire Lumens : 175-350lm
Input Wattage: 1.1 - 1.7W
Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 28ft for a 3ft path of egress (Battery Backup Model)
Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 37ft for a 3ft path of egress (High Output Model)
Disclosure:
Spacing is measured in lab condition with an assumed open space,
no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor).
Actual spacing may vary depending on what environment the fixture is installed
in.
Self-Testing Option
Electrical Components
Universal voltage input of 120/277VAC 60Hz input. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
Installation
The EL-MWET is a versatile lighting solution, designed for both wall and ceiling mounting. It includes a top-side knockout, making it compatible with conduit applications for easy installation and flexible placement options.
Mounting Configurations Explained
View Installation Instructions
