Connecticut Approved Green LED Exit Sign | Wheelchair Accessibility Symbol

Base Code: EXCT-G

Items marked FAST SHIP typically ship same day if order is placed before noon

Connecticut Approved Green LED Exit Sign | Wheelchair Accessibility Symbol
Processing...
$100.00

Get Help

Lead Time: 5-7 Day

Qty
This White Coated Aluminum ISA Exit Sign is designed to comply with the State of Connecticut Building Code requirements. This exit sign has 6" Green EXIT Lettering with green matching LEDs that provides uniform lighitng. This unit allows for ceiling, side, and surface mounting.
This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924 Damp Location and State of Connecticut Build Code Approved
  • Wheelchair Accessible Symbol
  • NiCad 3.6V 300mAh battery backup option
  • Universal 120/277 VAC operation
  • Universal mounting canopy included
  • Universal mounting pattern for surface mounting to a j-box
  • Low Energy consumption (Less than 5W)
  • Extruded aluminum housing with white finish
  • Selectable chevron directional arrows
  • Push-to-test switch
  • Charge rate / power on LED indicator light

Specifications

Dimensions (May Vary by Model)
Width2"
Height7.625"
Length18.625"
Weight8.00 lb

What's included?

  • Green LED Connecticut Exit Sign
  • Two "EXIT" with ISA Faceplates
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation

  • Construction

    The EXCT-G Exit Sign offers durable extruded aluminum housing with a white powder coat finish.

    Illumination

    The EXCT-G Exit Sign uniform illumination is achieved by use long-lasting, efficient ultra bright green LEDs.

    Emergency Operation

    Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

    Battery - Battery Backup

    The EXCT-G Exit Sign is designed with a maintenance-free 3.6V 300mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

    Operational Temperature

    Temperature Ratings
    Standard Option 14°F to 113°F

    Electrical Components

    Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry. Operation Temperature range -10°C to 45°C / 14°F to 113°F

    Installation

    The EXCT-G Exit Sign is suitable for surface wall, side, and top mounting via included canopy. Universal mounting pattern on back faceplate allows for easy surface mounting to a j-box. Field selectable Chevron Arrows are included.

    Mounting Configurations   Mounting Configurations Explained

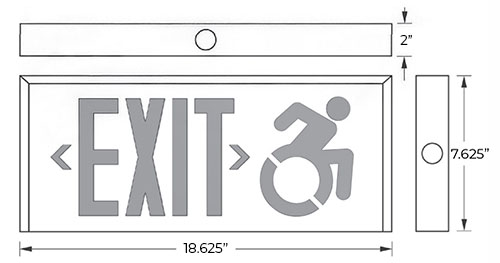

    Dimensions

    Connecticut Approved Green LED Exit Sign | Wheelchair Accessibility Symbol Dimensions
