Electroluminescent Edge Lit Exit Sign | Aluminum Frame

Base Code: LEC-EDGE

Items marked FAST SHIP typically ship same day if order is placed before noon

Electroluminescent Edge Lit Exit Sign | Aluminum Frame

Get Help

Lead Time: 1-2 Week


Introducing the LEC-EDGE: a sleek, energy-efficient exit sign with an architectural finish. Crafted with state-of-the-art electroluminescent technology, this sign emits a dazzling, uniform glow, all while consuming significantly less energy than traditional LED options. Elevate your emergency signage with the LEC-EDGE, offering unmatched brightness and efficiency, and setting a bold new standard in safety illumination.
This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

Electroluminescent Lighting

The most energy efficient lighting source requiring a power supply.

Made in the USA

Made in the USA
This unit is made in the United States.


  • UL 924, NEC, LEED, and NFPA 101 Life Safety Code
  • Made in USA
  • Electroluminescent powered
  • Less than 1/5 watts energy draw
  • 120/277 VAC operation
  • Impact and scratch resistant polycarbonate/ABS housing
  • Voltage surge protected


Dimensions (May Vary by Model)
Weight4.00 lb

What's included?

  • LEC-EDGE Exit Sign
  • One "EXIT" Faceplate (with optional knockout arrows)
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation


The LEC-EDGE Electroluminescent Exit Sign is contructed from an impact and scratchresistant polycarbonate/ABS blend. Housing is UV stable and flame retardant.


Electroluminescent exit signs are powered by electroluminescence using LECs (light emitting capacitors) and “smart” driver technologies. The lamps themselves are less than half the thickness of a credit card contributing to the ultra-thin design of the sign. See page 1 for additional info on LEC technology.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 120 minutes. Recharging a discharged battery happens within 24 hours.

Battery - Battery Backup

The LEC-EDGE Electroluminescent Exit Sign is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 120 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Series Temperature
Standard Option-40°F to 140°F

Electrical Components

Dual voltage 120/277 input operation with built-in surge protection. For battery backup units, a LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine operational status.


The LEC-EDGE is suitable for surface wall, side and top mounting via included canopy. Knock-out chevrons for customized egress signage.

Mounting Configurations   Mounting Configurations Explained

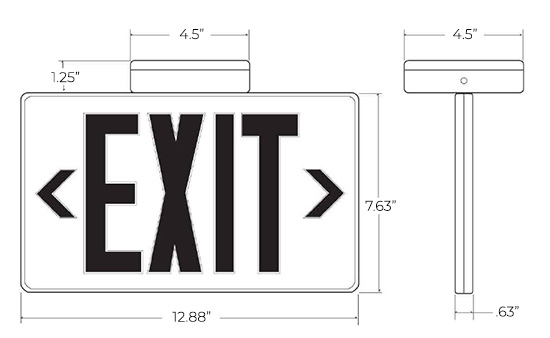

Electroluminescent Edge Lit Exit Sign | Aluminum Frame Dimensions
