Modern Design Universal Red and Green LED Exit Sign | Easy Installation | White Housing
Base Code: LEDJR-U
Items marked FAST SHIP typically ship same day if order is placed before noon
$21.00
A modern, energy effecient UL Listed LED Exit Sign with field selectable Red or Green letters and LEDs. This unit works on either a 120VAC or 277VAC and includes a backup battery providing up to 90 minutes of power during an emergency. A left and right arrow can be knocked out from the faceplate to point to the exit direction. A universal mounting bracket allows for easy mounting from the top or sides. This exit sign is pre-assembled and shipped single sided with an additional EXIT faceplate included in the box for optional manual assembly.
Compatible Battery: 1.2V 1000mAh Ni-MH
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC and NFPA 101 Life Safety Code
- Listed for damp location
- Field selectable Red or Green LEDs
- Single or Double Side Configuration
- Push-to-test switch
- 120 or 277 VAC operation
- Injection-molded, VO flame retardant, high impact housing
- Charge rate / power on LED indicator light
- Universal mounting canopy for top or side installation
Specifications
| Dimensions (May Vary by Model) | |
| Width | 1.8" |
| Height | 7.2" |
| Length | 11.6" |
| Weight | 0.00 lb |
What's included?
- LED Exit Sign
- Two "EXIT" Faceplates (with optional knockout arrows)
- 2 Red Diffusers and 2 Green Diffusers
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
- Ni-Mh Battery - Must connect the battery after installation
Construction
The LEDJR-U Exit Sign is constructed from injection molded, V-0 flame retardant, high impact thermoplastic housing.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The LEDJR-U Exit Sign is designed with a maintenance-free 1.2V 1000mAh Ni-MH battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
Operational Temperature
| Temperature Ratings | |
| Battery Backup | 32°F to 104°F |
Electrical Components
Dual voltage input of 120/277VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid-state circuitry.
Electrical Specifications
| Series | Input Voltage | Power Consumption | Current | Discharge Duration | |
|---|---|---|---|---|---|
| LEDJR-U | 120/277VAC 60Hz | 1W |
95mA | 90 Minutes | |
Installation
The LEDJR-U Exit Sign is suitable for surface wall, side, and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained
View Installation Instructions

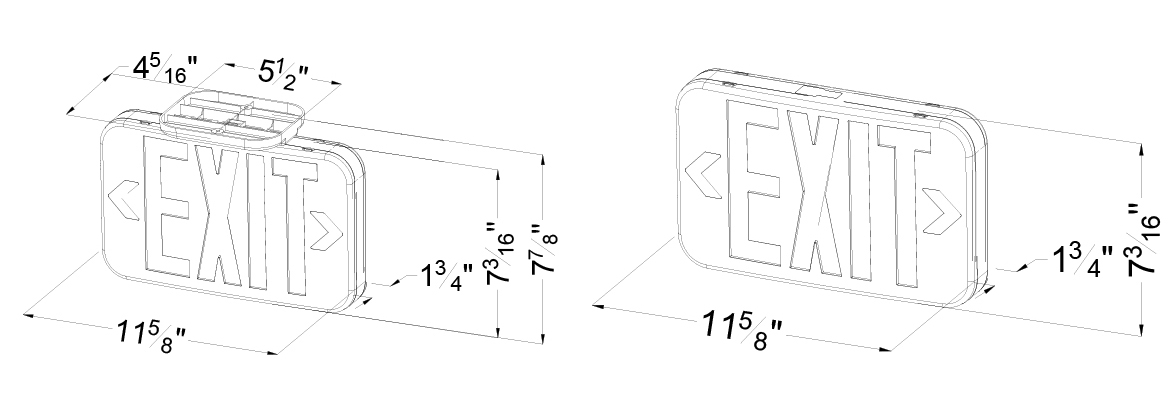

Dimensions
