LED Running Man Exit Sign

Base Code: ELCLEDRM


LED Running Man Exit Sign
Processing...

Get Help
Qty
The LEDRM is a popular Canadian Running Man Exit Sign that combines a low profile traditional design and dependable LED lighting illumination for an attractive and affordable solution. Meets or exceeds CSA C22.2 No. 141.10

Compatible Battery: BAA-96 - Battery AA NiCAD 9.6V 700mAh - 2x4 Inline (2 Per Pack)

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This unit uses energy effecient and long lasting LED's.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.

Features

  • Push-to-test switch
  • 120 or 347 VAC operation
  • Injection-molded, VO flame retardant, high impact housing
  • Charge rate / power on LED indicator light
  • Long life, energy saving LED lamps
  • Listed for damp location
  • Universal mounting canopy for top or side installation
  • Maintenance-free NiCad battery 9.6V 700mAh
  • CSA Listed
  • Replacement battery BAA-496 (see related products)
  • 3-5 Day Lead Time

Previous Product Codes: LEDRM

Specifications

Dimensions
Width12"
Height7.93"
Depth2"
Weight5.00 lb

Whats included?

  • LED Running Man Exit Sign
  • Three Running Man Pictograph Faceplates (No Arrow, Left Arrow, Right Arrow)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • NiCad Battery - Must connect the battery after installation

Construction

The ELCLEDRM series is contructed from injection molded, 5VA flame retardant, high impact thermoplastic housing. White housing is standard.

Illumination

The ELCLEDRM series illumination is achieved by use long-lasting, efficient ultra bright red or green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The ELCLEDRM series is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 32°F (0°C) to 122°F (50°C).

Self-Testing Option

Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform testing for five minutes every 28 days and 90 minutes every six months.

Electrical Components

Dual voltage input 120/347 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The ELCLEDRM is suitable for surface wall, side and top mounting via included canopy. Snap together design allows for quick and easy installation. Left, Right, and No Arrow pictogram legends included.

PDF Download   View Installation Instructions

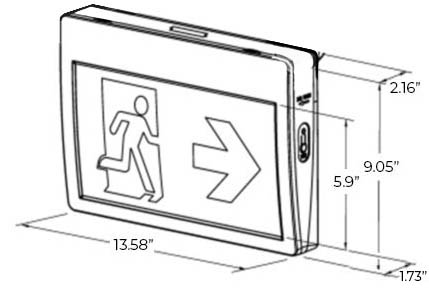

Dimensions

LED Running Man Exit Sign Dimensions
