Vandal Resistant Green LED Exit Sign | Wet Location

Base Code: LEDVR-G


Vandal Resistant Green LED Exit Sign | Wet Location
Processing...
$240.00

Get Help

Lead Time: 5-6 Weeks

Qty

Vandal resistant exit sign is designed to stand up to high abuse areas such as correctional facilities, schools, apartment complexes, and public areas that may be subject to vandalism. The extreme duty, heavy gauge, die cast aluminum housing and high abuse polycarbonate faceplate offer the ultimate protection and performance.
US ETL

ETL US
This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States.

LED Lighting

LED Lighting
This unit uses energy effecient and long lasting LED's.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.

Features

  • CSA, ETL,IP66 & Title 20
  • Listed for wet and hose-down location
  • Since this item is made to order, please expect a 6 week lead time
  • Sealed nickel-cadmium battery: Provides a minimum of 90-minutes emergency operation
  • 120/277/347 VDC input
  • Constructed from .420 thick, heavy duty-cast aluminum
  • High abuse clear polycarbonate shield
  • Field selectable chevrons
  • Standard operating temperature: 32°F to 113°F (0°C to 45°C)
  • Optional cold-weather feature: -40°F to 113°F (-40°C to 45°C)
  • Allows for wall/flush, ceiling, and flagpole/end installation

Specifications

Dimensions
Width14"
Height9"
Depth4"
Diameter1"
Weight12.00 lb

Whats included?

  • GREEN LED Exit Sign
  • One "EXIT" Faceplate (with optional knockout arrows)
  • One Blank Faceplate
  • Second "EXIT" Faceplate (extra cost)
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation

Construction

The ultra heavy duty design and appearance of the LEDVR-G series exit warns potential vandals that this is no regular sign. The stencil is protected by a 1/8” thick, impact resistant polycarbonate shield that is recessed into the housing and fastened with 4 tamper resistant screws. Polycarbonate lens is UV stabilized but some discoloration may occur over time if installed in direct sunlight. The LEDVR offers a contemporary look and durability like no other.

Illumination

The LEDVR-G series uses ultra bright, energy efficient red or green LEDs.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The LEDVR-G series is designed with a maintenance-free, sealed Nickel-Cadmium battery providing a minimum emergency duration of 90 minutes.  The battery operating temperature without the internal heater option is 32°F to 113°F; with the internal heater (IH) option the minimum battery operating temperature is -40°F to 113°F.

Operational Temperature

Temperature Ratings
Series Temperature
Standard Option 0°C to 45°C / 32°F to 113°F
Expanded Temperature Rating-40°C to 45°C / -40°F to 113°F

Electrical Components

The LEDVR-G has a 120/277V input. Solid state charger, auto-test, and transfer are standard on self powered units. The self powered version comes standard with an external LED status indicator and test switch.

Installation

The LEDVR-G is suitable for surface wall and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-outs provided for conduit feed applications.  Perforated chevron arrows allow for on-site setup.

Mounting Configurations   Mounting Configurations Explained

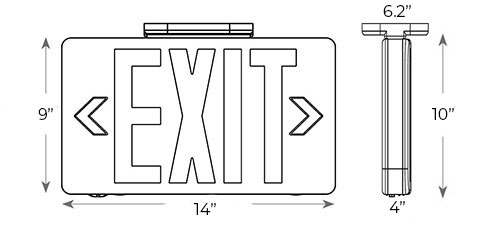

Dimensions

Vandal Resistant Green LED Exit Sign | Wet Location Dimensions
