8" NYC Red LED Edge Lit Exit Sign | Recessed Mount Ceiling or Wall Installation
Base Code: NYCELR-R
Items marked FAST SHIP typically ship same day if order is placed before noon
$105.00
Experience the versatility of our latest design: the NYCELR-R, now featuring a dual mounting capability for both ceilings and walls using the same unit. Maintain a uniform installation aesthetic with our sleek, premium grade extruded aluminum housing and UV-stabilized ultra-clear acrylic paneling, creating an elegant and architecturally appealing exit sign. Approved by New York City code, this exit sign comes with a recessed box design for sleek installation and tight spots. The field-installable, peel-off directional arrows allow for versatile placement in all applications.
Note: AC-only units are typically installed in facilities equipped with a generator, as these units do not include battery backup power.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- New York City Approved
- Ceiling and Wall Mount Installation
- 8" Letters
- Universal arrow mounts
- AC On indicator light and push-to-test switch (battery backup models)
- 120/277V operation
Specifications
| Dimensions (May Vary by Model) | |
| Width | 17.6" -18" |
| Height | 8.8"-10" |
| Depth | 2.8"-4.5" |
| Weight | 12.00 lb |
What's included?
- Red 8" Letters LED Recessed Mount Exit Sign
- Clear Single Sided "EXIT" Faceplate (with optional adhesive arrows)
- Mirrored Double Sided "EXIT" faceplate (extra cost)
- Installation Instructions & Hardware
- Battery - Must connect the battery after installation
Construction
The NYCELR-R Edge Lit Exit Sign is constructed from premium-grade, extruded aluminum housing. The trim assembly is easily detachable from below, providing accessibility for service or maintenance. Standard housing finish is aluminum. Also available with white or black housing finish.
Emergency Operation
Battery backup and remote head capable models, upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 180 minutes - 90 minute runtime if remote head lamps are connected to the unit.
Self-testing and special voltage models, upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The NYCELR-R Edge Lit Exit Sign battery backup and remote head capable model is designed with a 3.6V 1800mAh Ni-MH maintenance-free battery that provides a minimum emergency duration of 90 minutes.
Self-testing and Special voltage models are equipped with a 4.8V NiCad maintenance-free battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
Operational Temperature
| Temperature Ratings | |
| BB, RH, and AC | 41°F to 104°F |
| ST and SV | 32°F to 122°F |
Self-Testing Option
Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.
Electrical Components
Dual voltage input 120/277 VAC operation. Special voltage 208/220/240V 50/60Hz also available. LED display indicates AC/ON. An external push button test switch on battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
Installation
Battery Backup, Remote Head Capable and AC Only models are suitable for both recessed ceiling and wall mount installation. Compatible with drywall or drop ceiling applications; all hardware is included.
Self-testing and Special Voltage models are suitable for ONLY recessed ceiling mount installation. Compatible with drywall or drop ceiling applications; all hardware is included.
Mounting Configurations Explained

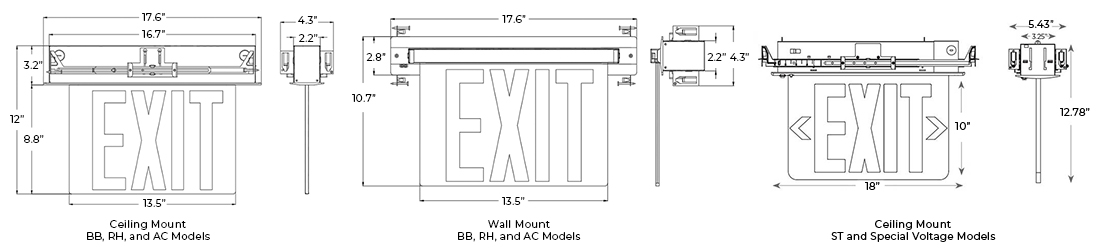

Dimensions
