Thermoplastic Photoluminescent Exit Signs | 100' Viewing Distance

Base Code: PA3-100

Items marked FAST SHIP typically ship same day if order is placed before noon

Thermoplastic Photoluminescent Exit Signs | 100' Viewing Distance
Processing...
$110.00

Alternative Product: Double Sided Options: PA2 or PA3

Qty

Leading the industry in zero-energy egress systems, these exit signs utilize the latest photoluminescent technology to absorb and store ambient light. In the event of an emergency with blackout or smoky conditions this stored energy is immediately visible, creating a clearly recognizable, photoluminescent egress indicator. These innovative emergency egress signs reduce the risk of panic or injury during an evacuation, offering peace of mind while eliminating energy costs.


This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

Photoluminescent Glow In the Dark Lighting

Photoluminescent
This product uses long lasting, electricity free Photoluminescent Lighting (Glow in the Dark) Technology.

This unit does not require use of electricity or a battery

No Electricity
This unit doesn't require electricity or a battery.

Features

  • UL 924 and NFPA 101 Life Safety Code
  • Zero energy consumption
  • Zero maintenance - no bulbs or battery replacement
  • Non-toxic, non-radioactive
  • Mounting Options: Wall, Ceiling, and Side
  • Consistent, uniform illumination, 100' visibility
  • Life Expectancy 20 years
  • Operating Temperature 50°F to 104°F
  • Explosion proof
  • Indoor/Outdoor installation
  • No future hazmat disposal needed

Specifications

Dimensions (May Vary by Model)
Width17.25"
Height9.75"
Depth0.75"
Weight8.00 lb

What's included?

  • Photoluminescent Exit Sign (Red or Green)
  • Mounting Canopy and hardware
  • Installation Instructions and Manual

Construction

The PA3-100 Series Exit Sign has a thin, low profile construction with ABS thermoplastic paneling and photoluminescent lettering. This wire-free exit sign is high durability, non-toxic, non-radioactive and has a life expectancy of 20 years.

Illumination

Provides consistent, uniform illumination at 100 foot viewing distance.

Emergency Operation

Upon failure of the normal utility power the PA3 exit sign will provide at least 90 minutes of illumination. *The sign must be charged for a minimum of 90 minutes to become fully operational.

Battery - Battery Backup

The PA3-100 Series Exit Sign has a thin, does not require any type of battery connection.

Electrical Components

The PA3-100 Series Exit Sign does not require any type of electrical components.

Installation

The PA3-100 Series Exit Sign series is suitable for wall mount, ceiling mount, and side mount. Typical ambient lighting is usually sufficient to charge the exit sign. Ambient light levels at sign location should be measured with a light meter to confirm that 5 foot-candles (54 lux) is present on exit sign face(s). There must be a minimum of 5 foot-candle (54 lux) on exit sign face(s) of LED, fluorescent, metal halide or mercury vapor light. *Double Sided Options is not available at this time. This sign is suitable for both indoor and outdoor installations. However, prolonged exposure to direct sunlight in outdoor settings may lead to some discoloration, particularly in signs with plastic components. The photoluminescence of the lettering itself is not expected to be significantly affected by sunlight exposure.

Mounting Configurations   Mounting Configurations Explained

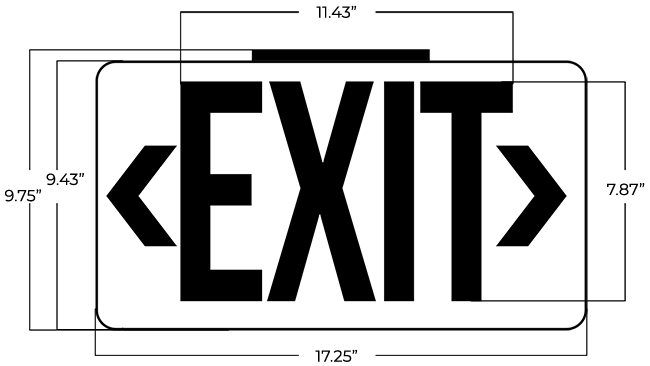

Dimensions

Thermoplastic Photoluminescent Exit Signs | 100' Viewing Distance Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q DAVID THOMPSON • 08/16/2023, 1:47:59 PM Are these signs exterior rated?
A Exit Light Co. Yes, these signs can be installed outdoors and can be exposed to sunlight.
