Photoluminescent Running Man | 'Final Exit' Sign

Base Code: ELCPFE


Photoluminescent Running Man | 'Final Exit' Sign
Processing...


Qty
A simple way to add additional emergency egress signage. Meets stringent New York City safety codes (New York City Building Code Reference Standard RS 6-1 & 6-1A and Local Law 26 of 2004). Indicates direction of travel to be "Down and Left" for means of egress (fulfills RS 6-1 2.2.6 & 2.2.7).

These signs can be easily placed on any flat surface using double-sided tape (not included). No electricity or battery required. Under normal lighting conditions, these signs are highly visible. In the event of low (or absence of) lighting due to power failure the signs will "glow-in-the-dark" (Signs must be "charged" to glow, requires exposure to 54 LUX (5-ft candles) of LED, fluorescent, metal halide or mercury vapor light illumination).
Photoluminescent Glow In the Dark Lighting

Photoluminescent
This unit uses long lasting, electricity free Photoluminescent Lighting(Glow in the Dark) Technology.

This unit does not require use of electricity or a battery

No Electricity
This unit doesn't require electricity or a battery.

Features

  • Meets New York City Building Code Reference Standard RS 6-1 & 6-1A and Local Law 26
  • Easy to mount
  • Emergency Egress/Safety Sign
  • Explosion proof semi-rigid plastic
  • No power or wiring required
  • Requires continued exposure to at least 54 LUX illumination
  • Indoor use only

Previous Product Codes: PFE

Specifications

Dimensions
Width8"
Height11"
Depth0.625"
Weight2.00 lb

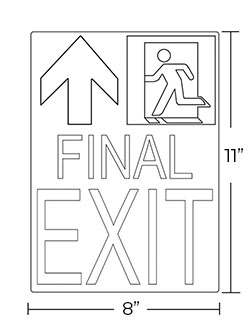

Photoluminescent Running Man | 'Final Exit' Sign Dimensions

Construction

This photoluminescent Egress Sign is constructed with non-toxic, non-radioactive Glo Brite ® photoluminescence technology.

Illumination

Under normal lighting conditions, these signs are highly visible. In the event of low or no lighting due to power failure, the lettering on the signs will "Glow in the Dark". (Signs must be "charged" to glow -- requires 54 LUX (5ft candles) of fluorescent, metal halide or mercuty vapor light illumination for 60 minutes).

Emergency Operation

Upon failure of the normal utility power, this unit will provide at least 90 minutes of illumination.  *This sign must be charged for a minimum of 60 minutes prior to being fully operational.

Installation

No electricity or battery required.  These signs can be easily placed on any surface using double-sided tape (not included).

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions
