Decorative Cast Aluminum LED Remote Head | Indoor-Outdoor | 1W-3W Selectable | 100-300 Lumen
Base Code: RHDEC-WPL
Items marked FAST SHIP typically ship same day if order is placed before noon
$35.00
The RHDEC-WPL connects to compatible remote head-capable units to extend emergency egress lighting coverage—delivering both style and performance in a durable, compact design. Measuring just 5"x5", this sleek Decorative LED Remote Head is built for both indoor and outdoor use, featuring a rugged die-cast aluminum housing with an anti-UV coating, a protective polycarbonate shield, and a fully gasketed enclosure that makes it ideal for wet location areas. Designed for wall-mount installation only, it operates on an input voltage of 3–12V and offers field-selectable lumen output via a toggle switch: 1V (100 lumens), 2V (200 lumens), or 3V (300 lumens). Available in three finishes—dark bronze, white, and black—the RHDEC-WPL blends seamlessly into any architectural or commercial setting.
*This is a remote head only. Requires a compatible remote head capable egress fixture for operation.
Compatible Models:
Exit Signs:
ELR Series
Emergency Lights:
IPX6 Rated
This unit is rated to IPX6 standards to resist ingress of dust and pressurized water.
Features
- IP65 Listed for Damp or Wet Location
- IK08 Rated
- 3-12VDC Input
- 100-300 Lumen Output
- Die cast aluminum housing
- UV stabilized polycarbonate lens and housing
- Fully Gasketed Housing
Specifications
| Dimensions (May Vary by Model) | |
| Height | 5" |
| Depth | 2.1" |
| Length | 5" |
| Weight | 10.00 lb |
What's included?
- Decorative LED Remote Head
- Installation Instructions & Hardware
Construction
The RHDEC-WPL Decorative Remote Head features a durable die-cast aluminum housing with an anti-UV protective coating to withstand harsh environments. Its fully gasketed construction ensures reliable performance in wet location areas, while a clear polycarbonate shield safeguards the internal LEDs from impact, moisture, and debris.
Illumination
The RHDEC-WPL is equipped with three high-performance smart LEDs, delivering field-selectable illumination levels to suit various application needs. Using a built-in toggle switch, users can choose between 100 lumens (1W), 200 lumens (2W), or 300 lumens (3W)—offering flexible, energy-efficient lighting tailored to the specific emergency egress requirements.
Emergency Operation
In the event of a power failure, the RHDEC-WPL draws power from the connected remote head-capable unit to provide emergency illumination. The duration of illumination depends on the battery capacity and load capability of the connected fixture, ensuring flexible operation tailored to the supporting unit's specifications.
Operational Temperature
| Temperature Ratings | |
| Standard Option | -22°F to 122°F |
Photometrics
Total Luminaire Lumens :
1V (100 lumens)
2V (200 lumens)
3V (300 lumens)

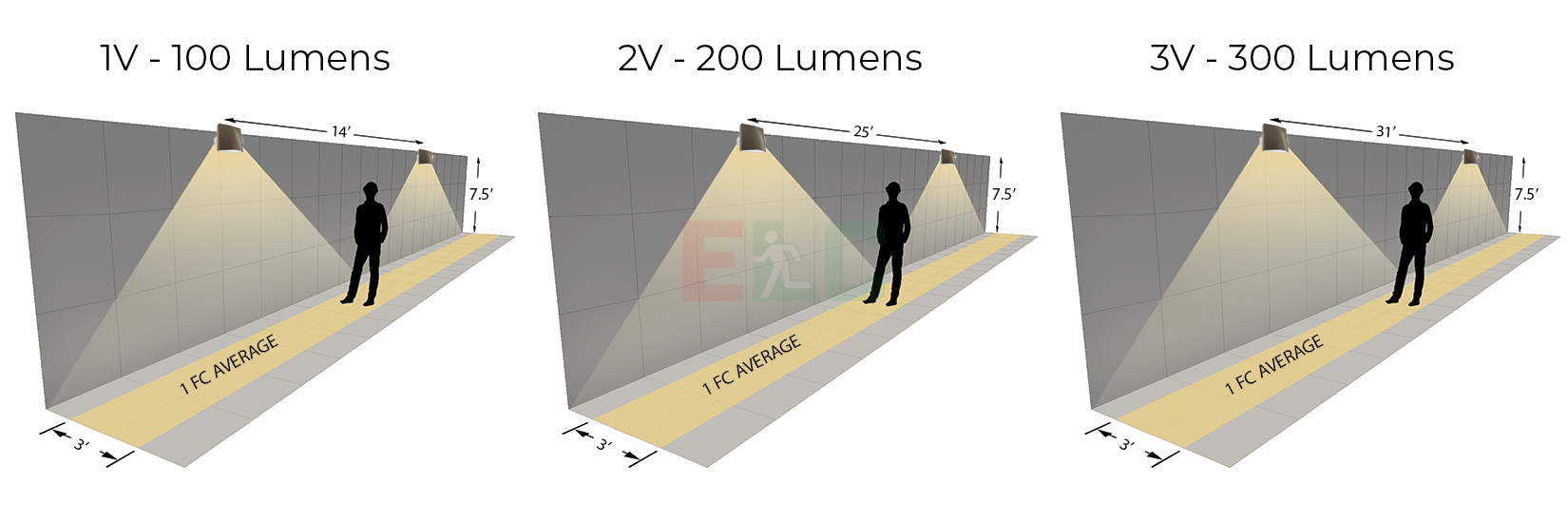

A suggested mounting height of 7.5 ft provides 1 footcandle (FC) of illumination when spaced at:
-
14 ft using the RHDEC-WPL-1W
-
25 ft using the RHDEC-WPL-2W
-
31 ft using the RHDEC-WPL-3W
At a mounting height of 10 ft, 1 FC is achieved when spaced at:
-
11 ft using the RHDEC-WPL-1W
-
21 ft using the RHDEC-WPL-2W
-
27 ft using the RHDEC-WPL-3W
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Electrical Components
The RHDEC-WPL Decorative Remote Head is designed for compatibility with 3–12VDC remote head-capable units and operates at a maximum power consumption of 3 watts. This low-power design ensures efficient performance while providing reliable emergency illumination.
Installation
The RHDEC-WPL is designed for wall-mount installation only and features a fully gasketed rear surface to ensure a watertight seal in wet location environments. The back plate includes integrated knockouts, allowing for safe and convenient routing of installation wiring, while maintaining a secure and weather-resistant connection.
Mounting Configurations Explained

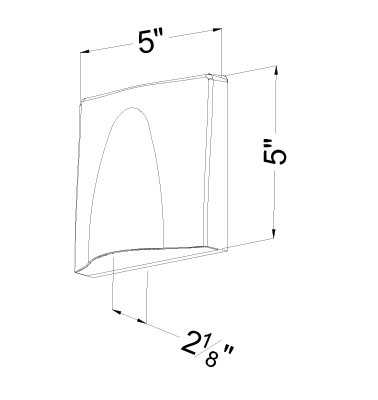

Dimensions
