Universal Red/Green Wet Location LED Combo Exit Sign | Exterior Wall, Ceiling, & Side Mount
Base Code: WLTCOMBO-U
Items marked FAST SHIP typically ship same day if order is placed before noon
$65.00
The WLTCOMBO-U is a wet-listed LED exit sign and emergency light combo designed for reliable performance in demanding indoor and outdoor environments. Featuring a fully gasketed, weather-resistant design, it protects against moisture and harsh conditions while providing clear, code-compliant egress visibility and emergency illumination. The WLTCOMBO-U includes a red/green selectable LED EXIT legend with a convenient toggle switch, along with adjustable LED emergency lamps mounted on top delivering a total of 480 lumens. Designed for wall or side mounting only, and powered by a long-life LiFePO4 battery, the WLTCOMBO-U is ideal for commercial and industrial wet-location applications requiring a durable all-in-one exit and emergency lighting solution.
Compatible Battery:
The Self-Testing model includes a 3.2V 2000mAh battery. Remote head capable model is equipped with a 6.4V 2000mAh battery.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC and NFPA 70, and 101 Life Safety Code
- Compliant CEC Title 20
- Listed for wet location
- Field Selectable Red/Green LEDs
- Suitable for side and wall mount installations
- Push-to-test switch
- 120-277VAC 50/60Hz operation
- Extremely low operating costs
- Removable directional indicators
- 5VA Flame retardant, UV stabilized polycarbonate enclosure
- Maintenance free LiFePO4 battery
Specifications
| Dimensions (May Vary by Model) | |
| Width | 2.5" |
| Height | 14" |
| Length | 13" |
| Weight | 10.00 lb |
What's included?
- Wet Listed LED Combo Exit Sign
- Two "EXIT" Faceplate (with optional knockout arrows)
- 2 Red and 2 Green Diffusers
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware
- LiFePO4 Battery - Must connect the battery after installation
Construction
The WLTCOMBO-U features a durable polycarbonate housing with a waterproof design, making it suitable for wet-location installations. Its compact, decorative enclosure is constructed from UV-resistant, 5VA flame-retardant plastic and assembled with stainless steel screws for enhanced corrosion resistance. The housing is also designed with an integrated touch test sensor, eliminating the need for a traditional push-to-test button. The WLT-U is available in universal single- or double-face configurations and includes 6-inch EXIT letters with a 3/4-inch stroke for a 100-foot viewing distance. Snap-in/snap-out directional chevrons are included for fast field installation.
Illumination
The WLTCOMBO-U features a field-selectable Red or Green LED EXIT sign with a matched color diffuser for clear and uniform illumination. The unit is factory defaulted to Red, allowing for quick installation while providing easy color selection in the field. The combo model includes two fully adjustable LED emergency lamps that deliver a total output of 480 lumens.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The WLTCOMBO-U is equipped with a 3.2V 2000mAh battery for the battery backup and self-testing models, providing a minimum emergency duration of 90 minutes. The remote head capable option includes a 6.4V 2000mAh battery for improved performance in low-temperature environments. The battery system is maintenance-free, fully rechargeable within 24 hours, and protected by a low-voltage cut-off circuit to prevent deep discharge and extend battery life.
Operational Temperature
| Temperature Ratings | |
| Series | Temperature |
| STS Option | 41°F to 122°F |
| AC / Cold Weather | -4°F to 122°F |
Photometrics
Total Luminaire Lumens : 480lm
Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 58ft for a 3ft path of egress.Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 53ft for a 3ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Self-Testing Option
Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.
Remote Head Capable Option
The WLTCOMBO-U remote head capable model is designed to support constant power remote emergency heads for expanded illumination coverage. When used with a compatible constant power driver, the total remote head load must not exceed 1.5W.
Electrical Components
The WLTCOMBO-U supports optional 120–277VAC, 50/60Hz input voltage and is equipped with brownout circuit protection for reliable operation during unstable power conditions. Additional safety features include battery low-voltage protection and a solid-state transfer circuit for seamless transition to emergency mode. The unit includes a test switch and battery charging indicator for easy monitoring and maintenance. Powered by a maintenance-free LiFePO4 battery, the WLT-U provides more than 90 minutes of emergency operation with a full recharge time of 24 hours.
Electrical Specifications
| Series | Input Voltage | Power Consumption | Current | Discharge Duration |
|---|---|---|---|---|
| WLTCOMBO-U-STS | 120-277VAC 50/60Hz | 3.5W | 45mA | 90 Minutes |
| WLTCOMBO-U-RH | 120-277VAC 50/60Hz | 4.5W | 70mA | 90 Minutes |
| WLTCOMBO-U-STS-CW | 120-277VAC 50/60Hz | 4W | 60mA | 90 Minutes |
| WLTCOMBO-U-RH-CW | 120-277VAC 50/60Hz | 4.5W | 70mA | 90 Minutes |
Installation
The WLTCOMBO-U is suitable for side mo0unt and universal knockout pattern can be found on the blank faceplate for wall mount installations. Snap together design allows for quick and easy installation. Knock-outs provided for conduit feed applications. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained
View Installation Instructions

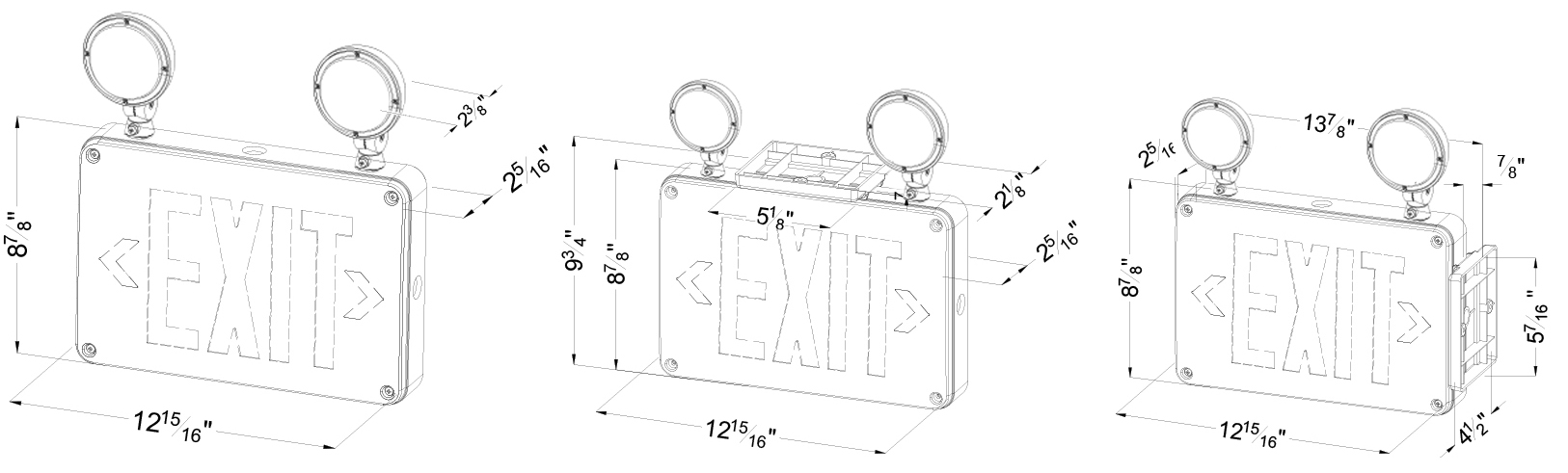

Dimensions
