Premium LED Exit Sign | Cast Aluminum | Red/Green & Operation Selectable | Installer Friendly
Base Code: CA-U
Items marked FAST SHIP typically ship same day if order is placed before noon
$110.00
The CA-U Cast Aluminum Exit Sign is a premium-grade solution designed for demanding commercial and institutional environments, offering exceptional durability, performance, and installation flexibility. Crafted from high-quality cast aluminum with a corrosion-resistant powder-coated finish, this exit sign is built to meet the rigorous standards of electrical engineers and architects. It features an integrated toggle switch that allows for field-selectable LED color—Red or Green—along with another onboard toggle switch that lets installers choose between Battery Backup and Self-Testing emergency operation modes. The unit is also available in an AC-Only version. For added versatility, the CA-U includes an extra faceplate and matching red and green diffusers, enabling single- or double-face configurations as needed. Installation is straightforward with the included universal mounting canopy, which supports surface wall, ceiling, or side mounting. Combining aesthetic appeal with robust construction, the CA-U is ideal for commercial buildings, hospitals, schools, airports, and upscale retail or hospitality spaces.
Protective Wire Guard: WGX-EX
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC, NFPA 101, and NFPA 70 Life Safety Code
- Compliant CEC Tiitle 20
- Listed for damp location
- Universal 120-277VAC Operation
- 3.2V 400mAh LiFePO4 Battery
- LED Energy savings
- Universal canopy included
- Spec grade cast aluminum housing
- Universal knock-out chevrons
- Push-to-test switch
- Charge rate / power on LED indicator light
Specifications
| Dimensions (May Vary by Model) | |
| Width | 12.81" |
| Height | 8.5" |
| Depth | 1.75" |
| Weight | 8.00 lb |
What's included?
- LED Exit Sign
- One "EXIT" Faceplate (with optional knockout arrows)
- One Blank Faceplate
- Red and Green Diffusers
- Mounting Canopy, Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation
Construction
The CA-U series sign features a compact, decorative design with a die-cast aluminum housing. Includes universal faceplates for both single and double face configurations, and displays 6-inch EXIT letter height with a 3/4-inch stroke and optional knockout chevron directional arrows.
Illumination
The CA-U series illumination is achieved using long-lasting, energy-efficient ultra-bright red or green LEDs. A color-matched diffuser eliminates hot spots and striations, ensuring optimal light distribution. The sign features a field-selectable red or green LED circuit board. The default factory setting is red.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The CA-U series is designed with a maintenance-free 3.2V 400mAh LiFePO4 battery that provides a minimum emergency duration of 90 minutes, with a full recharge time of 24 hours. By default, the CA-U series exit sign comes in Battery Backup operation mode; however, it can be easily switched to Self-Testing mode if needed (see the Self-Testing section for more information).
Operational Temperature
| Temperature Ratings | |
| STS (Battery Backup / Self-Testing) | 41°F to 122°F |
| AC Only (No Battery) | -13°F to 122°F |
Self-Testing Option
The CA-U exit sign features a unique internal toggle switch—accessible by removing the front cover—that allows the user to select Self-Testing operation mode. In this mode, the unit continuously monitors AC power, battery supply voltage, emergency lamp condition, and the charging circuit. If a fault is detected, the onboard indicator will display the issue and update the status once corrected. Additionally, unit also automatically performs the NFPA-required monthly and annual self-tests, providing reliable performance and simplifying code compliance. Refer to the user manual for detailed instructions.
Electrical Components
Universal voltage input of 120-277VAC with 50/60Hz operation. The unit features an LED display that indicates AC power status (AC/ON) and includes an external push-button test switch for quick operational checks of battery backup functionality. It utilizes surge-protected, solid-state circuitry and includes a trickle charge function once the battery is fully charged, as well as over-discharge protection to extend battery life and ensure long-term reliability.
Electrical Specifications
| Series | Input Voltage | Power Consumption | Current | Discharge Duration |
|---|---|---|---|---|
| CA-U-STS | 120-277VAC 50/60Hz | 1.2W |
22mA | 90 Minutes |
| CA-U-AC | 120-277VAC 50/60Hz | 1.2W | 22mA | No Battery |
Installation
The CA-U is suitable for surface wall, side and ceiling mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained

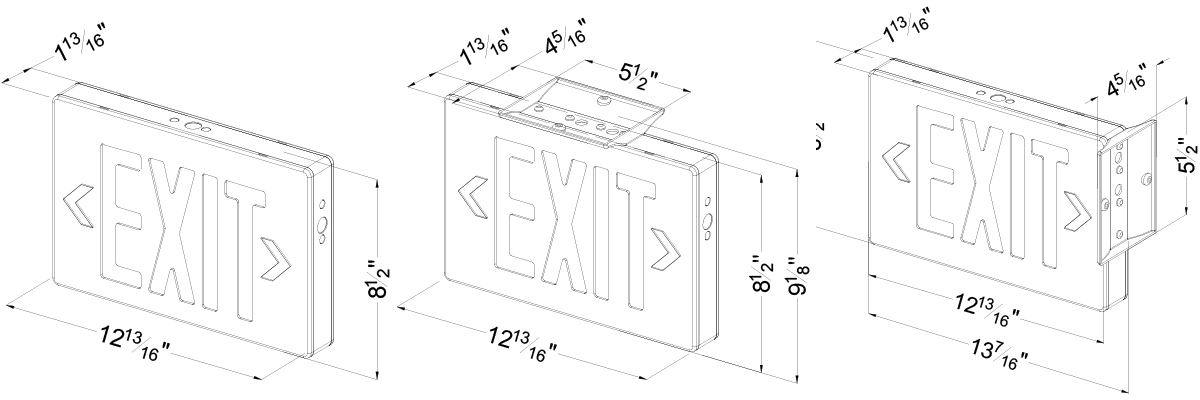

Dimensions
