Red LED Chicago Approved Combo Exit Sign | Adjustable Lamp Heads

Base Code: CHCO-R

Items marked FAST SHIP typically ship same day if order is placed before noon

Red LED Chicago Approved Combo Exit Sign | Adjustable Lamp Heads
Processing...
$109.00

Qty

You can’t miss this City of Chicago approved LED Combo exit sign with steel housing and silk screen glass face. The clean lines and fully adjustable led lamp heads make this unit a great pick. Glass faceplates come with artfully etched lettering; arrow options must be selected before adding unit to the cart. Operates at 120-277 VAC.  Includes maintenance-free NiCad battery, supplying 90 minutes of emergency lighting.

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Chicago City Approved

City of Chicago Approved
This product is approved for Chicago City.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • City of Chicago approved
  • Now uses LEDs for improved energy efficiency
  • Open-face glass panel, silk-screen letters
  • 20 gauge steel housing with white powder coat finish
  • Mounting Canopy for Side Mount
  • Integrated solid state system, lock out, low voltage battery cutoff, dual voltage 120/277

Specifications

Dimensions
Height16.1"
Depth3"
Length10.9"
Weight10.00 lb

What's included?

  • RED LED Combo Exit Sign
  • One "EXIT" Faceplate
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation

Construction

The CHCO-R series is contructed from durable 20-gauge steel with a white finish. Features a heat-tampered, impact-resistant glass lens.

Illumination

The CHCO-R Combo Exit Sign offers two adjustable metal lamp LED heads: 3.6VDC 1.8W(2).

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The CHCO-R series is designed with a maintenance-free battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Battery Backup 10°C to 40°C / 50°F to 104°F

Photometrics

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 39ft for a 3ft path of egress.

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 35ft for a 6ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

Red LED Chicago Approved Combo Exit Sign | Adjustable Lamp Heads Photometrics

Electrical Components

Univeral input 100-300 VAC 50HZ operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit.

Installation

The CHCO-R Combo Exit Sign is suitable for wall and side mount via steel mounting canopy (included). *This sign is not designed to be pendant mounted.

Mounting Configurations   Mounting Configurations Explained

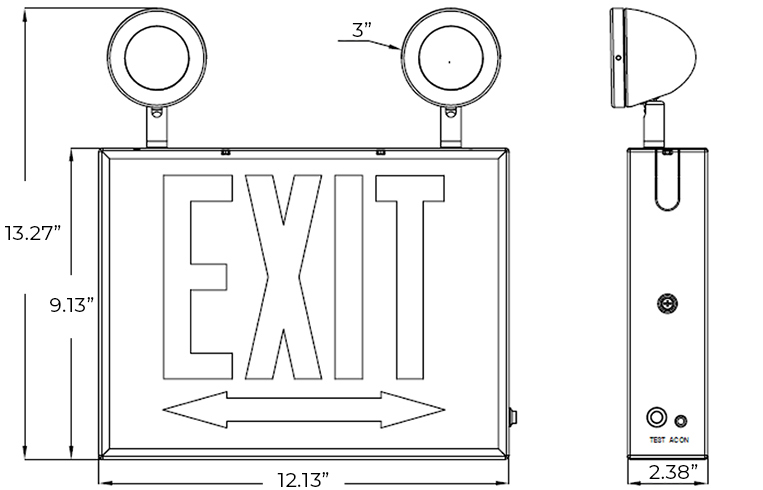

Dimensions

Red LED Chicago Approved Combo Exit Sign | Adjustable Lamp Heads Dimensions
